EH 18 V (46998) - Snapper Engine, Made by Robin Subaru, 6.5hp Fuel And Lubricant (Part I) Parts Diagram

Engine, Made by Robin Subaru, 6.5hp

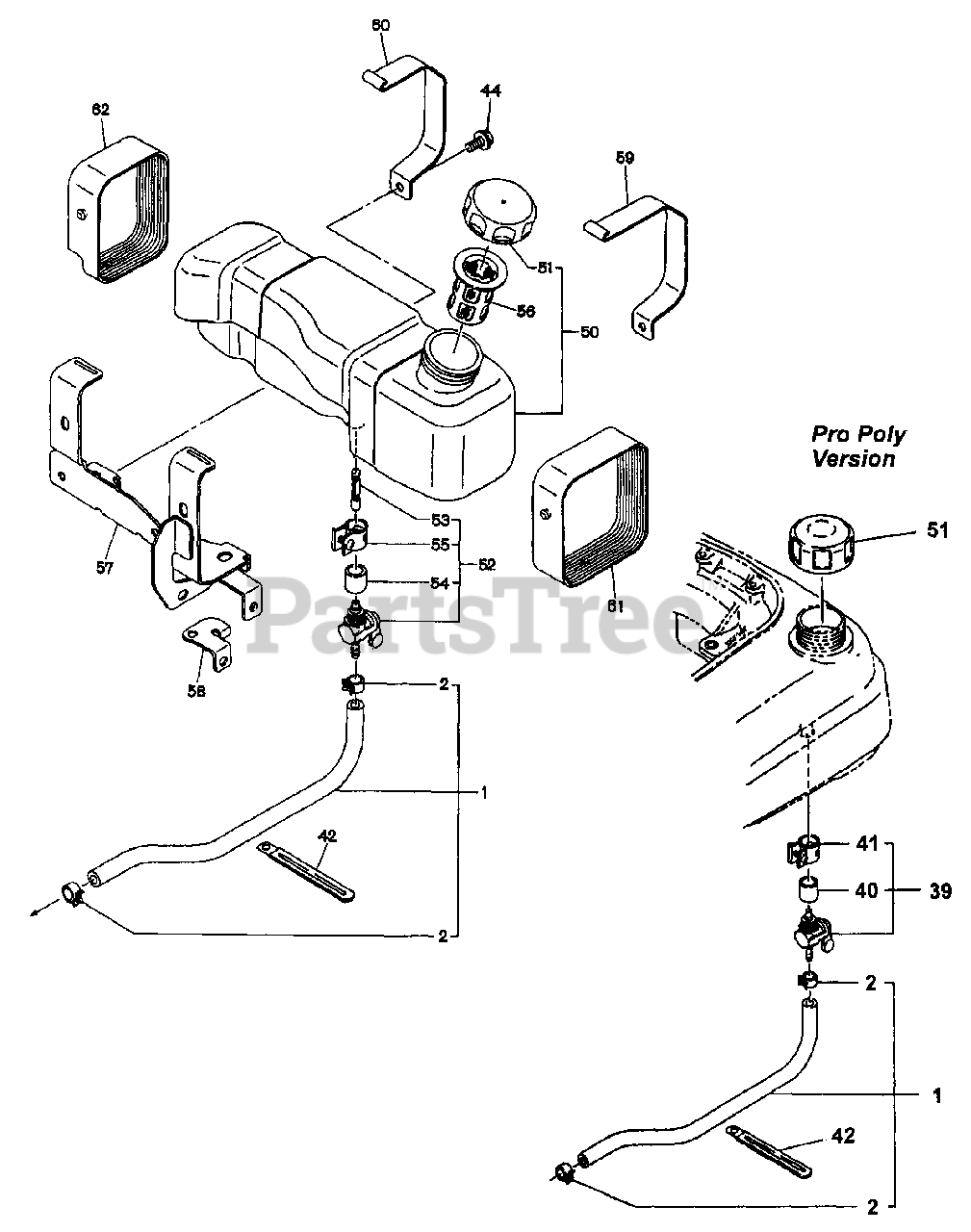

Fuel And Lubricant (Part I) Parts Diagram

  • Title
1

Snapper 226-62603-11

FUEL PIPE, compl.

Note: (Includes items 1 and 2)

$

$

Not available

1

Snapper 085-10600-00

RUBBER PIPE (6ø x 12ø X 400mm)

$

$

Not available

2

$

$

Not available

39

Snapper 064-70004-00

FUEL COCK ASS'Y

Note: (Include items 40)

$

$

Not available

40

$

$

Not available

41

Snapper 064-20044-61

HOSE BAND ASS'Y

$

$

Currently unavailable

$

$

Not available

44

Snapper 011-00600-20

FLANGE BOLT

$

$

Not available

50

Snapper 226-61401-01

FUEL TANK, compl.

Note: (Includes item 51)

$

$

Not available

51

Snapper 043-04401-32

FUEL TANK CAP, compl.

Note: Was 043-04400-80

$

$

Not available

52

Snapper 064-20044-02

FUEL STRAINER ASS'Y

Note: (Includes items 53-55)

$

$

Not available

$

$

Not available

54

$

$

Not available

55

Snapper 064-20044-60

HOSE BAND ASS'Y

$

$

Not available

56

Snapper 064-14200-20

FUEL FILTER

$

$

Not available

57

Snapper 261-62001-21

FUEL TANK BRACKET, compl.

Note: Was 261-62001-01

$

$

Not available

58

Snapper 261-65801-01

BRACKET, fuel tank

$

$

Not available

59

Snapper 226-65011-01

TANK BAND 1

$

$

Not available

60

Snapper 226-65012-01

TANK BAND 2

$

$

Not available

$

$
