EGR 6000 E - Shindaiwa Generator Oil Sensor, Solenoid Parts Diagram

Generator

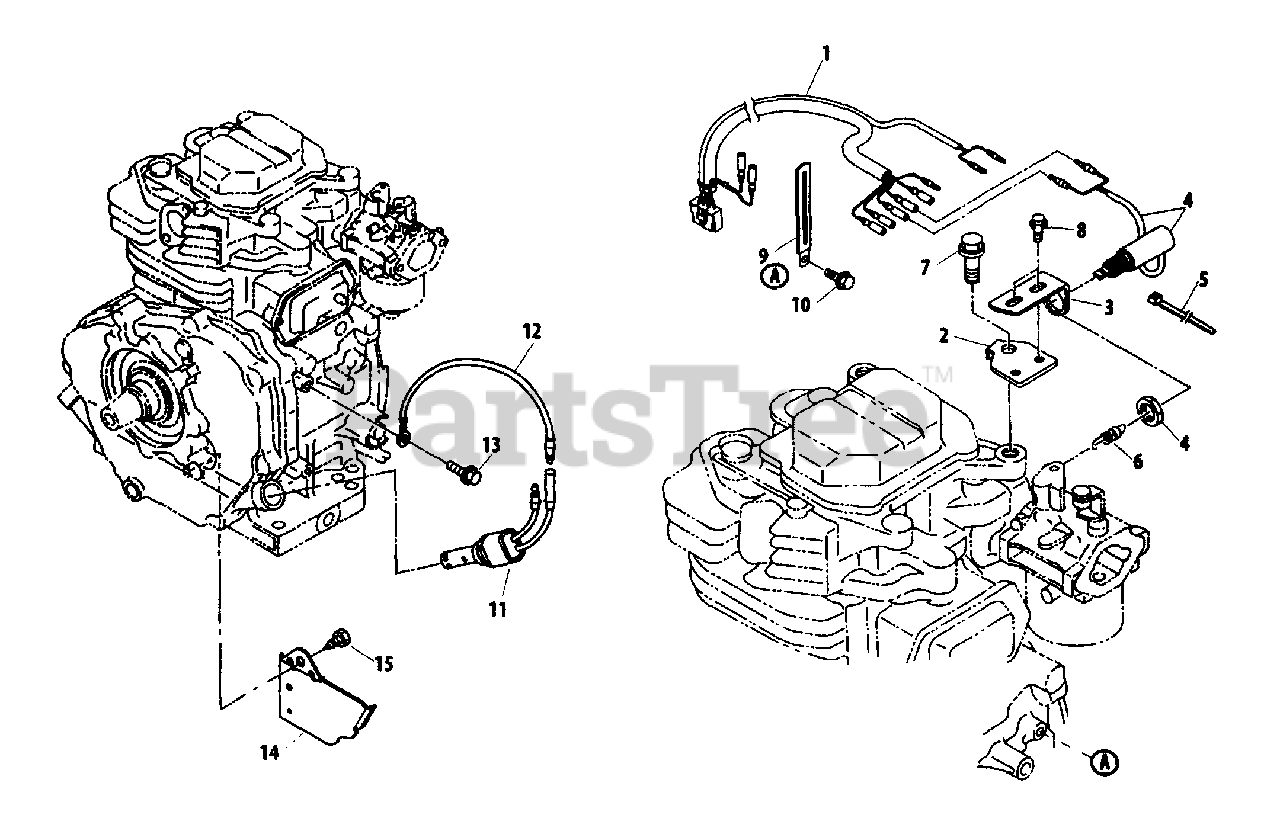

Oil Sensor, Solenoid Parts Diagram

  • Title
1

Echo 246-73119-11

WIRE - 19

Note: (Robin America part number)

$

$

Currently unavailable

2

Echo 246-76005-01

BRACKET, SOLENOID 1

Note: (Robin America part number)

$

$

Currently unavailable

3

Echo 246-76007-01

BRACKET, SOLENOID 2

Note: (Robin America part number)

$

$

Currently unavailable

5

Echo 056-30000-40

BAND

Note: (Robin America part number)

$

$

Currently unavailable

6

Echo 234-78202-13

SPRING (SOLENOID)

Note: (Robin America part number)

$

$

Currently unavailable

7

Echo 001-13102-00

BOLT

Note: (Robin America part number)

$

$

Currently unavailable

8

Echo 001-11061-11

BOLT

Note: (Robin America part number)

$

$

Currently unavailable

9

Echo 056-60002-50

CLAMP

Note: (Robin America part number)

$

$

Currently unavailable

10

Echo 011-00600-10

BOLT - FLANGE

Note: (Robin America part number)

$

$

Currently unavailable

11

Echo KS3-11012-01

OIL SENSOR ASSY

Note: (Robin America part number)

$

$

Currently unavailable

12

Echo 253-73103-01

WIRE - 3

Note: (Robin America part number)

$

$

Currently unavailable

13

Echo 011-00600-10

BOLT - FLANGE

Note: (Robin America part number)

$

$

Currently unavailable

14

Echo 246-17501-03

PLATE

Note: (Robin America part number)

$

$

Currently unavailable

15

Echo 015-20600-50

BOLT - TAPPING

Note: (Robin America part number)

$

$

Currently unavailable
