EGR 6000 E - Shindaiwa Generator Frame Parts Diagram

Generator

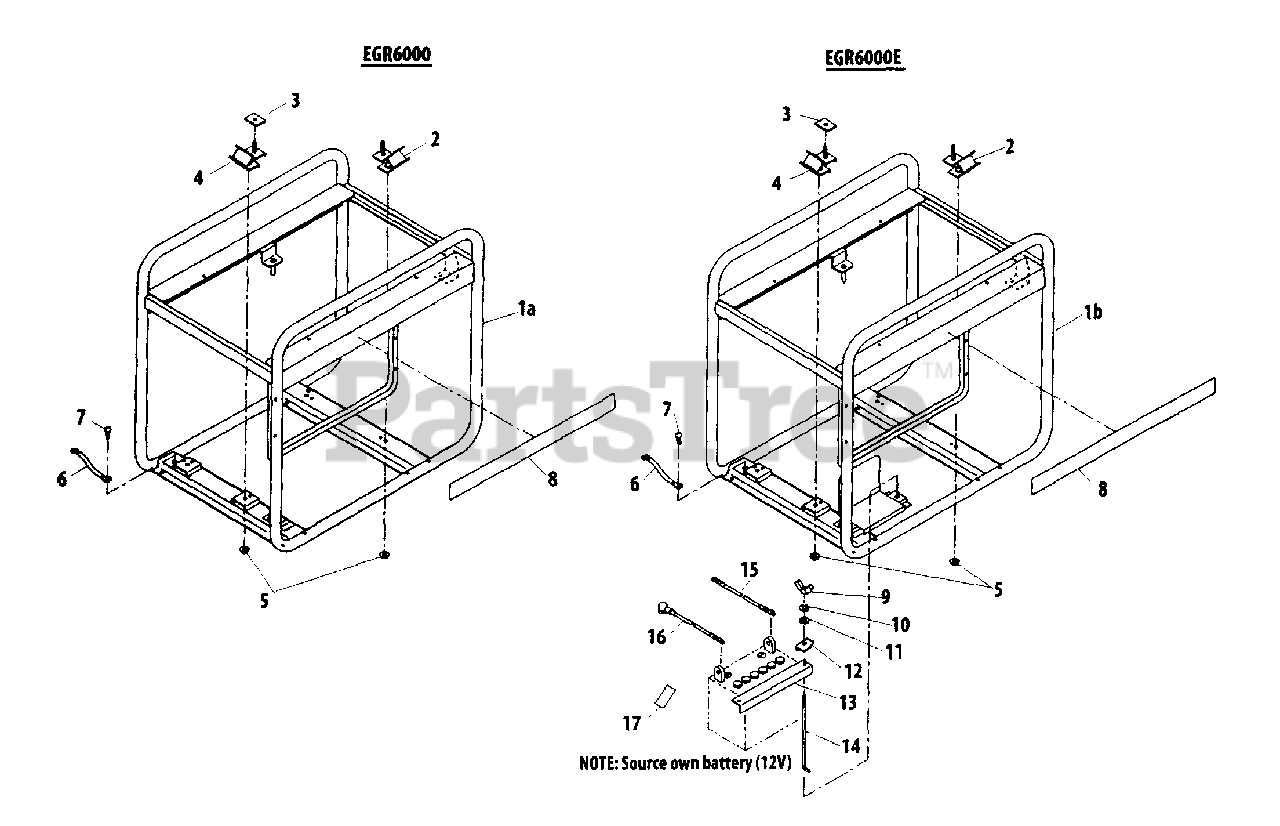

Frame Parts Diagram

  • Title

1A

Echo 71410-21010

FRAME

Note: For model EGR6000

$

$

Currently unavailable

1B

Echo 71411-21010

FRAME

Note: For model EGR6000E

$

$

Currently unavailable

2

Echo 71410-21150

CUSHION

$

$

Currently unavailable

3

Echo 71410-21170

SPACER

$

$

Currently unavailable

4

Echo 71410-21160

CUSHION

$

$

Currently unavailable

5

Echo 11526-08112

NUT - 8 -- FLANGE

$

$

Currently unavailable

6

Echo 14325-21500

LEAD - ANTI-STATIC

$

$

Currently unavailable

7

Echo 11270-05123

SCREW

$

$

Currently unavailable

8

Echo 71410-91020

LABEL - MODEL

$

$

Currently unavailable

9

Echo 01520-10612

WINGNUT

Note: For model EGR6000E

$

$

Currently unavailable

10

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

Note: For model EGR6000E

$0.99

$

In Stock, only 4 left!

0

11

Echo 01613-06100

WASHER - 6
(Superseded to 90060300006)

Note: For model EGR6000E

$0.99

$

In Stock, Qty 20+

0

12

Echo 71411-22030

SPACER

Note: For model EGR6000E

$

$

Currently unavailable

13

Echo 71411-22010

STAY, BATTERY

Note: For model EGR6000E

$

$

Currently unavailable

14

Echo 71411-22020

BOLT, BATTERY

Note: For model EGR6000E

$

$

Currently unavailable

15

Echo 71411-22050

WIRE

Note: For model EGR6000E

$

$

Currently unavailable

16

Echo 71411-22040

WIRE

Note: For model EGR6000E

$

$

Currently unavailable

17

Echo 19401-00087

LABEL

Note: For model EGR6000E

$

$

Currently unavailable
