EGR 6000 E - Shindaiwa Generator Control Box, Control Panel Parts Diagram

Generator

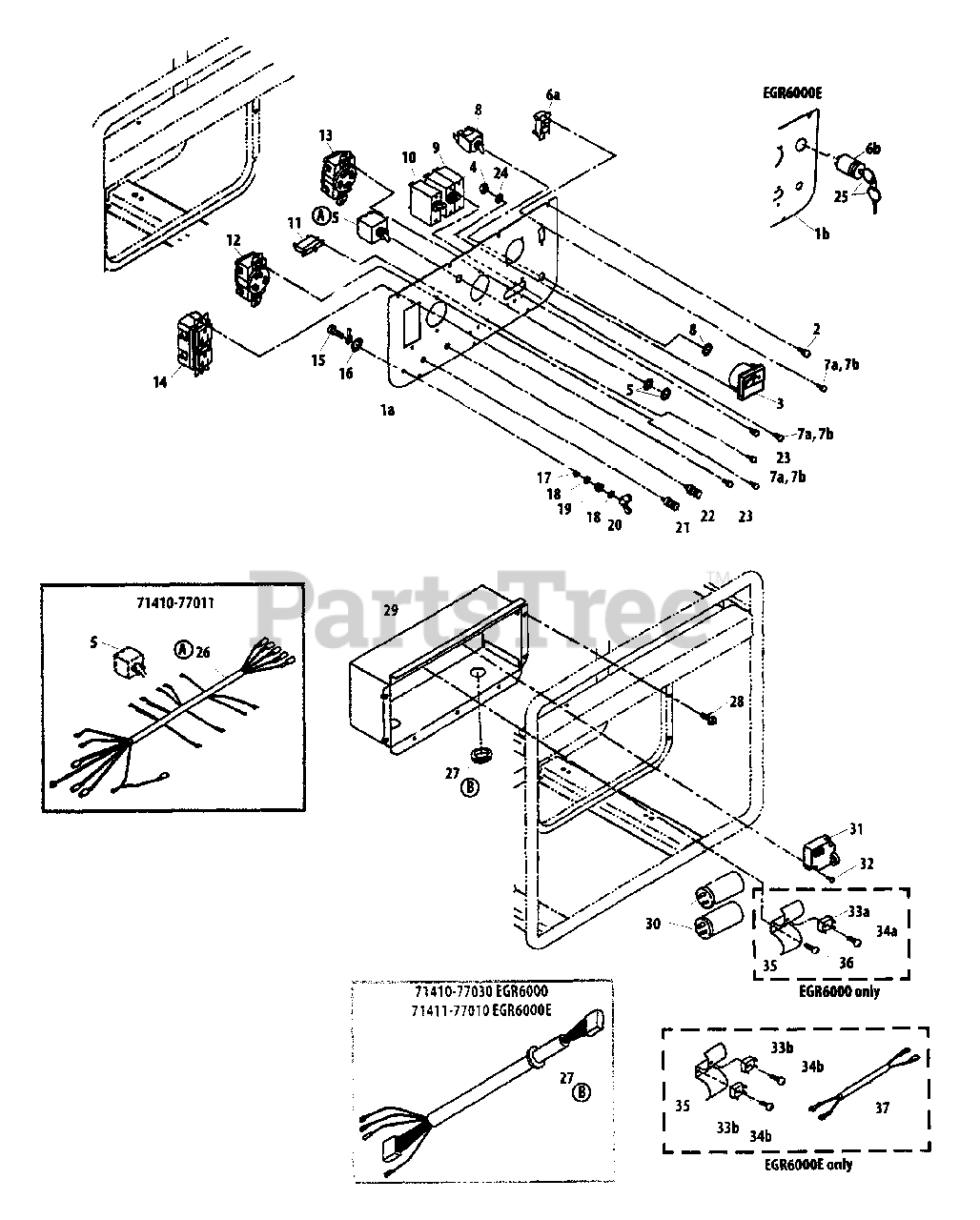

Control Box, Control Panel Parts Diagram

  • Title

1A

Echo 71410-72012

CONTROL PANEL

Note: For model EGR6000

$

$

Not available

1B

Echo 71411-72012

CONTROL PANEL
(Superseded to Discontinued)

Note: For model EGR6000E

$

$

Not available

2

Echo 01213-04123

SCREW - 4X12

$

$

Currently unavailable

3

Echo 15260-02021

METER

$

$

Currently unavailable

4

Echo 01500-03021

NUT - 3

$

$

Currently unavailable

5

Echo 05260-34200

SWITCH

$

$

Currently unavailable

6A

Echo 05261-12201

SWITCH

Note: For model EGR6000

$

$

Currently unavailable

6B

Echo 71411-86020

STARTER SWITCH

Note: For model EGR6000E

$

$

Currently unavailable

7A

Echo 71410-81010

SCREW

Note: For model EGR6000

$

$

Currently unavailable

7B

Echo 71410-81010

SCREW

Note: For model EGR6000E

$

$

Currently unavailable

8

Echo 05260-11200

SWITCH

$

$

Currently unavailable

9

Echo 05281-24300

CIRCUIT PROTECTOR
(Superseded to Discontinued)

$

$

Not available

10

Echo 05281-06306

CIRCUIT PROTECTOR

$

$

Currently unavailable

11

Echo 05281-02002

CIRCUIT PROTECTOR
(Superseded to C137000330)

$52.99

$

Usually ships in 2-4 days

0

12

Echo 05201-25101

OUTLET - 120V

$

$

Not available

13

Echo 05201-33202

OUTLET - 220V
(Superseded to Discontinued)

$

$

Not available

14

Echo 05201-23100

OUTLET - 120V

$

$

Currently unavailable

15

Echo 01210-05168

SCREW - 5X16

$

$

Currently unavailable

16

Echo 01603-00500

WASHER - TOOTH

$

$

Currently unavailable

17

Echo 01613-05088

WASHER

$

$

Currently unavailable

18

Echo 01600-05138

LOCKWASHER

$

$

Currently unavailable

19

Echo 01500-05048

NUT - 5

$

$

Currently unavailable

20

Echo 01520-00510

WINGNUT

$

$

Currently unavailable

21

Echo 15240-11100

TERMINAL POST

$

$

Currently unavailable

22

Echo 15240-11101

TERMINAL POST

$

$

Currently unavailable

23

Echo 71410-83010

SCREW
(Superseded to Discontinued)

$

$

Not available

24

Echo 01600-03071

LOCKWASHER

$

$

Currently unavailable

25

Echo 71411-86030

KEY SET

$

$

Currently unavailable

71410-77011

Echo 71410-77011

WIRING HARNESS ASSY

$

$

Not available

26

Echo 71410-77021

WIRING HARNESS

$

$

Currently unavailable

5

Echo 05260-34200

SWITCH

$

$

Currently unavailable

71410-77030

Echo 71410-77030

WIRING HARNESS

Note: For model EGR6000

$

$

Currently unavailable

71411-77010

Echo 71411-77010

WIRING HARNESS/RECOIL

Note: For model EGR6000E

$

$

Currently unavailable

27

Echo 15250-90610

GROMMET
(Superseded to V144000450)

$1.99

$

Usually ships in 2-4 days

0

28

Echo 71410-71020

BOLT

$

$

Currently unavailable

29

Echo 71410-71010

CONTROL BOX ASSY

$

$

Currently unavailable

30

Echo 71410-75010

CONDENSER
(Superseded to A403000210)

$

$

Not available

31

Echo 71410-74010

PRINT CIRCUIT

$

$

Currently unavailable

32

Echo 01213-06200

SCREW - 6X20
(Superseded to 9156406020)

$0.99

$

Usually ships in 2-4 days

0

33A

Echo 14600-15002

RECTIFIER

Note: For model EGR6000

$

$

Currently unavailable

33B

Echo 14600-15002

RECTIFIER

Note: For model EGR6000E

$

$

Currently unavailable

34A

Echo 01213-04250

SCREW - 4X25

Note: For model EGR6000

$

$

Currently unavailable

34B

Echo 01213-04250

SCREW - 4X25

Note: For model EGR6000E

$

$

Currently unavailable

35

Echo 71410-75030

BRACKET, CONDENSER

$

$

Currently unavailable

36

Echo 01213-04140

SCREW - 4X14

$

$

Currently unavailable

37

Echo 71411-77030

WIRING HARNESS

$

$

Currently unavailable
