EGi-1200 - Echo Generator (SN: EGi-190628-A0000001 - EGi-190628-A9999999) Control Panel Assembly Parts Diagram

Generator

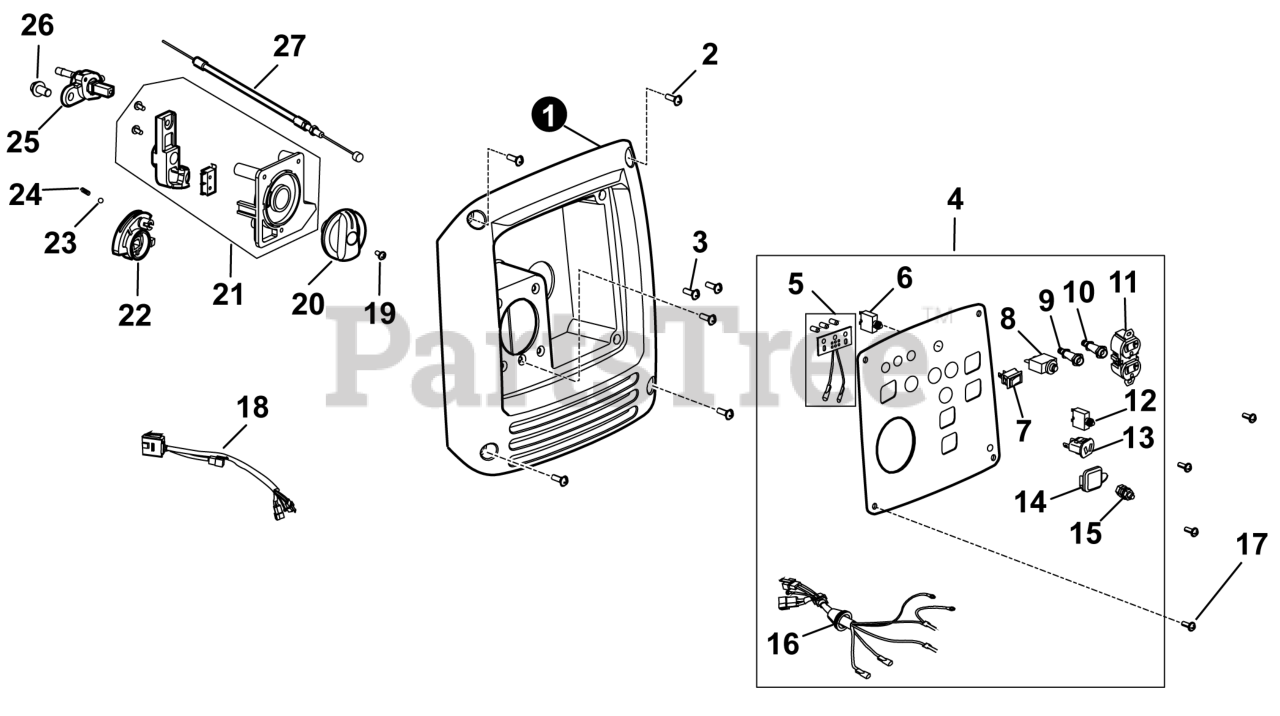

Control Panel Assembly Parts Diagram

  • Title

1

Echo YH479000160

HOUSING, PANEL

$35.99

$

Usually ships in 2-4 days

0

2

Echo YH435000060

BOLT

$7.49

$

Usually ships in 2-4 days

0

3

Echo YH415000150

SCREW, CROSS GROOVE PAN

$3.99

$

Usually ships in 2-4 days

0

4

Echo YH479000150

PANEL, CONTROL

Note: Includes Items 5 - 16

$189.99

$

Usually ships in 2-4 days

0

5

Echo YH310000000

INDICATOR ASSY.

$17.99

$

Usually ships in 2-4 days

0

6

Echo YH318000000

BREAKER, CIRCUIT

$22.99

$

Usually ships in 2-4 days

0

7

Echo YH321000010

SWITCH, AUTO THROTTLE

$42.99

$

Usually ships in 2-4 days

0

8

Echo YH321000020

SWITCH, RESET

$14.99

$

Usually ships in 2-4 days

0

9

Echo YH304000000

SOCKET, PARALELL (RED)

$16.99

$

Usually ships in 2-4 days

0

10

Echo YH304000010

SOCKET, PARALELL (BLACK)

$16.99

$

Usually ships in 2-4 days

0

11

Echo YH304000020

SOCKET, POWER SUPPLY

$14.99

$

Usually ships in 2-4 days

0

12

Echo YH321000030

SWITCH, DC CHARGE RESET

$16.99

$

Usually ships in 2-4 days

0

13

Echo YH304000030

SOCKET, D.C. CHARGE

$26.99

$

Usually ships in 2-4 days

0

14

Echo YH304000040

SOCKET, USB PORT

$36.99

$

Usually ships in 2-4 days

0

15

Echo YH304000050

TERMINAL, GROUND BOLT

$6.49

$

Usually ships in 2-4 days

0

16

Echo YH601000000

HARNESS, CONTROL PANEL WIRING

$53.99

$

Usually ships in 2-4 days

0

17

Echo YH415000140

SCREW, CROSS GROOVE PAN

$4.99

$

Usually ships in 2-4 days

0

18

Echo YH314000000

REGULATOR, VOLTAGE

$57.99

$

Usually ships in 2-4 days

0

19

Echo YH415000160

SCREW

$3.49

$

Usually ships in 2-4 days

0

20

Echo YH470000090

KNOB

$5.49

$

Usually ships in 2-4 days

0

21

Echo YH321000000

SWITCH ASSY.

$77.99

$

Usually ships in 2-4 days

0

22

Echo YH479000170

COVER, BOARD

$3.99

$

Usually ships in 2-4 days

0

23

Echo YH453000010

BALL, STEEL

$3.49

$

Usually ships in 2-4 days

0

24

Echo YH476000040

SPRING, STOPPER ADJUSTING

$3.99

$

Usually ships in 2-4 days

0

25

Echo YH470000110

VALVE, FUEL SHUT OFF

$18.99

$

Usually ships in 2-4 days

0

26

Echo YH435000070

BOLT

$3.49

$

Usually ships in 2-4 days

0

27

Echo YH470000100

CABLE, CHOKE

$23.99

$

Usually ships in 2-4 days

0
