EG6500CL AT1/A (EBBC) - Honda Generator, Made in China (SN: EBBC-1500001 - EBBC-9999999) RECOIL STARTER Parts Diagram

Generator, Made in China

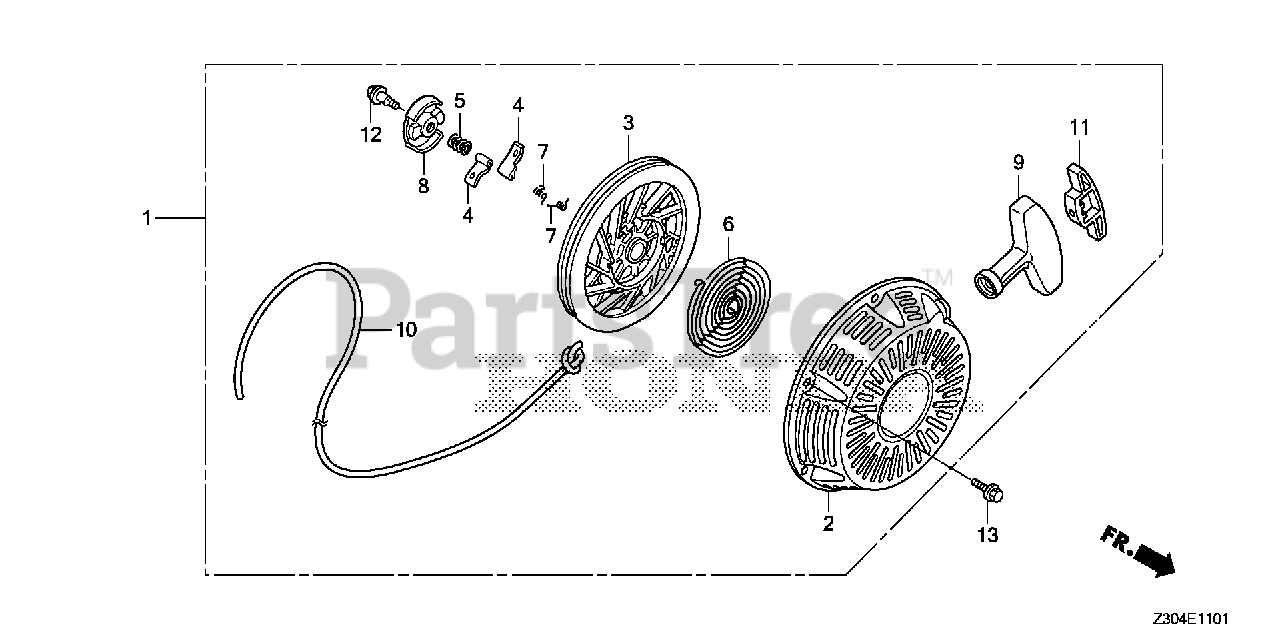

RECOIL STARTER Parts Diagram

  • Title
1

Honda 28400-Z1C-315ZA

STARTER ASSY., RECOIL *NH1* (COO) (BLACK)

$82.99

$

In Stock, only 2 left!

0

2

Honda 28410-ZE3-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK) (Honda Code 4209953).

$112.99

$

In Stock, only 1 left!

0

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER (Honda Code 3713328).

$44.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

$18.99

$

Usually ships in 3-6 days

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

$14.99

$

Usually ships in 3-6 days

0

9

Honda 28461-Z5T-003

SEE PART DETAILS - PRI; GRIP, STARTER
(Superseded to 28461-Z5T-305)

$10.99

$

In Stock, only 4 left!

0

10

Honda 28462-Z1C-801

ROPE, RECOIL STARTER

$14.99

$

Usually ships in 3-6 days

0

11

Honda 28463-Z5T-013

SEE PART DETAILS - PRI; GRIP, REINFORCEMENT

$3.49

$

In Stock, Qty 7

0

12

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

$4.49

$

In Stock, Qty 10

0

13

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 14

0
