EG6500CL AT1/A (EBBC) - Honda Generator, Made in China (SN: EBBC-1500001 - EBBC-9999999) FUEL TANK Parts Diagram

Generator, Made in China

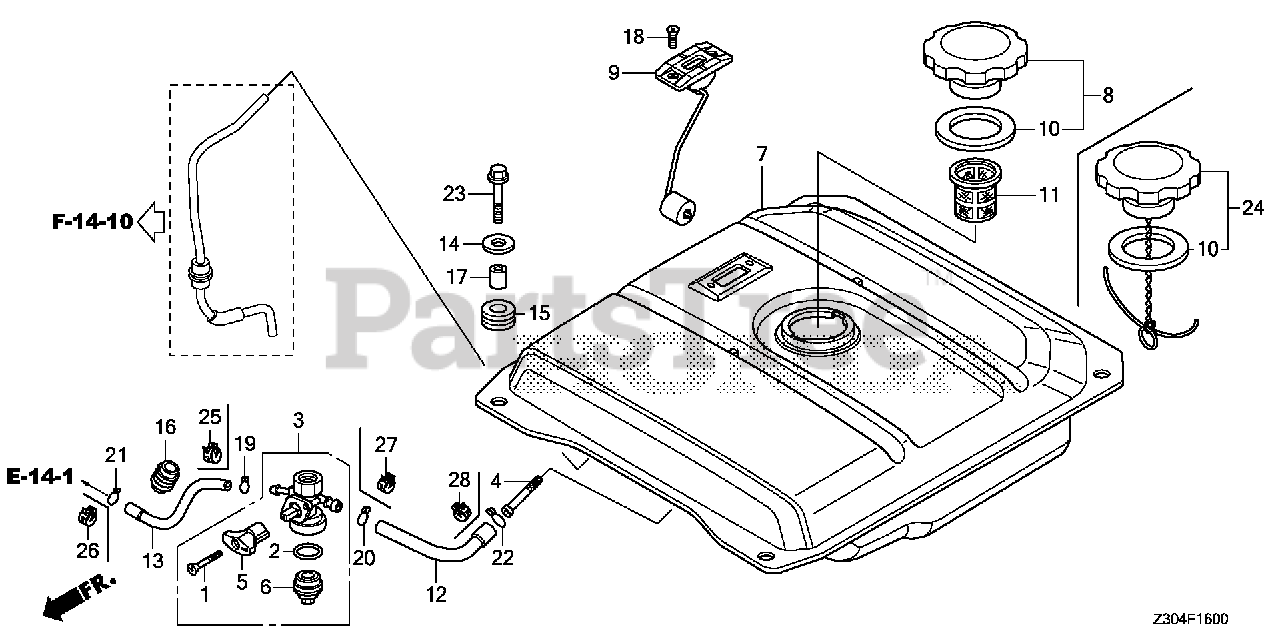

FUEL TANK Parts Diagram

  • Title
1

Honda 16080-Z30-003

SCREW, OVAL

$1.99

$

In Stock, Qty 8

0

2

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.49

$

In Stock, Qty 8

0

3

Honda 16950-Z30-003

PETCOCK ASSY.

$96.99

$

In Stock, only 1 left!

0

4

Honda 16952-ZA0-000

FILTER, FUEL

$16.99

$

In Stock, only 1 left!

0

5

Honda 16963-Z30-003

LEVER, PETCOCK

$9.99

$

Usually ships in 3-6 days

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

$30.99

$

Usually ships in 3-6 days

0

7

Honda 17510-Z30-S31ZA

TANK, FUEL *R280* (POWER RED)

$436.99

$

Usually ships in 3-6 days

0

9

Honda 17630-Z30-020

SEE PART DETAILS - PRI; METER ASSY., FUEL
(Superseded to 17630-Z30-030)

$19.99

$

Usually ships in 3-6 days

0

10

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$7.99

$

In Stock, only 2 left!

0

11

Honda 17670-Z25-R30

FILTER, FUEL

$17.99

$

In Stock, only 1 left!

0

12

Honda 17701-Z30-S31

TUBE, FUEL TANK (FKM)

$

$

Not available

12

Honda 17701-Z30-S32

TUBE, FUEL TANK (FKM) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 17702-Z30-S31

TUBE, FUEL (FKM)
(Superseded to 17702-Z30-S32)

$8.99

$

In Stock, only 1 left!

0

13

Honda 17702-Z30-S32

TUBE, FUEL (FKM) (NOT AVAILABLE)

$8.99

$

In Stock, only 1 left!

0

14

Honda 90501-Z15-000

WASHER (6MM)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90851-898-000

CUSHION, TANK RUBBER (Honda Code 1106806).

$5.99

$

In Stock, only 1 left!

0

16

Honda 90854-ZB3-000

RUBBER, FUEL (9X15X20)

$4.49

$

In Stock, only 1 left!

0

17

Honda 91551-898-000

COLLAR, TANK CUSHION

$5.99

$

Usually ships in 3-6 days

0

18

Honda 93600-05010-0A

SEE PART DETAILS - PRI; SCREW, FLAT (5X10) (Honda Code 0181529).

$1.49

$

In Stock, only 3 left!

0

23

Honda 95701-06022-07

BOLT, FLANGE (6X22)

$1.49

$

In Stock, only 2 left!

0

24

Honda 17620-Z30-S31

CAP, FUEL FILLER
(Superseded to 17620-Z30-S32)

$44.99

$

In Stock, only 3 left!

0

25

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 6

0

26

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

$3.49

$

In Stock, Qty 8

0

27

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 2 left!

0

28

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

Usually ships in 3-6 days

0
