EG6500CL AT (EBBC) - Honda Generator, Made in China (SN: EBBC-1000001 - EBBC-9999999) CRANKCASE COVER Parts Diagram

Generator, Made in China

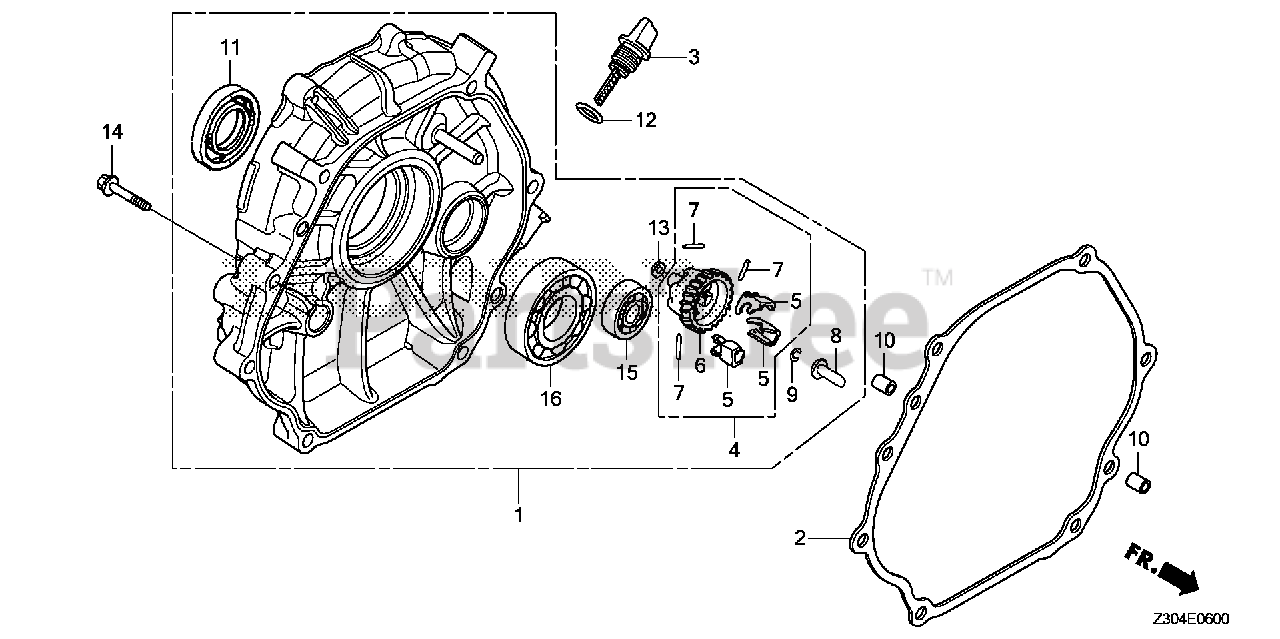

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-Z1C-E20

COVER ASSY., CRANKCASE (E-TYPE)

$239.99

$

Usually ships in 3-6 days

0

2

Honda 11381-Z5T-000

GASKET, CRANKCASE COVER

$6.49

$

In Stock, Qty 8

0

3

Honda 15620-ZE2-700

CAP, OIL FILLER

$8.99

$

In Stock, only 2 left!

0

4

Honda 16510-ZE3-000

GOVERNOR ASSY.

$33.99

$

Usually ships in 3-6 days

0

5

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

6

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

$19.99

$

Usually ships in 3-6 days

0

7

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

9

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

10

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

11

Honda 91201-Z1C-003

OIL SEAL (35X52X8) (NOK)

$9.99

$

In Stock, only 4 left!

0

12

Honda 91301-805-000

O-RING (26X2.7)

$5.49

$

In Stock, Qty 10

0

13

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 95701-08040-00

BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

15

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0

16

Honda 96100-62070-00

BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0
