EG650 A2 (G100) - Honda Generator, Made in Japan (SN: G100-3000001 - G100-9999999) EG650 FUEL TANK Parts Diagram

Generator, Made in Japan

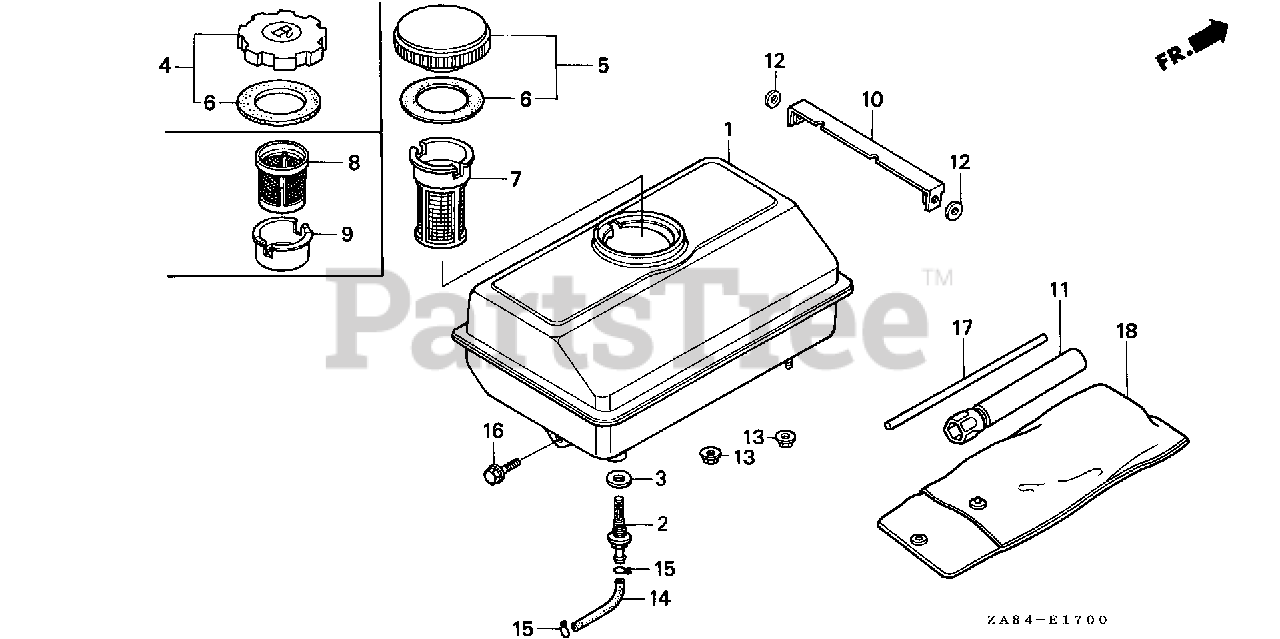

EG650 FUEL TANK Parts Diagram

  • Title

1

Honda 17510-ZG0-W00ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$

$

Not available

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

3

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

4

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3015990.

$

$

Not available

5

Honda 17620-ZE2-W00

SEE PART DETAILS - SUP; CAP, FUEL FILLER

Note: Use up to Engine SN 3015589.

$

$

Not available

5

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

Note: Use up to Engine SN 3015589.

$19.99

$

In Stock, only 1 left!

0

6

Honda 17631-ZH7-003

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: Use from Engine SN 3015990.

$

$

Not available

6

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

7

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

$12.99

$

In Stock, only 3 left!

0

10

Honda 31454-ZG0-800

STAY, CONTROL BOX

$

$

Not available

13

Honda 94071-06080

NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X55)

$54.99

$

In Stock, only 4 left!

0

15

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 5

0
