EG650 A2 (G100) - Honda Generator, Made in Japan (SN: G100-3000001 - G100-9999999) EG650 FLYWHEEL + IGNITION COIL Parts Diagram

Generator, Made in Japan

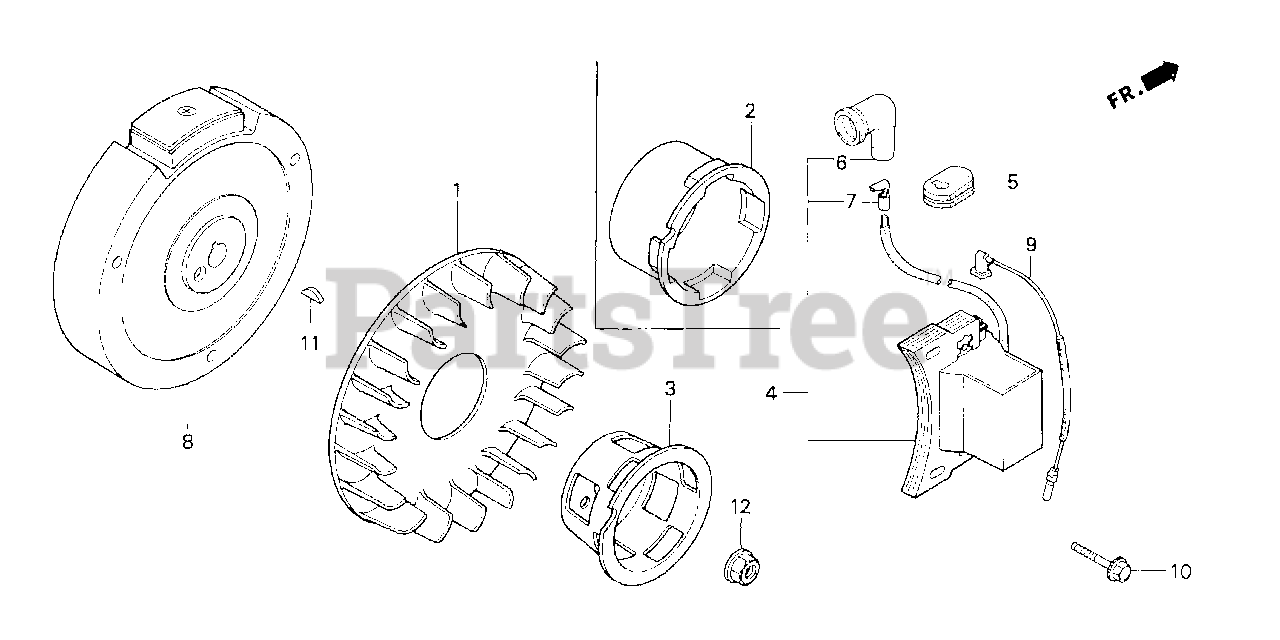

EG650 FLYWHEEL + IGNITION COIL Parts Diagram

  • Title

1

Honda 19511-ZG0-W00

FAN, COOLING

$

$

Not available

2

Honda 28451-ZA8-004

PULLEY, STARTER

Note: Use up to Engine SN 3061445.

$25.99

$

Usually ships in 3-6 days

0

2

Honda 28451-ZG0-004

PULLEY, STARTER

Note: Use from Engine SN 3223717.

$16.99

$

Usually ships in 3-6 days

0

2

Honda 28451-ZG1-004

PULLEY, STARTER

Note: Use from Engine SN 3061446 to 3223716.

$23.99

$

Usually ships in 3-6 days

0

4

Honda 30500-ZG0-W01

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$100.99

$

Usually ships in 3-6 days

0

5

Honda 30563-ZG0-000

GROMMET, IGNITION WIRE

$4.99

$

Usually ships in 3-6 days

0

6

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO)

$

$

Not available

7

Honda 30702-888-003

TERMINAL, PLUG

$9.49

$

Usually ships in 3-6 days

0

8

Honda 31100-ZG0-010

SEE PART DETAILS - PRI; FLYWHEEL

$

$

Not available

9

Honda 36101-ZG0-000

SEE PART DETAILS - SUP; WIRE, STOP SWITCH

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.99

$

In Stock, Qty 20+

0

11

Honda 90741-035-000

KEY, WOODRUFF (3MM)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 94050-12000

NUT, FLANGE (12MM)

$1.49

$

In Stock, only 3 left!

0
