EG650 A/B (G100) - Honda Generator, Made in Japan (SN: G100-3000001 - G100-9999999) EG650 CONTROL BOX Parts Diagram

Generator, Made in Japan

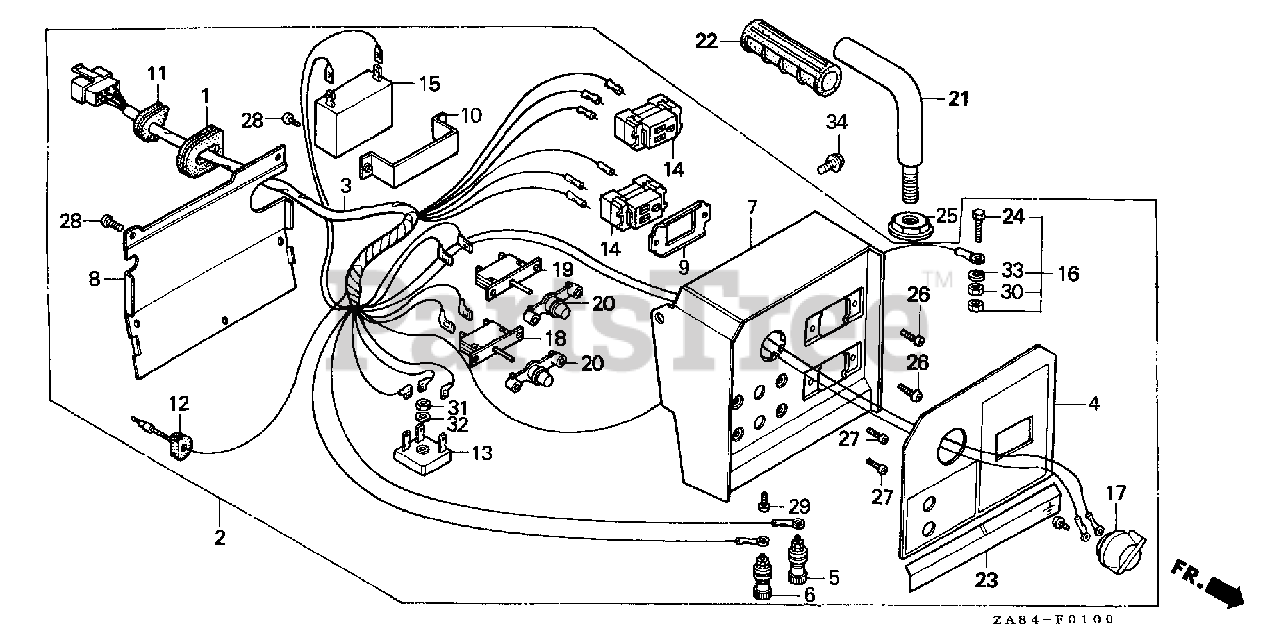

EG650 CONTROL BOX Parts Diagram

  • Title

1

Honda 19905-ZA8-701

SEE PART DETAILS - PRI; GROMMET, WIRE

$4.99

$

Usually ships in 3-6 days

0

2

Honda 31400-ZA8-733ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

3

Honda 31404-ZA8-731

WIRE HARNESS ASSY.

$

$

Not available

4

Honda 31406-ZA8-730

MARK, SWITCH PANEL

$

$

Not available

5

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$46.99

$

Usually ships in 3-6 days

0

6

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$46.99

$

Usually ships in 3-6 days

0

7

Honda 31420-ZA8-732ZA

BOX, CONTROL *R8* (BRIGHT RED)

$

$

Not available

8

Honda 31425-ZA8-701

COVER, CONTROL BOX

$

$

Not available

9

Honda 31426-ZA8-701

HOLDER, RECEPTACLE

$7.49

$

In Stock, only 1 left!

0

10

Honda 31427-ZA8-701

HOLDER, CONDENSER

$

$

Not available

11

Honda 31481-ZA8-701

GROMMET

$

$

Not available

12

Honda 31486-898-700

GROMMET, SWITCH WIRE

$

$

Not available

13

Honda 31720-ZA8-701

DIODE, D.C.

$

$

Not available

14

Honda 32333-ZA8-000

RECEPTACLE (15A/125V)

$

$

Not available

15

Honda 32380-ZA8-701

CONDENSER

$

$

Not available

16

Honda 32510-ZA8-701

TERMINAL SET, GROUND

$

$

Not available

17

Honda 35120-Z11-E01

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$18.99

$

Usually ships in 3-6 days

0

17

Honda 36110-ZA8-701

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE

$

$

Currently unavailable

18

Honda 38240-898-000

PROTECTOR, CIRCUIT (DC)

$36.99

$

In Stock, only 4 left!

0

19

Honda 38241-ZA8-730

PROTECTOR, CIRCUIT (A.C.)

$33.99

$

Usually ships in 3-6 days

0

20

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

$19.99

$

Usually ships in 3-6 days

0

21

Honda 68110-ZA8-701

HANDLE, CARRYING

$27.99

$

Usually ships in 3-6 days

0

22

Honda 78207-ZA8-700

GRIP, HANDLE

$

$

Not available

23

Honda 87206-ZA8-730

MARK, CONTROL BOX

$

$

Not available

24

Honda 90011-ZB4-000

BOLT, HEX. (6X22)

$4.99

$

Usually ships in 3-6 days

0

25

Honda 90201-GC4-000

NUT, FLANGE (14MM)

$6.49

$

Usually ships in 3-6 days

0

26

Honda 93500-03008-0H

SCREW, PAN (3X8)

$0.99

$

In Stock, Qty 8

0

27

Honda 93500-03012-0H

SCREW, PAN (3X12)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 93500-04008-0H

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 93500-04016-0H

SCREW, PAN (4X16)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

30

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

31

Honda 94002-04080-0S

NUT, HEX. (4MM)

$

$

Not available

32

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0
