EG650 A/A (G100) - Honda Generator, Made in Japan (SN: G100-2000001 - G100-2424874) EG650 MUFFLER Parts Diagram

Generator, Made in Japan

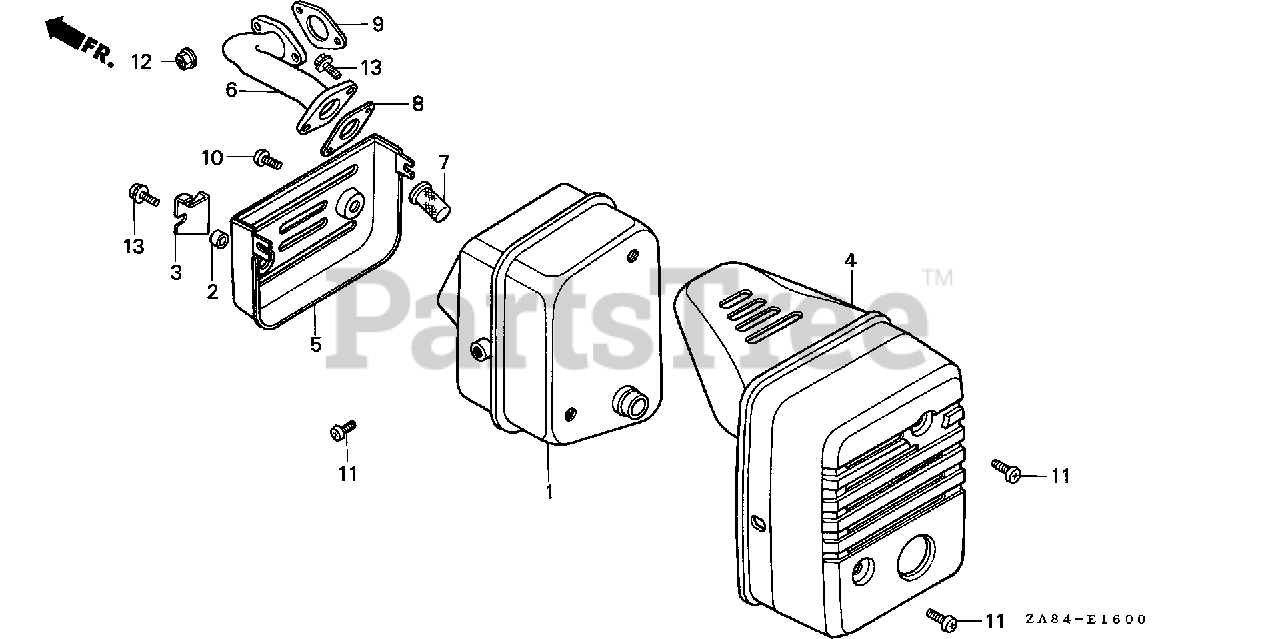

EG650 MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZG0-791

SEE PART DETAILS - PRI; MUFFLER

$76.99

$

Usually ships in 3-6 days

0

2

Honda 18315-ZG0-800

COLLAR, STAY

$2.99

$

Usually ships in 3-6 days

0

3

Honda 18318-ZG0-800

STAY, MUFFLER

$7.99

$

Usually ships in 3-6 days

0

4

Honda 18320-ZG0-801

PROTECTOR, MUFFLER

$47.99

$

Usually ships in 3-6 days

0

5

Honda 18321-ZG0-801

SEPARATOR, MUFFLER

$15.99

$

Usually ships in 3-6 days

0

6

Honda 18330-ZG0-801

PIPE, EX.

$42.99

$

Usually ships in 3-6 days

0

7

Honda 18355-959-620

ARRESTER, SPARK

$

$

Not available

8

Honda 18381-ZG0-800

GASKET, MUFFLER

$5.49

$

Usually ships in 3-6 days

0

9

Honda 18382-ZG0-800

GASKET B, MUFFLER

$

$

Not available

10

Honda 93500-06006-0A

SCREW, PAN (6X6)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 93500-06006-0B

SCREW, PAN (6X6)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0
