EG5000X K1 A/C (EA7) - Honda Generator, Made in Japan (SN: EA7-4140001 - EA7-9999999) STATOR Parts Diagram

Generator, Made in Japan

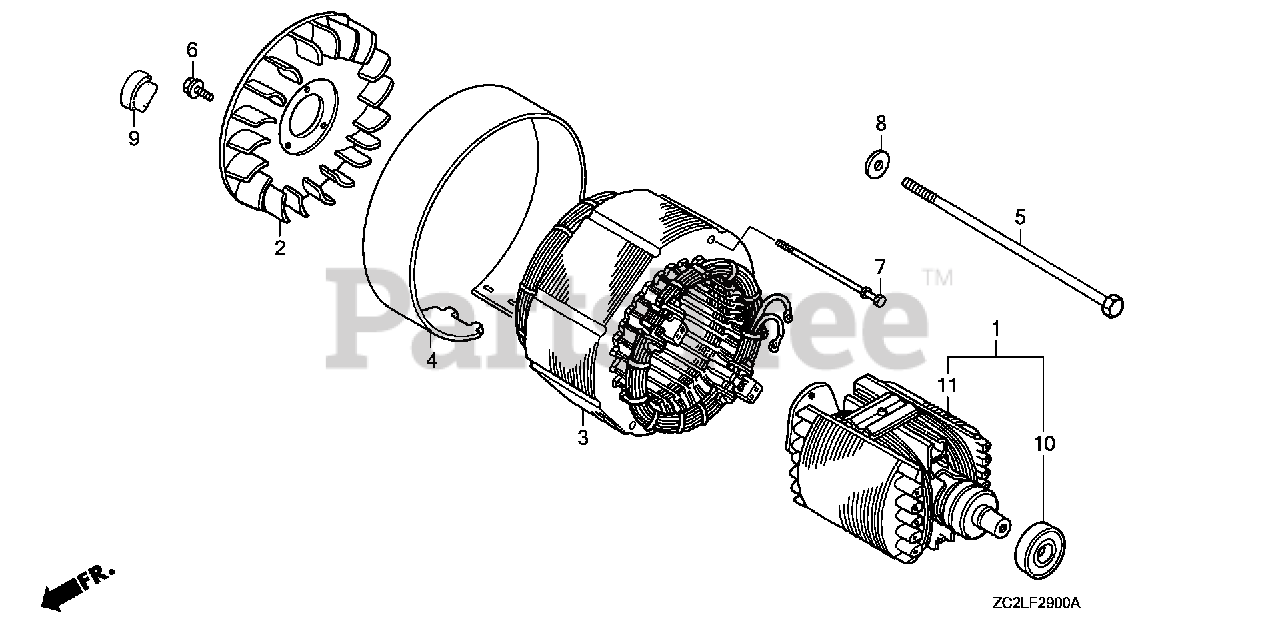

STATOR Parts Diagram

  • Title
1

Honda 31130-ZC2-033

ROTOR

Note: Use from Frame SN 4154966.

$1202.99

$

Usually ships in 3-6 days

0

2

Honda 31112-ZB4-003

FAN, GENERATOR COOLING

$113.99

$

Usually ships in 3-6 days

0

3

Honda 31120-ZC2-931

STATOR ASSY.

$1473.99

$

Usually ships in 3-6 days

0

4

Honda 31127-ZC2-631

COVER, STATOR

$43.99

$

Usually ships in 3-6 days

0

5

Honda 90021-ZC2-000

BOLT, HEX. (10X250)

$18.99

$

Usually ships in 3-6 days

0

6

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

7

Honda 90091-ZC2-003

BOLT-WASHER (5X195)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 90504-ZA0-000

WASHER (10.5MM)

$5.99

$

Usually ships in 3-6 days

0

9

Honda 90855-ZB4-000

GROMMET, CRANKCASE

$3.99

$

Usually ships in 3-6 days

0

10

Honda 91051-ZB4-003

BEARING ASSY. (6204)

$32.99

$

Usually ships in 3-6 days

0

11

Honda 31130-ZC2-003

SEE PART DETAILS - SUP; ROTOR

Note: Use up to Frame SN 4154965.

$

$

Not available
