EG5000X K1 A/B (EA7) - Honda Generator, Made in Japan (SN: EA7-4117433 - EA7-4139999) EG FUEL TANK Parts Diagram

Generator, Made in Japan

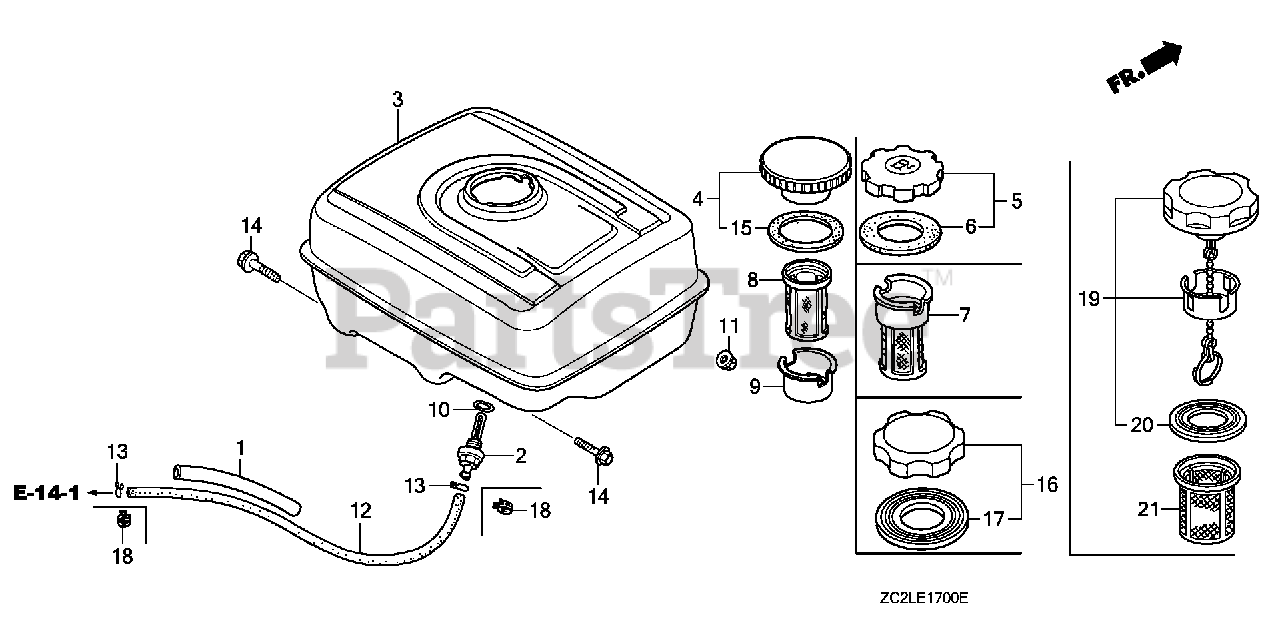

EG FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, only 4 left!

0

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK (NOT AVAILABLE)
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE3-030ZH

TANK, FUEL *R280* (POWER RED)

$150.99

$

Usually ships in 3-6 days

0

5

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

$

$

Not available

6

Honda 17631-329-003

GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

$

$

Not available

7

Honda 17672-ZE2-W01

FILTER, FUEL

$12.99

$

In Stock, only 1 left!

0

10

Honda 91353-671-003

O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

10

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

11

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X235)

$54.99

$

In Stock, only 4 left!

0

13

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

14

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0
