EG5000X K1 A/A (EA7) - Honda Generator, Made in Japan (SN: EA7-4100001 - EA7-4117432) RECOIL STARTER Parts Diagram

Generator, Made in Japan

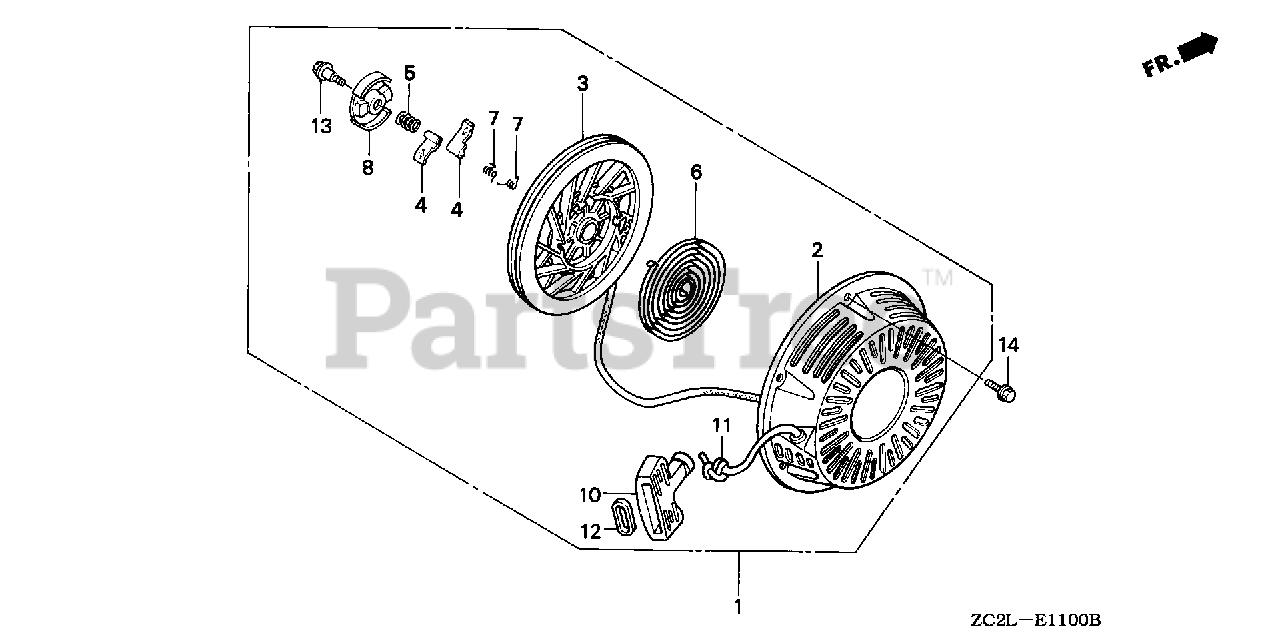

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE3-W01ZF

STARTER ASSY., RECOIL *NH16M* (GUN METALLIC BLACK) (NOT AVAILABLE)

Note: Use up to Engine SN 2215398.

$

$

Not available

1

Honda 28400-ZE3-W02ZB

STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use from Engine SN 2215399.

$123.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE3-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

Note: Use from Engine SN 2215399.

$112.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE3-W01ZC

CASE, RECOIL STARTER *NH16M* (GUN METALLIC BLACK)

Note: Use up to Engine SN 2215398.

$

$

Not available

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

$44.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

In Stock, only 2 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

$7.99

$

In Stock, Qty 12

0

10

Honda 28461-ZE2-W03

SEE PART DETAILS - PRI; GRIP, STARTER

$7.99

$

In Stock, Qty 12

0

11

Honda 28462-ZE3-W01

ROPE, RECOIL STARTER

$14.99

$

In Stock, Qty 6

0

12

Honda 28469-ZE2-W01

REINFORCEMENT, GRIP

$6.99

$

In Stock, only 1 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, Qty 10

0

14

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 20+

0
