EG5000X K1 A/A (EA7) - Honda Generator, Made in Japan (SN: EA7-4100001 - EA7-4117432) EG CONTROL BOX (EG5000XK1) (TO 4135486) Parts Diagram

Generator, Made in Japan

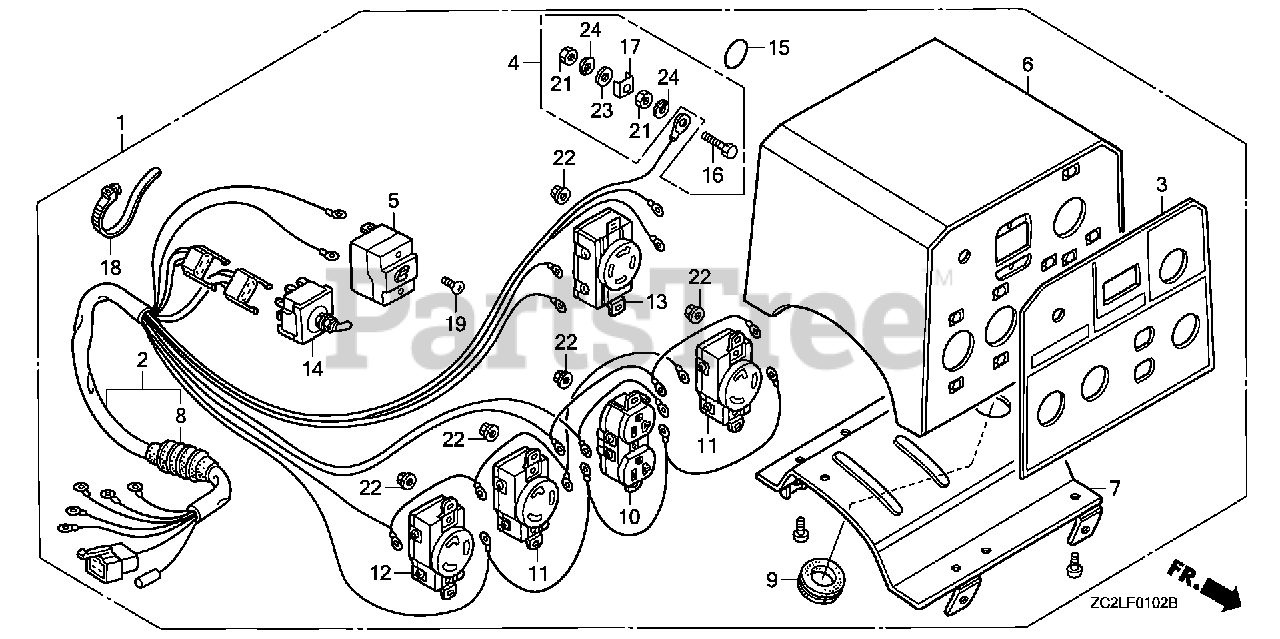

EG CONTROL BOX (EG5000XK1) (TO 4135486) Parts Diagram

  • Title

1

Honda 31400-ZC2-G31ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

2

Honda 31404-ZC2-G31

WIRE HARNESS ASSY. (NOT AVAILABLE)

$

$

Not available

3

Honda 31406-ZC2-G31

MARK, PANEL SWITCH

$

$

Not available

4

Honda 31428-899-840

TERMINAL SET, GROUND

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31430-ZC2-630

BREAKER, CIRCUIT (19A)

$300.99

$

Usually ships in 3-6 days

0

6

Honda 31450-ZB4-931ZB

BOX, CONTROL *R280* (POWER RED)

$187.99

$

Usually ships in 3-6 days

0

7

Honda 31455-ZB4-900ZC

PLATE (LOWER) *R280* (POWER RED)

$100.99

$

Usually ships in 3-6 days

0

8

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

$14.99

$

Usually ships in 3-6 days

0

9

Honda 31482-ZB4-900

GROMMET, MAIN WIRE

$9.49

$

Usually ships in 3-6 days

0

10

Honda 32330-899-631

RECEPTACLE (20A/125V) (MATSUSHITA)

$70.99

$

Usually ships in 3-6 days

0

11

Honda 32331-899-630

RECEPTACLE (20A/125V) (NOT AVAILABLE)

$

$

Not available

12

Honda 32332-880-710

RECEPTACLE (30A/125V)
(Superseded to 32332-ZB4-630)

$46.99

$

In Stock, only 1 left!

0

13

Honda 32332-899-630

RECEPTACLE (20A-125/250V) (MATSUSHITA) (NOT AVAILABLE)

$

$

Not available

14

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$213.99

$

Usually ships in 3-6 days

0

15

Honda 87534-892-640

MARK, GROUND

$2.49

$

In Stock, Qty 5

0

16

Honda 90011-899-840

BOLT, HEX. (6X28)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

In Stock, only 1 left!

0

18

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$5.99

$

Usually ships in 3-6 days

0

19

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 8

0

21

Honda 94001-06390-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 2 left!

0

23

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

24

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0
