EG5000X AR (EA7) - Honda Generator, Made in Japan (SN: EA7-4000001 - EA7-4100000) FRAME Parts Diagram
Generator, Made in Japan

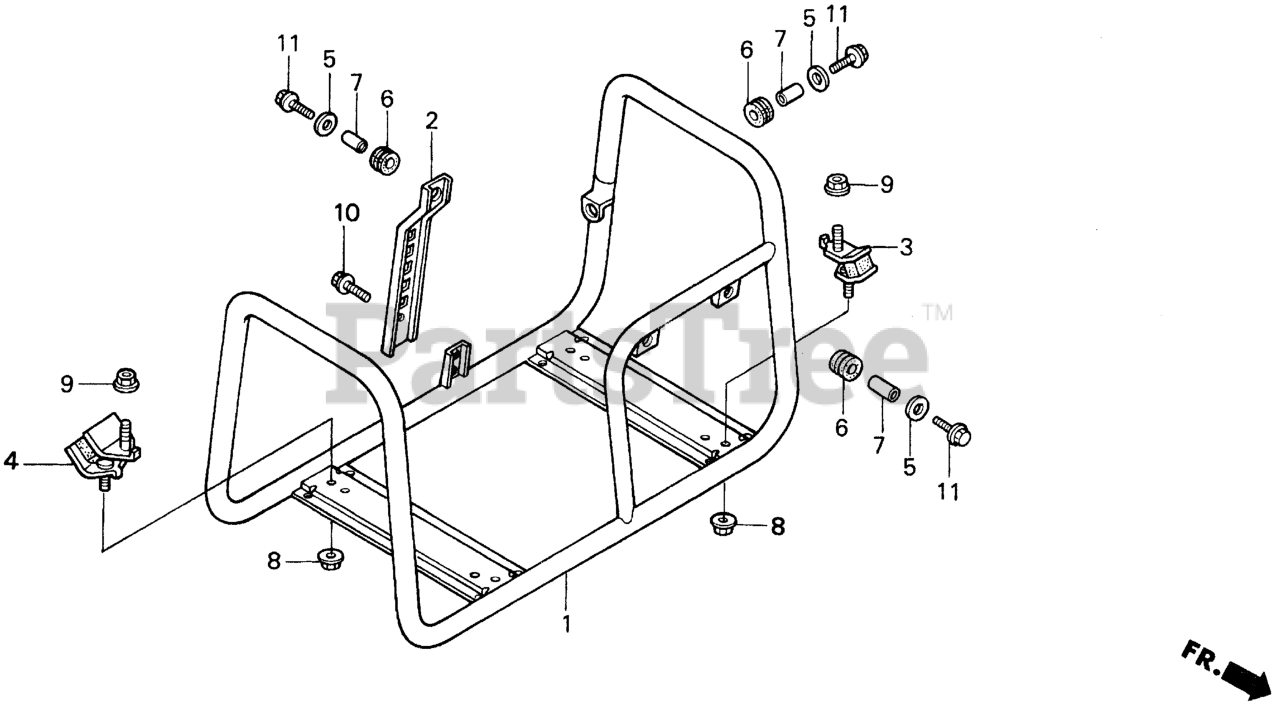

FRAME Parts Diagram
Honda 50310-ZC2-930ZA
FRAME *NH105* (MAT BLACK) (NOT AVAILABLE)
$
$
Not available
Honda 50315-ZB4-930
STAY, BOX SUPPORT
$35.99
$
Usually ships in 3-6 days
Honda 68325-ZC2-000
RUBBER (LOWER)
$41.99
$
Usually ships in 3-6 days
Honda 68325-899-000
RUBBER (LOWER)
$53.99
$
Usually ships in 3-6 days
Honda 90506-500-000
WASHER, AIR DUCT
$
$
Currently unavailable
Honda 90852-898-000
RUBBER, CONTROL BOX
$4.99
$
Usually ships in 3-6 days
Honda 91552-898-000
COLLAR, CONTROL BOX
$4.99
$
Usually ships in 3-6 days
Honda 94050-08000
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).
$1.49
$
In Stock, Qty 20+
Honda 94050-10000
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).
$1.99
$
In Stock, Qty 6
Honda 95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.
$2.49
$
In Stock, Qty 13
$2.49
$
In Stock, Qty 7
Honda 95701-06018-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)
$2.49
$
In Stock, Qty 7
