EG5000X AR (EA7) - Honda Generator, Made in Japan (SN: EA7-4000001 - EA7-4100000) CONTROL BOX Parts Diagram

Generator, Made in Japan

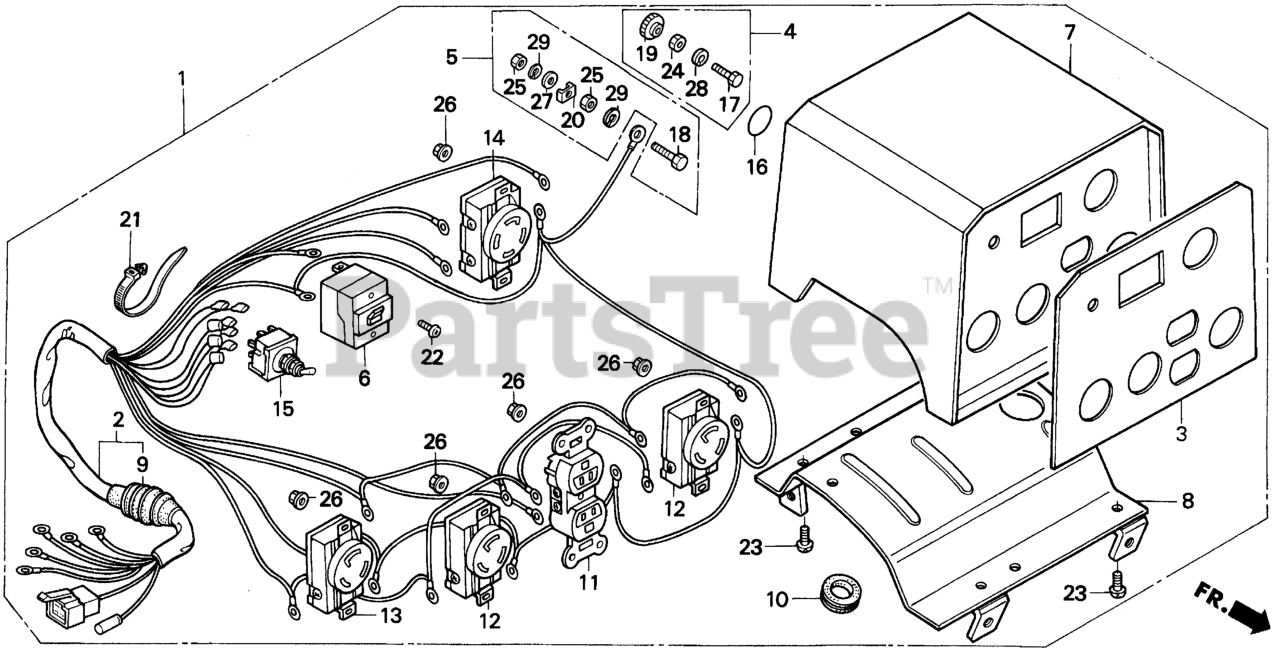

CONTROL BOX Parts Diagram

  • Title

1

Honda 31400-ZC2-931H

BOX ASSY., CONTROL *R8* (EG-A) (BRIGHT RED)

Note: Use up to Frame SN 4012267.

$

$

Currently unavailable

1

Honda 31400-ZC2-932ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use from Frame SN 4012268.

$

$

Not available

2

Honda 31404-ZC2-931

WIRE HARNESS ASSY. (EG-A)

Note: Use up to Frame SN 4012267.

$

$

Currently unavailable

2

Honda 31404-ZC2-932

WIRE HARNESS ASSY. (EG-A) (NOT AVAILABLE)

Note: Use from Frame SN 4012268.

$

$

Currently unavailable

3

Honda 31406-ZC2-930

PLATE, CONTROL INDICATOR (EG-A) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31428-ZB4-013

TERMINAL SET, GROUND

Note: Use up to Frame SN 4020965.

$11.99

$

Usually ships in 3-6 days

0

5

Honda 31428-899-840

TERMINAL SET, GROUND

Note: Use from Frame SN 4020966.

$23.99

$

Usually ships in 3-6 days

0

6

Honda 31430-ZC2-630

BREAKER, CIRCUIT (19A)

$300.99

$

Usually ships in 3-6 days

0

7

Honda 31450-ZB4-931ZB

SEE PART DETAILS - PRI; BOX, CONTROL *R280* (POWER RED)

$187.99

$

Usually ships in 3-6 days

0

8

Honda 31455-ZB4-900ZA

SEE PART DETAILS - PRI; PLATE (LOWER) *NH105* (MAT BLACK)

$

$

Not available

9

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

$14.99

$

Usually ships in 3-6 days

0

10

Honda 31482-ZB4-900

GROMMET, MAIN WIRE

$9.49

$

Usually ships in 3-6 days

0

11

Honda 32330-899-631

RECEPTACLE (20A/125V) (MATSUSHITA)

$70.99

$

Usually ships in 3-6 days

0

12

Honda 32331-899-630

RECEPTACLE (20A/125V) (NOT AVAILABLE)

$

$

Not available

13

Honda 32332-ZB4-630

SEE PART DETAILS - SUP; RECEPTACLE (30A/125V)

$46.99

$

In Stock, only 1 left!

0

13

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$46.99

$

In Stock, only 1 left!

0

14

Honda 32334-ZA0-630

SEE PART DETAILS - SUP; RECEPTACLE (4-PRONG) (30A/125-250V)
(Superseded to 32334-ZA0-631)

$

$

Not available

14

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$

$

Not available

15

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$213.99

$

Usually ships in 3-6 days

0

16

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.49

$

In Stock, Qty 5

0

17

Honda 90011-ZB4-000

BOLT, HEX. (6X22)

Note: Use up to Frame SN 4020965.

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90011-899-840

BOLT, HEX. (6X28)

Note: Use from Frame SN 4020966.

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90381-812-710

NUT, SPECIAL (6MM)

Note: Use up to Frame SN 4020965.

$2.49

$

In Stock, only 1 left!

0

20

Honda 90501-ZA7-640

RETAINER (6MM)

Note: Use from Frame SN 4020966.

$3.99

$

In Stock, only 1 left!

0

21

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$5.99

$

Usually ships in 3-6 days

0

22

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 8

0

23

Honda 93500-06010-0H

SCREW, PAN (6X10)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use up to Frame SN 4020965.

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use from Frame SN 4020966.

$1.99

$

Usually ships in 3-6 days

0

26

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 2 left!

0

27

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

Note: Use from Frame SN 4020966.

$0.99

$

In Stock, Qty 20+

0

28

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

Note: Use up to Frame SN 4020965.

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

Note: Use from Frame SN 4020966.

$1.49

$

Usually ships in 3-6 days

0
