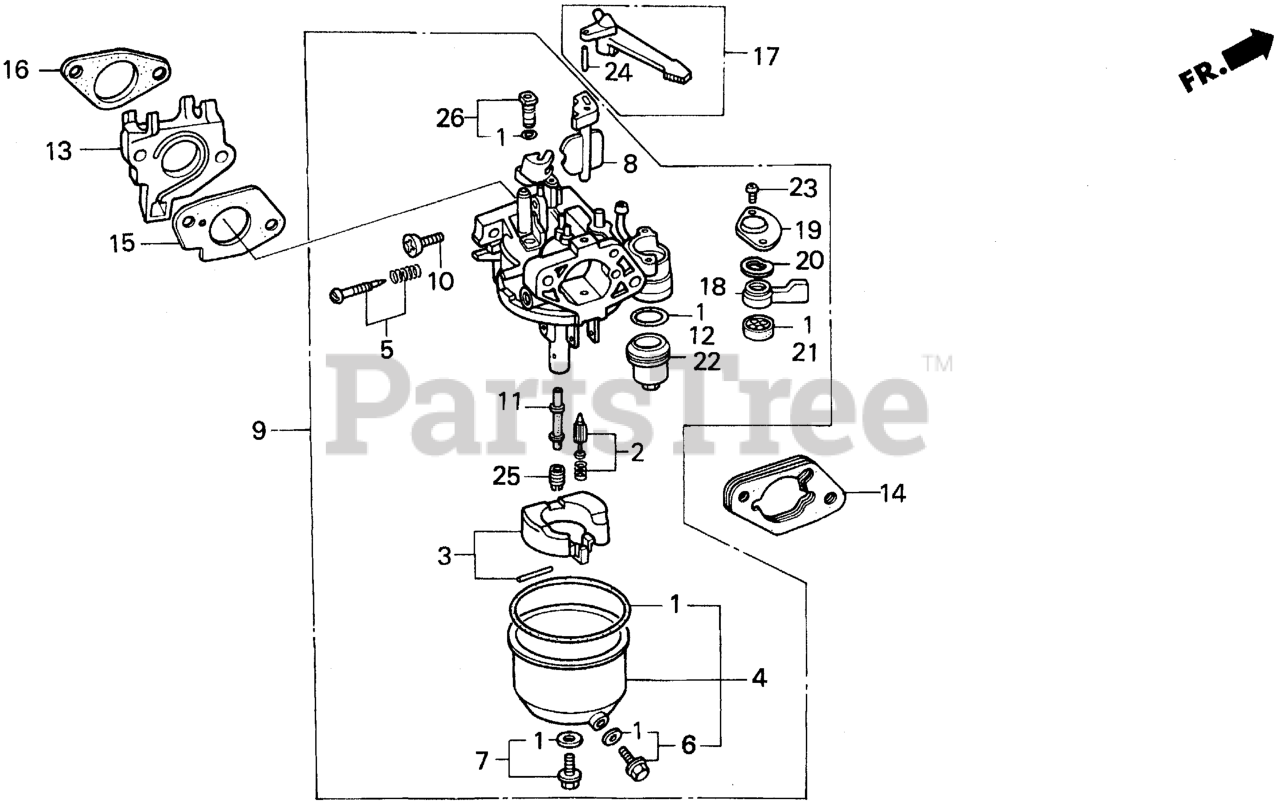

EG5000X AR (EA7) - Honda Generator, Made in Japan (SN: EA7-4000001 - EA7-4100000) CARBURETOR Parts Diagram

Generator, Made in Japan

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-811

SEE PART DETAILS - SUP; GASKET SET (Honda Code 2107845).
(Superseded to 16010-ZE2-812)

Note: Use up to Engine SN BE30B D.

$18.99

$

In Stock, Qty 5

0

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (INCLUDE 16173-001-004) (INCLUDES 16173-001-004)

Note: Use from Engine SN BE30B E. Use up to Engine SN BE30B D.

$18.99

$

In Stock, Qty 5

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$44.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.)

$14.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE3-811

CHOKE SET (Honda Code 2107852).

$35.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE3-812

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE30B C)
(Superseded to 16100-ZE3-814)

$129.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE3-814

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE30B E) (Honda Code 3442225).

$129.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE3-811

NOZZLE, MAIN (Honda Code 2107878).

$

$

Not available

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.49

$

In Stock, Qty 10

0

13

Honda 16211-ZE3-000

INSULATOR, CARBURETOR (Honda Code 2107886).

$19.99

$

In Stock, only 1 left!

0

14

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

In Stock, Qty 8

0

15

Honda 16221-ZE3-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4329900).
(Superseded to 16221-ZE3-800)

$2.99

$

In Stock, only 3 left!

0

15

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3795358).

$2.99

$

In Stock, only 3 left!

0

16

Honda 16223-ZE3-306

SEE PART DETAILS - SUP; GASKET, INSULATOR (Honda Code 4426714).
(Superseded to 16223-ZE3-800)

$2.99

$

In Stock, only 1 left!

0

16

Honda 16223-ZE3-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3795366).

$2.99

$

In Stock, only 1 left!

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD) (Honda Code 1440114).

$10.99

$

In Stock, only 4 left!

0

18

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE (Honda Code 5167358).

$13.99

$

Usually ships in 3-6 days

0

19

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE30B D.

$4.49

$

In Stock, Qty 7

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE30B E. Use up to Engine SN BE30B D.

$4.49

$

In Stock, Qty 7

0

22

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$22.99

$

In Stock, only 1 left!

0

23

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

Note: Use up to Engine SN BE30B D.

$0.99

$

In Stock, Qty 8

0

23

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use from Engine SN BE30B E.

$

$

Currently unavailable

24

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, Qty 5

0

25

Honda 99101-124-0920

JET, MAIN (#92) Use from Engine SN BB36B A.

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

25

Honda 99101-124-0950

JET, MAIN (#95) (Honda Code 0761395).

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

25

Honda 99101-124-0980

JET, MAIN (#98) (Honda Code 0761403).

$12.99

$

Usually ships in 3-6 days

0

26

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$22.99

$

In Stock, only 1 left!

0
