EG5000CL AT1 (EBEC) - Honda Generator, Made in China (SN: EBEC-1000001 - EBEC-1499999) A.V.R. UNIT (AT,AT1,AT1/A) Parts Diagram

Generator, Made in China

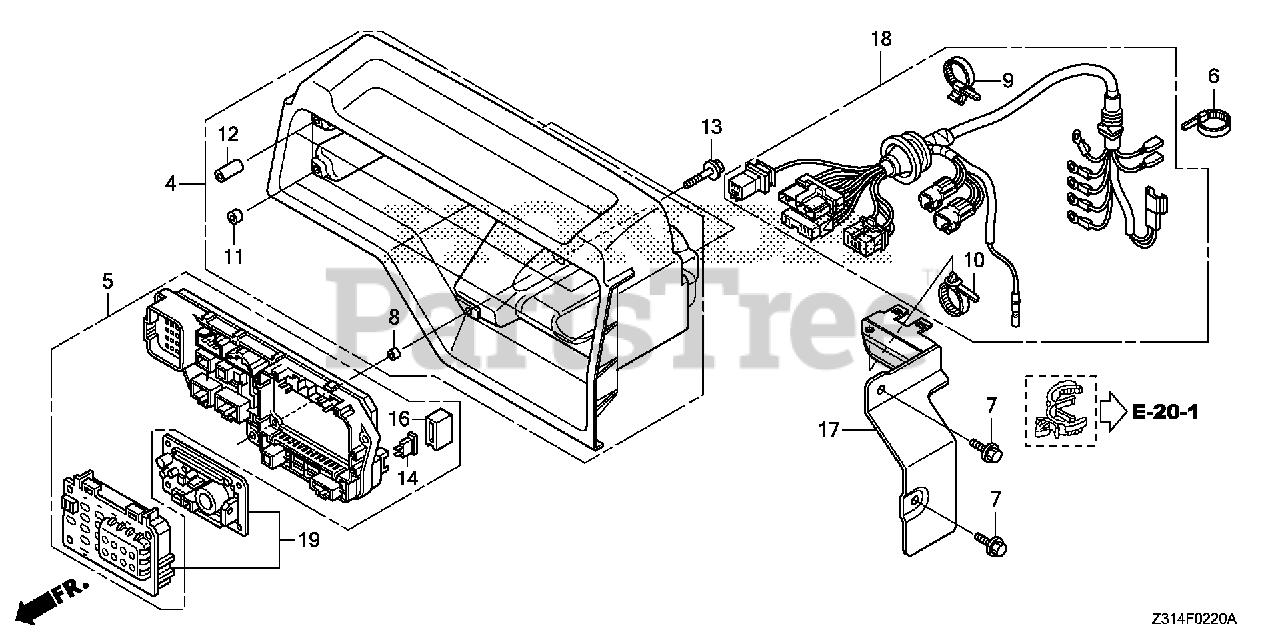

A.V.R. UNIT (AT,AT1,AT1/A) Parts Diagram

  • Title

4

Honda 32356-Z30-000ZA

CASE, CONTROL PANEL *NH314* (CONDUCT GRAY)

$161.99

$

Usually ships in 3-6 days

0

5

Honda 32370-Z30-S32

BOX ASSY., JUNCTION

$694.99

$

Usually ships in 3-6 days

0

6

Honda 32903-Z22-000

TIE, CABLE (C)

$2.49

$

In Stock, only 1 left!

0

7

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

8

Honda 90312-GFM-970

COLLAR, BODY COVER

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90672-Z22-003

CABLE, STRAP

$3.99

$

Usually ships in 3-6 days

0

10

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

11

Honda 91551-Z15-000

COLLAR, CONTROL CASE

$3.49

$

Usually ships in 3-6 days

0

12

Honda 91551-Z30-000

COLLAR, CONTROL CASE

$3.99

$

Usually ships in 3-6 days

0

13

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.49

$

In Stock, Qty 9

0

14

Honda 98200-31000

FUSE, BLADE (10A)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 32371-Z30-D62

COVER, FUSE

$4.99

$

Usually ships in 3-6 days

0

17

Honda 32108-Z30-S30

BASE, HARNESS CLIP

$14.99

$

Usually ships in 3-6 days

0

18

Honda 32158-Z30-S30

WIRE HARNESS ASSY., GENERATOR

$212.99

$

Usually ships in 3-6 days

0

19

Honda 31720-Z31-G30

COVER ASSY., AUTOMATIC VOLTAGE REGULATOR

$433.99

$

Usually ships in 3-6 days

0
