EG5000CL AT1/A (EBEC) - Honda Generator, Made in China (SN: EBEC-1500001 - EBEC-9999999) CONTROL Parts Diagram

Generator, Made in China

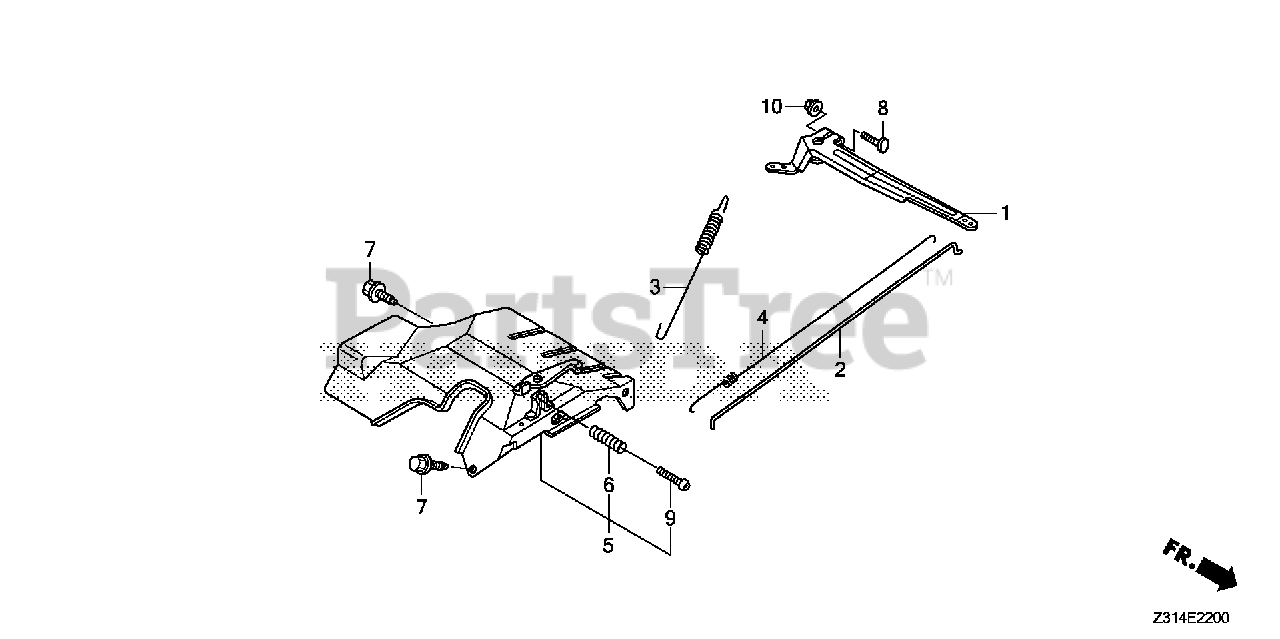

CONTROL Parts Diagram

  • Title
1

Honda 16551-ZE3-000

ARM, GOVERNOR (Honda Code 2107928).

$17.99

$

In Stock, only 1 left!

0

2

Honda 16555-ZE3-000

ROD, GOVERNOR (Honda Code 2107936).

$5.49

$

In Stock, only 1 left!

0

3

Honda 16561-ZK6-D70

SPRING, GOVERNOR

$3.99

$

In Stock, only 2 left!

0

4

Honda 16562-ZE3-000

SPRING, THROTTLE RETURN (Honda Code 2107951).

$4.99

$

In Stock, Qty 6

0

5

Honda 16500-Z1C-E20

CONTROL ASSY.

$53.99

$

Usually ships in 3-6 days

0

6

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 9

0

7

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

8

Honda 90015-Z5T-000

BOLT, GOVERNOR ARM

$0.99

$

Usually ships in 3-6 days

0

9

Honda 93500-05035-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X35) (Honda Code 0331405).

$1.49

$

In Stock, only 3 left!

0

10

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
