EG5000CL AT1/A (EBEC) - Honda Generator, Made in China (SN: EBEC-1500001 - EBEC-9999999) CARBURETOR Parts Diagram

Generator, Made in China

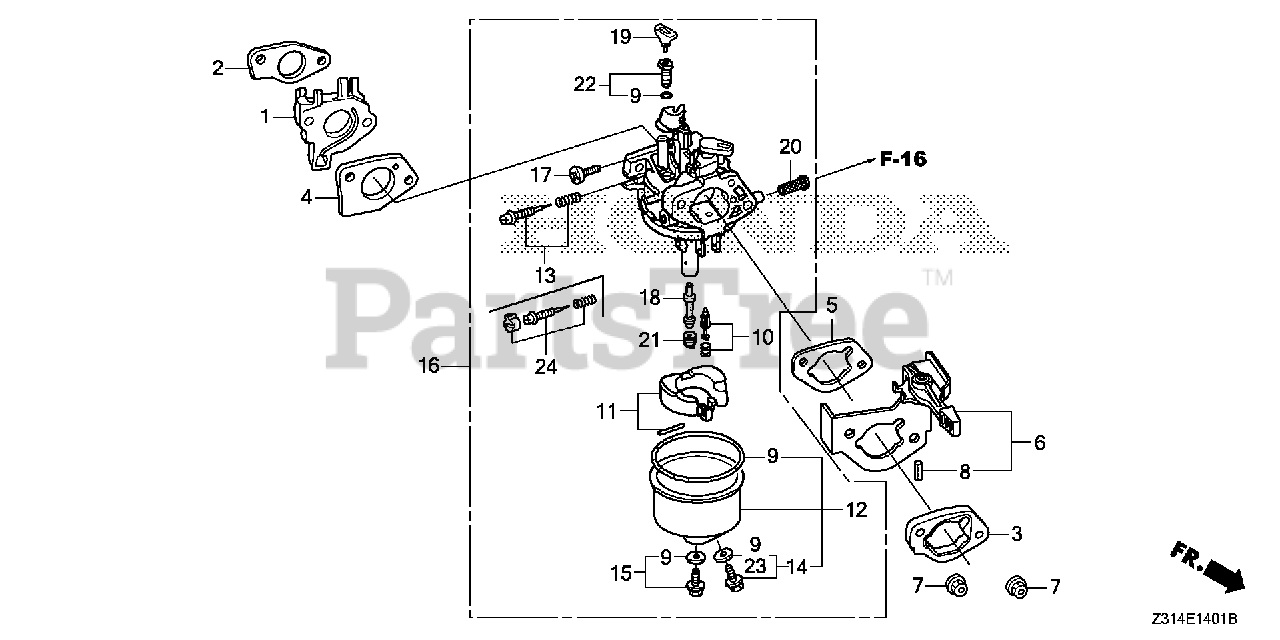

CARBURETOR Parts Diagram

  • Title

1

Honda 16211-Z5T-000

INSULATOR, CARBURETOR

$3.49

$

In Stock, only 4 left!

0

2

Honda 16212-Z5T-000

GASKET, CARBURETOR INSULATOR

$1.49

$

In Stock, only 3 left!

0

3

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

In Stock, only 1 left!

0

4

Honda 16221-Z5T-000

GASKET, CARBURETOR

$1.49

$

In Stock, Qty 20+

0

5

Honda 17228-Z5T-000

GASKET, AIR CLEANER

$5.49

$

In Stock, only 2 left!

0

6

Honda 16620-Z1C-000

BASE, CHOKE

$100.99

$

Usually ships in 3-6 days

0

7

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

8

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, Qty 5

0

9

Honda 16010-ZF5-900

GASKET SET

$17.99

$

Usually ships in 3-6 days

0

10

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

In Stock, only 2 left!

0

11

Honda 16013-Z1C-003

FLOAT SET (CARBURETOR NO.)

$53.99

$

Usually ships in 3-6 days

0

12

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$44.99

$

Usually ships in 3-6 days

0

14

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

15

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

16

Honda 16100-Z1C-EA1

CARBURETOR ASSY. (BE95L A)

$58.99

$

Usually ships in 3-6 days

0

17

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

18

Honda 16166-Z1C-EA1

NOZZLE, MAIN

$4.99

$

Usually ships in 3-6 days

0

19

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

20

Honda 16176-Z2G-D51

SCREEN, FUEL STRAINER

$10.99

$

In Stock, Qty 6

0

21

Honda 99101-ZH8-1000

JET, MAIN (#100) Use from Engine SN BE87A A to BE87A A.

Note: (Optional).

$7.49

$

In Stock, Qty 9

0

21

Honda 99101-ZH8-1020

JET, MAIN (#102) (ADVENTURE GREEN) (CARBURETOR NO.)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

21

Honda 99101-ZH8-1080

JET, MAIN (#108) (CARBURETOR NO.)

$8.99

$

Usually ships in 3-6 days

0

22

Honda 99204-ZE0-0380

JET SET, PILOT (#38) (Honda Code 3353075).

$22.99

$

In Stock, only 2 left!

0

23

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN) (CARBURETOR NO.)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

24

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

$20.99

$

In Stock, only 3 left!

0
