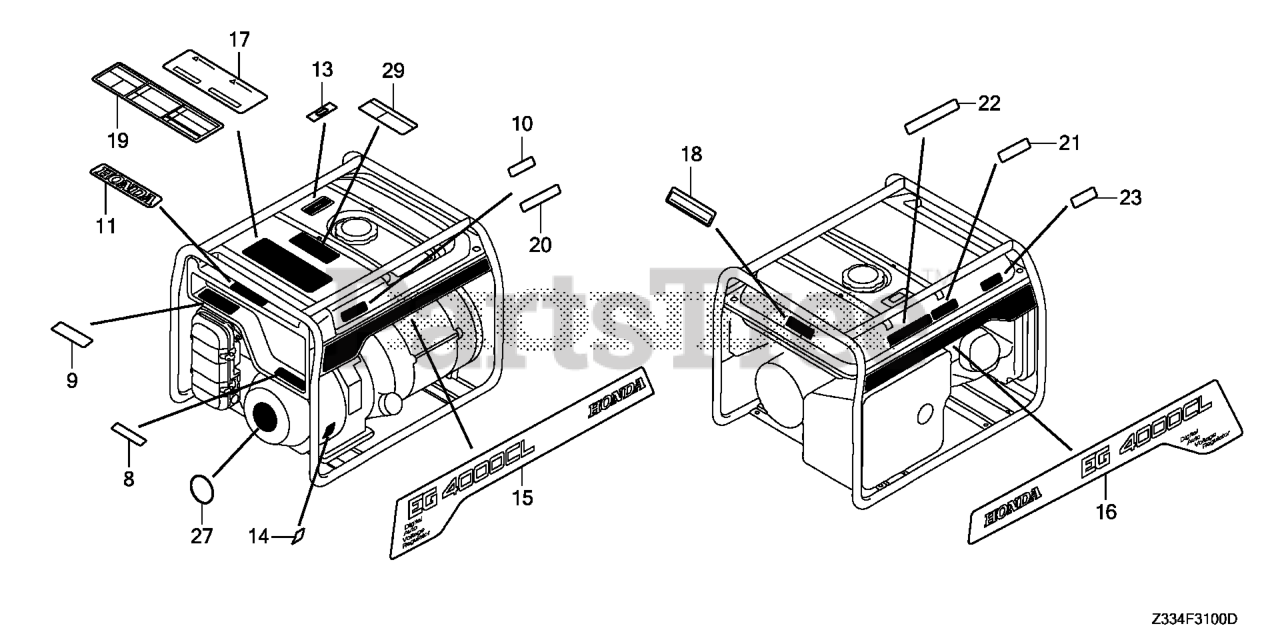

EG4000CL AT1 (EBGC) - Honda Generator, Made in China (SN: EBGC-1000001 - EBGC-1499999) LABEL Parts Diagram

Generator, Made in China

LABEL Parts Diagram

  • Title

8

Honda 87301-Z33-S30

MARK, FR. EMBLEM (EG4000CL)

$6.99

$

Usually ships in 3-6 days

0

9

Honda 87403-Z30-S30

MARK, OPERATION

$11.99

$

Usually ships in 3-6 days

0

10

Honda 87530-ZR4-H60

LABEL, OIL ALERT

$2.49

$

Usually ships in 3-6 days

0

11

Honda 87531-Z30-000

MARK, HONDA

$9.49

$

Usually ships in 3-6 days

0

13

Honda 87565-Z22-620

PLATE, FUEL INDICATION

$10.99

$

Usually ships in 3-6 days

0

14

Honda 87594-ZR4-V60

MARK, OIL CHECK

$3.99

$

Usually ships in 3-6 days

0

15

Honda 87101-Z33-S30

MARK, EMBLEM (EG4000CL) (L. SIDE)

$30.99

$

Usually ships in 3-6 days

0

16

Honda 87102-Z33-S30

MARK, EMBLEM (EG4000CL) (R. SIDE)

$30.99

$

Usually ships in 3-6 days

0

18

Honda 87152-Z33-S31

MARK, SPEC
(Superseded to 87152-Z33-S33)

Note: Use up to Frame SN 1020012.

$

$

Not available

18

Honda 87152-Z33-S32

MARK, SPEC
(Superseded to 87152-Z33-S34)

Note: Use from Frame SN 1020013.

$42.99

$

Usually ships in 3-6 days

0

19

Honda 87516-ZS9-A32

SEE PART DETAILS - PRI; LABEL, OPERATOR WARNING (E)

Note: Use up to Frame SN 1011759.

$11.99

$

Usually ships in 3-6 days

0

19

Honda 87516-Z37-C30

LABEL, OPERATOR WARNING (E)

Note: Use from Frame SN 1011760.

$10.99

$

Usually ships in 3-6 days

0

22

Honda 87539-Z30-S30

LABEL, EX. WARNING

$11.99

$

Usually ships in 3-6 days

0

27

Honda 87531-Z15-000

MARK, HONDA

$8.99

$

Usually ships in 3-6 days

0

29

Honda 87123-Z37-C30

LABEL, FUEL WARNING (ENGLISH)

$1.49

$

Usually ships in 3-6 days

0
