EG4000CL AT (EBGC) - Honda Generator, Made in China (SN: EBGC-1000001 - EBGC-9999999) PISTON Parts Diagram

Generator, Made in China

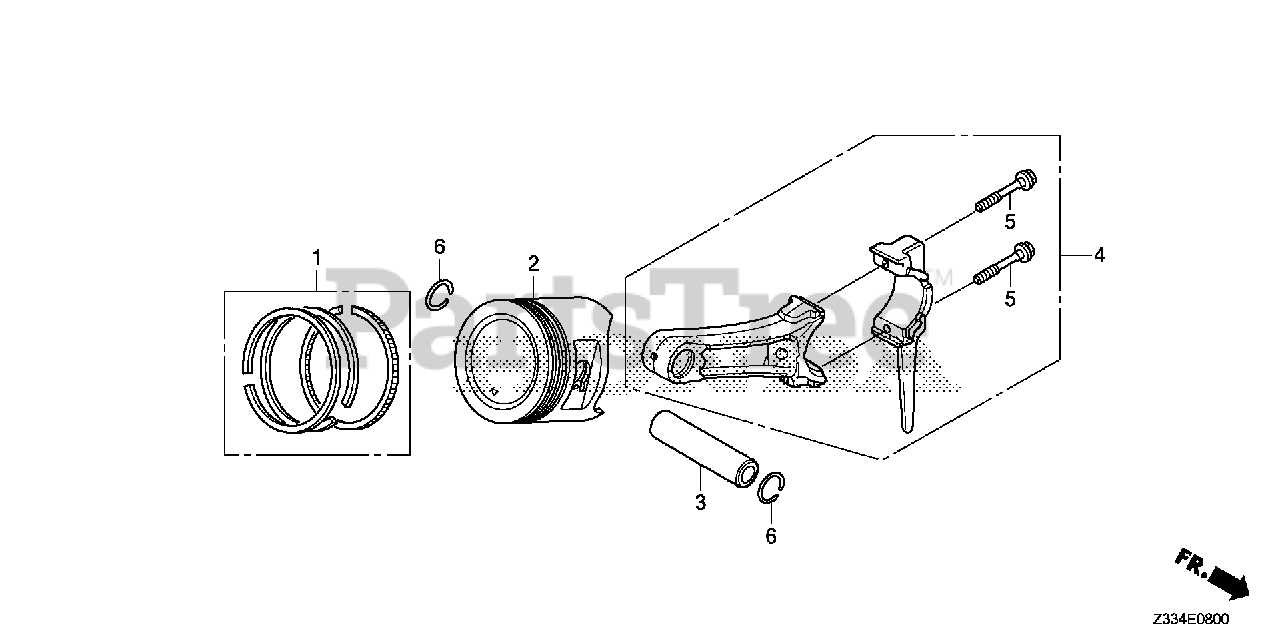

PISTON Parts Diagram

  • Title

1

Honda 13010-Z5K-004

RING SET, PISTON (STD) (TEIKOKU)

$9.49

$

In Stock, only 1 left!

0

1

Honda 13011-Z5K-004

RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z5K-004

RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z5K-004

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional).

$

$

Not available

2

Honda 13101-Z1D-900

SEE PART DETAILS - PRI; PISTON (STD)

$16.99

$

Usually ships in 3-6 days

0

2

Honda 13102-Z5K-000

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-Z5K-000

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-Z5K-000

PISTON (0.75)

Note: (Optional).

$25.99

$

In Stock, only 1 left!

0

3

Honda 13111-Z5K-000

PIN, PISTON

$4.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1D-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 13200-Z1D-900

ROD ASSY., CONNECTING (STD)

$31.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$4.49

$

In Stock, only 1 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.49

$

In Stock, Qty 18

0
