EG4000CL AN (EBGC) - Honda Generator, Made in China (SN: EBGC-1500001 - EBGC-9999999) IGNITION COIL Parts Diagram

Generator, Made in China

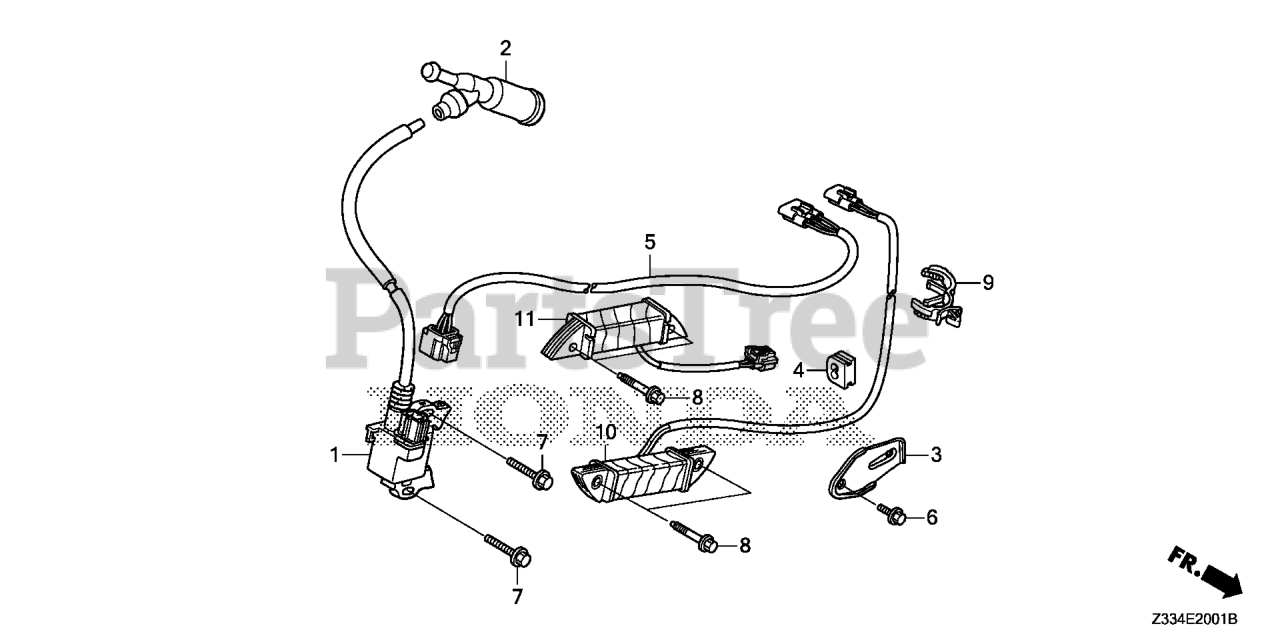

IGNITION COIL Parts Diagram

  • Title
1

Honda 30500-Z5K-003

COIL ASSY., IGNITION

$71.99

$

Usually ships in 3-6 days

0

2

Honda 30700-Z1C-813

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (NGK Y-EZD)

$6.49

$

In Stock, only 1 left!

0

3

Honda 31511-ZE2-000

CLAMP, WIRE (Honda Code 2026540).

$6.49

$

Usually ships in 3-6 days

0

4

Honda 31512-ZE2-000

GROMMET, WIRE (Honda Code 2026557).

$3.99

$

Usually ships in 3-6 days

0

5

Honda 32110-Z1C-E20

WIRE HARNESS ASSY., ENGINE

$79.99

$

Usually ships in 3-6 days

0

6

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

7

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, only 3 left!

0

8

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

9

Honda 90684-ZA0-601

SEE PART DETAILS - PRI; CLIP, WIRE HARNESS (Honda Code 2539138).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 30595-Z1D-E21

COIL ASSY., POWER

$54.99

$

Usually ships in 3-6 days

0

11

Honda 30595-Z1D-D91

COIL ASSY., POWER (CO)

$29.99

$

Usually ships in 3-6 days

0
