EG3500X K1 A/B (EA6) - Honda Generator, Made in Japan (SN: EA6-4119669 - EA6-4149999) EG CONTROL BOX (FROM EA6-4138516) Parts Diagram

Generator, Made in Japan

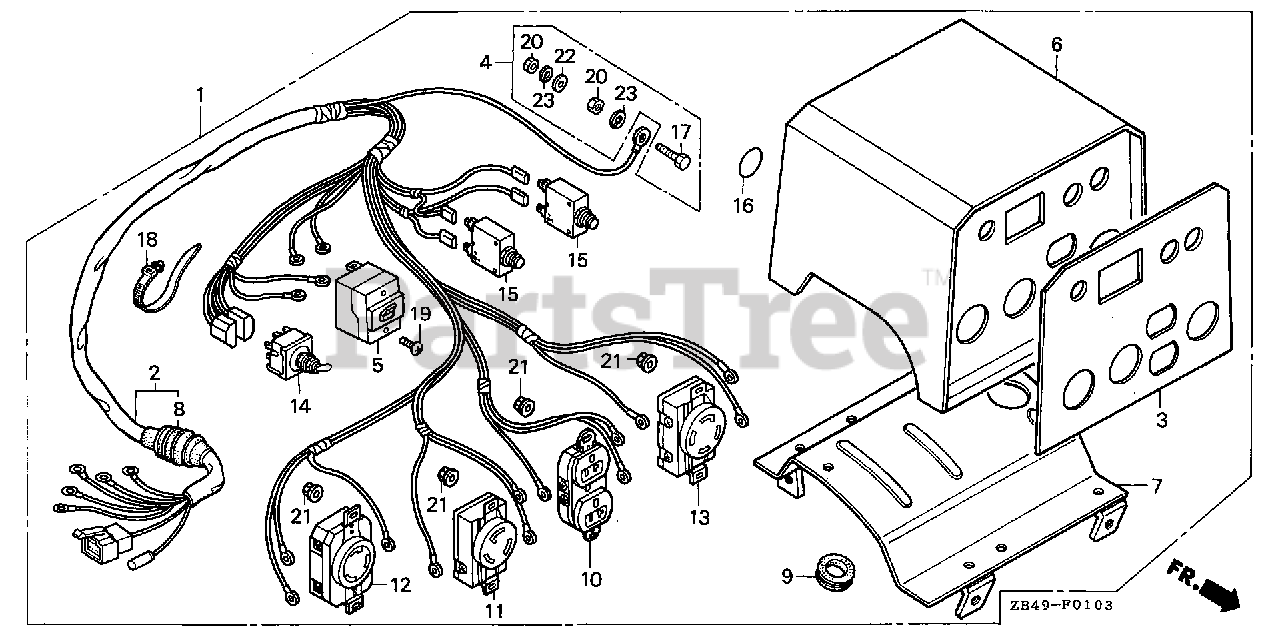

EG CONTROL BOX (FROM EA6-4138516) Parts Diagram

  • Title

1

Honda 31400-ZB4-V31ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use from Frame SN 4138516.

$1435.99

$

Usually ships in 3-6 days

0

2

Honda 31404-ZB4-V31

WIRE HARNESS ASSY.

Note: Use from Frame SN 4138516.

$302.99

$

Usually ships in 3-6 days

0

3

Honda 31406-ZB4-V30

MARK, SWITCH PANEL

Note: Use from Frame SN 4138516.

$49.99

$

Usually ships in 3-6 days

0

4

Honda 31428-ZB4-013

TERMINAL SET, GROUND

Note: Use from Frame SN 4138516.

$12.99

$

Usually ships in 3-6 days

0

5

Honda 31430-ZB4-630

BREAKER, CIRCUIT (14A)

Note: Use from Frame SN 4138516.

$308.99

$

Usually ships in 3-6 days

0

6

Honda 31450-ZC2-V31ZB

BOX, CONTROL *R280* (POWER RED)

Note: Use from Frame SN 4138516.

$235.99

$

Usually ships in 3-6 days

0

7

Honda 31455-ZB4-900ZC

PLATE (LOWER) *R280* (POWER RED)

Note: Use from Frame SN 4138516.

$114.99

$

Usually ships in 3-6 days

0

8

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

Note: Use from Frame SN 4138516.

$15.99

$

Usually ships in 3-6 days

0

9

Honda 31482-ZB4-900

GROMMET, MAIN WIRE

Note: Use from Frame SN 4138516.

$10.99

$

Usually ships in 3-6 days

0

10

Honda 32330-Z03-C31

RECEPTACLE (20A/125V)

Note: Use from Frame SN 4138516.

$55.99

$

In Stock, only 1 left!

0

11

Honda 32331-899-630

RECEPTACLE (20A/125V) (NOT AVAILABLE)

Note: Use from Frame SN 4138516.

$40.99

$

Usually ships in 3-6 days

0

12

Honda 32332-Z04-C31

RECEPTACLE (30A/125V)

Note: Use from Frame SN 4138516.

$63.99

$

Usually ships in 3-6 days

0

13

Honda 32332-899-630

RECEPTACLE (20A-125/250V) (MATSUSHITA) (NOT AVAILABLE)

Note: Use from Frame SN 4138516.

$

$

Not available

14

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

Note: Use from Frame SN 4138516.

$238.99

$

Usually ships in 3-6 days

0

15

Honda 38240-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (20A)
(Superseded to 38240-ZC6-E31)

Note: Use from Frame SN 4138516.

$87.99

$

Usually ships in 3-6 days

0

15

Honda 38240-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

Note: Use from Frame SN 4138516.

$87.99

$

Usually ships in 3-6 days

0

16

Honda 87534-892-640

MARK, GROUND

Note: Use from Frame SN 4138516.

$2.99

$

In Stock, Qty 5

0

17

Honda 90011-899-840

BOLT, HEX. (6X28)

Note: Use from Frame SN 4138516.

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

Note: Use from Frame SN 4138516.

$6.49

$

Usually ships in 3-6 days

0

19

Honda 93500-04006-0H

SCREW, PAN (4X6)

Note: Use from Frame SN 4138516.

$1.49

$

In Stock, Qty 7

0

20

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use from Frame SN 4138516.

$2.49

$

Usually ships in 3-6 days

0

21

Honda 94050-04000

NUT, FLANGE (4MM)

Note: Use from Frame SN 4138516.

$1.99

$

In Stock, only 4 left!

0

22

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: Use from Frame SN 4138516.

$0.99

$

In Stock, Qty 20+

0

23

Honda 94111-06800

WASHER, SPRING (6MM)

Note: Use from Frame SN 4138516.

$1.99

$

Usually ships in 3-6 days

0
