EG3500X AR (EA6) - Honda Generator, Made in Japan (SN: EA6-4000001 - EA6-4100000) AIR CLEANER (EG3500X, K1) Parts Diagram

Generator, Made in Japan

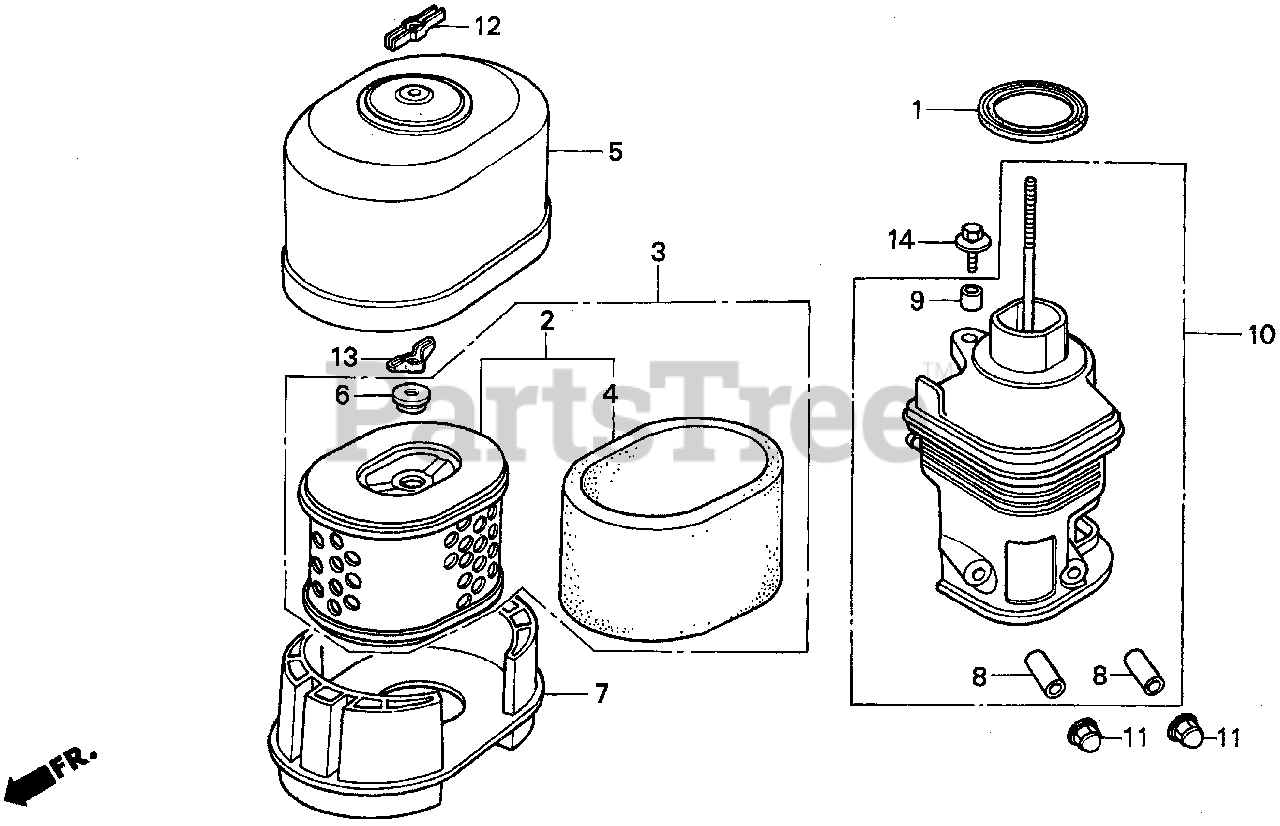

AIR CLEANER (EG3500X, K1) Parts Diagram

  • Title

1

Honda 16271-ZE2-000

SEE PART DETAILS - SUP; GASKET, ELBOW (Honda Code 2025948).
(Superseded to 16271-ZE2-010)

$3.49

$

In Stock, Qty 11

0

2

Honda 17210-ZE2-822

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-ZE2-515)

$15.99

$

Usually ships in 3-6 days

0

3

Honda 17210-ZE2-822

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-ZE2-515)

$15.99

$

Usually ships in 3-6 days

0

4

Honda 17218-ZE2-505

SEE PART DETAILS - PRI; FILTER (OUTER) (Honda Code 5196308).
(Superseded to 17218-ZE2-821)

$11.99

$

Usually ships in 3-6 days

0

5

Honda 17230-ZE2-820

COVER, AIR CLEANER (DUAL) (Honda Code 2026110).

$35.99

$

Usually ships in 3-6 days

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 5

0

7

Honda 17235-ZE2-820

NOSE, MUFFLER (Honda Code 2303865).

$22.99

$

Usually ships in 3-6 days

0

8

Honda 17238-ZE2-310

SEE PART DETAILS - PRI; COLLAR, AIR CLEANER (Honda Code 2384105).

$4.99

$

In Stock, Qty 10

0

9

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

10

Honda 17410-ZE2-030

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$34.99

$

In Stock, only 1 left!

0

11

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

$2.99

$

In Stock, Qty 12

0

12

Honda 90203-PB2-000

SEE PART DETAILS - PRI; WINGNUT, AIR CLEANER COVER (Honda Code 0994855).

$10.99

$

In Stock, only 3 left!

0

13

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

14

Honda 93404-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

$2.49

$

In Stock, only 2 left!

0
