EG3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-4000001 - EA6-4100000) STATOR Parts Diagram

Generator, Made in Japan

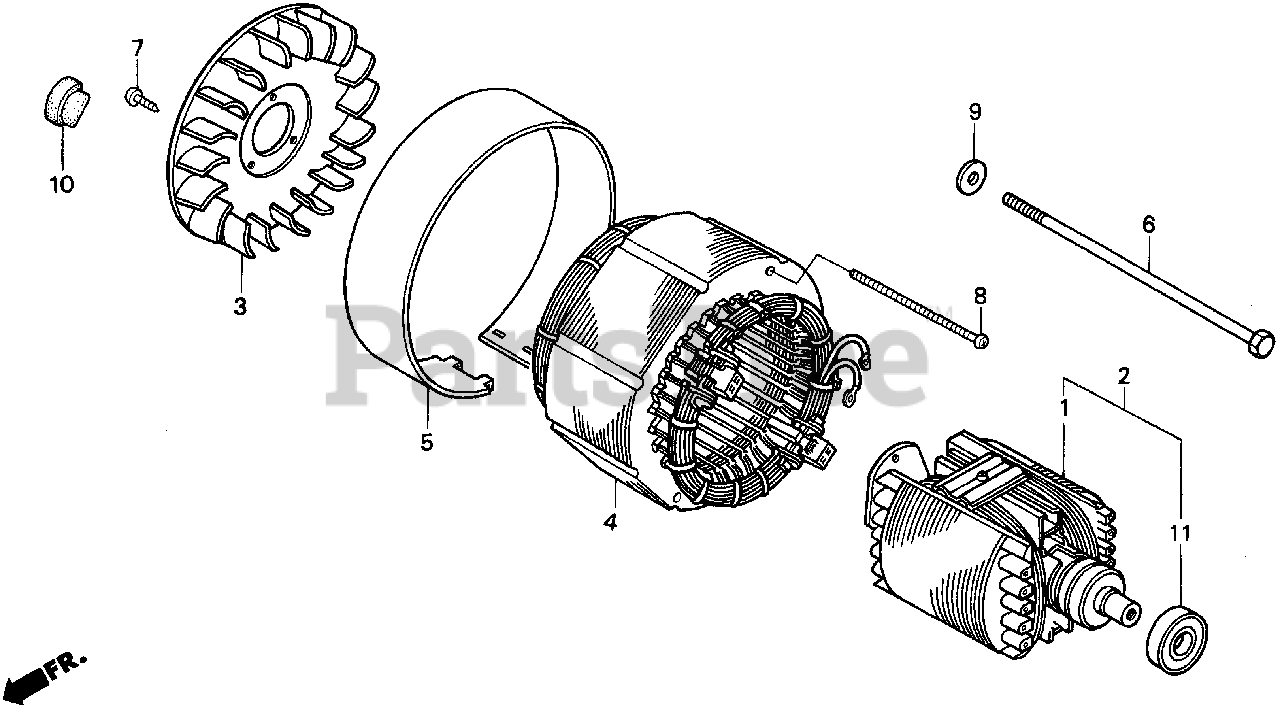

STATOR Parts Diagram

  • Title

1

Honda 311A3-ZB4-003

ROTOR

Note: Use up to Frame SN 4018987.

$

$

Currently unavailable

2

Honda 31130-ZB4-023

SEE PART DETAILS - PRI; ROTOR

Note: Use from Frame SN 4018988.

$1049.99

$

Usually ships in 3-6 days

0

3

Honda 31112-ZB4-003

FAN, GENERATOR COOLING

$123.99

$

Usually ships in 3-6 days

0

4

Honda 31120-ZB4-931

STATOR ASSY.

$1559.99

$

Usually ships in 3-6 days

0

5

Honda 31127-ZB4-631

COVER, STATOR

Note: Use from Frame SN 4033263.

$46.99

$

Usually ships in 3-6 days

0

5

Honda 31127-ZB4-003

COVER, STATOR

$

$

Not available

6

Honda 90021-ZB4-000

BOLT, HEX. (10X210)

$20.99

$

Usually ships in 3-6 days

0

7

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90091-ZB4-003

BOLT-WASHER (5X155)

$10.99

$

Usually ships in 3-6 days

0

9

Honda 90504-ZA0-000

WASHER (10.5MM)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90855-ZB4-000

GROMMET, CRANKCASE

$4.49

$

Usually ships in 3-6 days

0

11

Honda 91051-ZB4-003

BEARING ASSY. (6204)

Note: Use from Frame SN 4018988.

$33.99

$

Usually ships in 3-6 days

0

11

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

Note: Use up to Frame SN 4018987.

$27.99

$

In Stock, only 2 left!

0
