EG3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-4000001 - EA6-4100000) MUFFLER (EG3500X, K1) Parts Diagram
Generator, Made in Japan

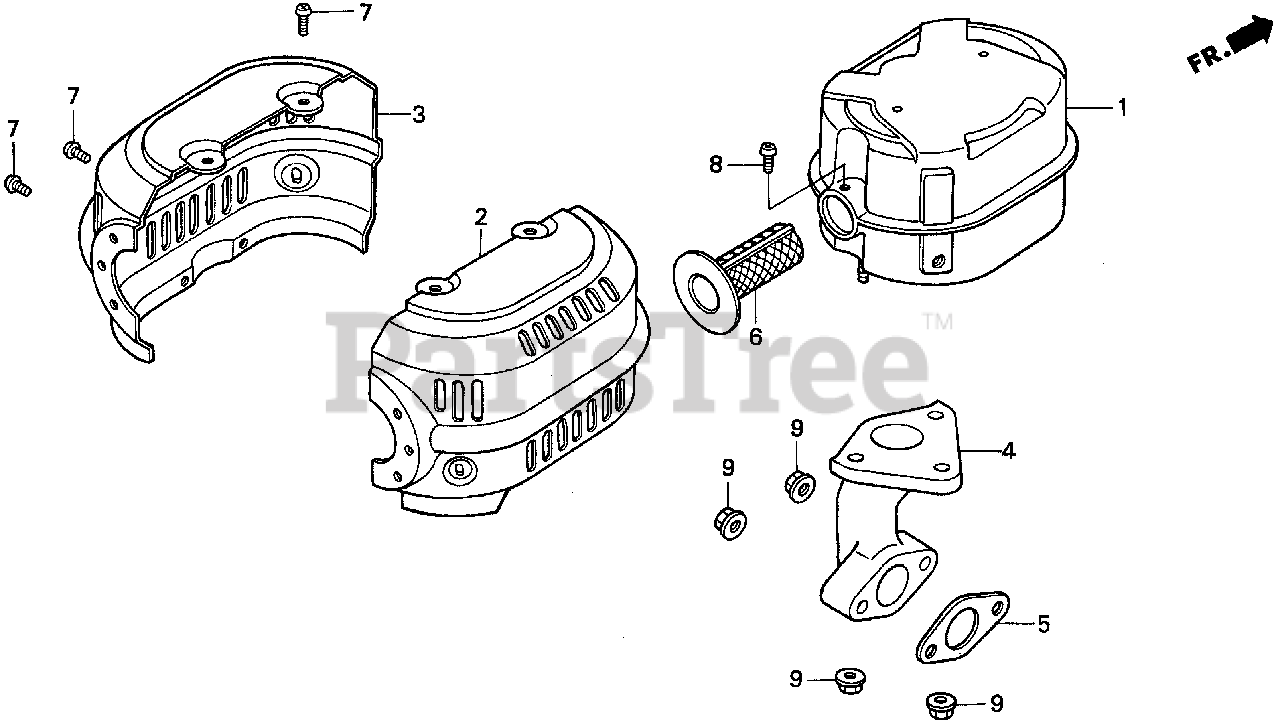

MUFFLER (EG3500X, K1) Parts Diagram
Honda 18310-ZE2-822
SEE PART DETAILS - PRI; MUFFLER (SILENT)
$147.99
$
Usually ships in 3-6 days
Honda 18320-ZE2-P50
SEE PART DETAILS - PRI; PROTECTOR, R. MUFFLER (SILENT) (Honda Code 4024865).
(Superseded to 18320-ZE2-P51)
$45.99
$
Usually ships in 3-6 days
Honda 18320-ZE2-P51
SEE PART DETAILS - PRI; PROTECTOR, R. MUFFLER (SILENT)
$45.99
$
Usually ships in 3-6 days
Honda 18325-ZE2-P50
SEE PART DETAILS - PRI; PROTECTOR, L. MUFFLER (SILENT) (Honda Code 4024881).
$61.99
$
Usually ships in 3-6 days
Honda 18330-ZE2-000
PIPE, EX. (Honda Code 2026219).
$76.99
$
In Stock, only 2 left!
Honda 18333-ZE3-800
SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)
$5.49
$
In Stock, Qty 20+
Honda 18333-ZK6-Y00
SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).
$5.49
$
In Stock, Qty 20+
Honda 18355-ZE2-000
ARRESTER, SPARK
(Superseded to 18355-ZE2-010)
Note: Use up to Engine SN 1118878.
$27.99
$
Usually ships in 3-6 days
Honda 18355-ZE2-010
SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 2482594).
$27.99
$
Usually ships in 3-6 days
Honda 90050-ZE1-000
SCREW, TAPPING (5X8) (Honda Code 1431105).
$2.49
$
In Stock, Qty 20+
Honda 90055-ZE1-000
SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)
$1.49
$
In Stock, Qty 20+
Honda 94050-08000
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).
$1.49
$
In Stock, Qty 20+
