EG3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-4000001 - EA6-4100000) FUEL TANK (EG3500X, K1) Parts Diagram

Generator, Made in Japan

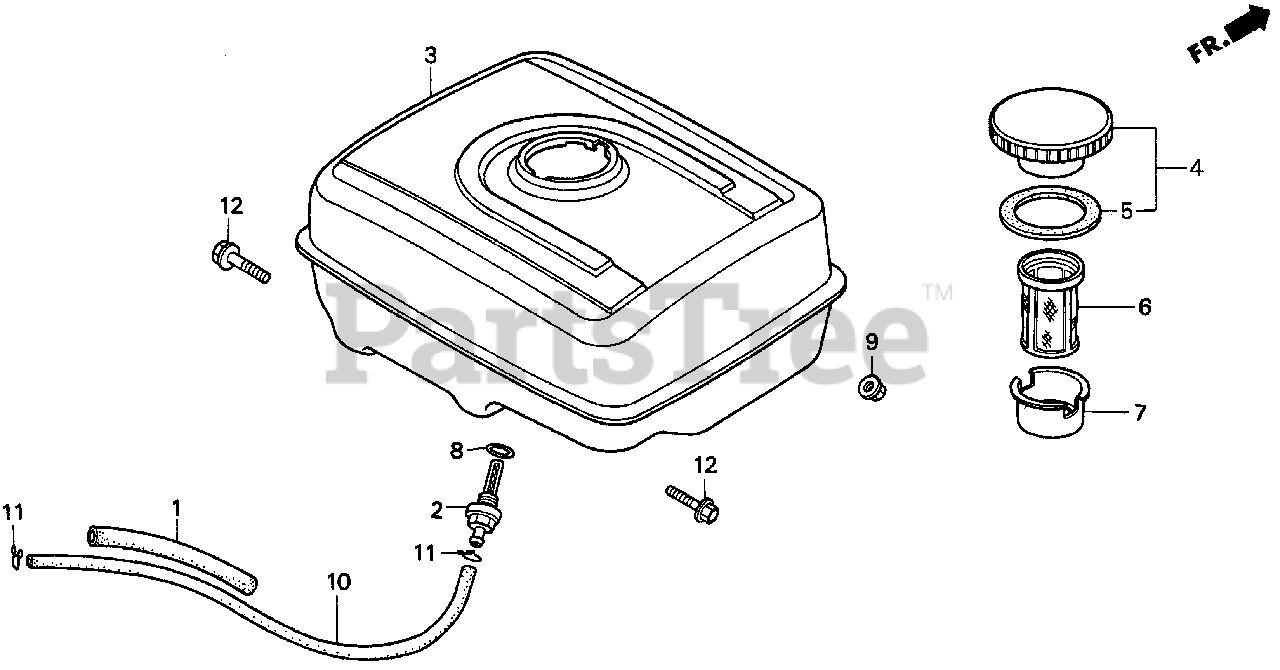

FUEL TANK (EG3500X, K1) Parts Diagram

  • Title

1

Honda 16854-ZE1-000

SEE PART DETAILS - SUP; RUBBER, SUPPORTER (107MM)
(Superseded to 16854-ZH8-000)

Note: Use up to Engine SN 1523056.

$5.49

$

In Stock, Qty 12

0

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE2-801ZC

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

$291.99

$

Usually ships in 3-6 days

0

4

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK) Use up to Engine SN 2115700.
(Superseded to 17620-Z0T-305)

$

$

Not available

5

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1543258.
(Superseded to 17631-329-013)

$

$

Not available

6

Honda 17672-880-000

FILTER, FUEL Use from Engine SN 1370795.

$14.99

$

Usually ships in 3-6 days

0

7

Honda 17673-893-000

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER (Honda Code 0788109).

$15.99

$

In Stock, only 2 left!

0

8

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

8

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

9

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

10

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 1 left!

0

11

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

12

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 1 left!

0
