EG3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-4000001 - EA6-4100000) CONTROL BOX (EG3500X) Parts Diagram

Generator, Made in Japan

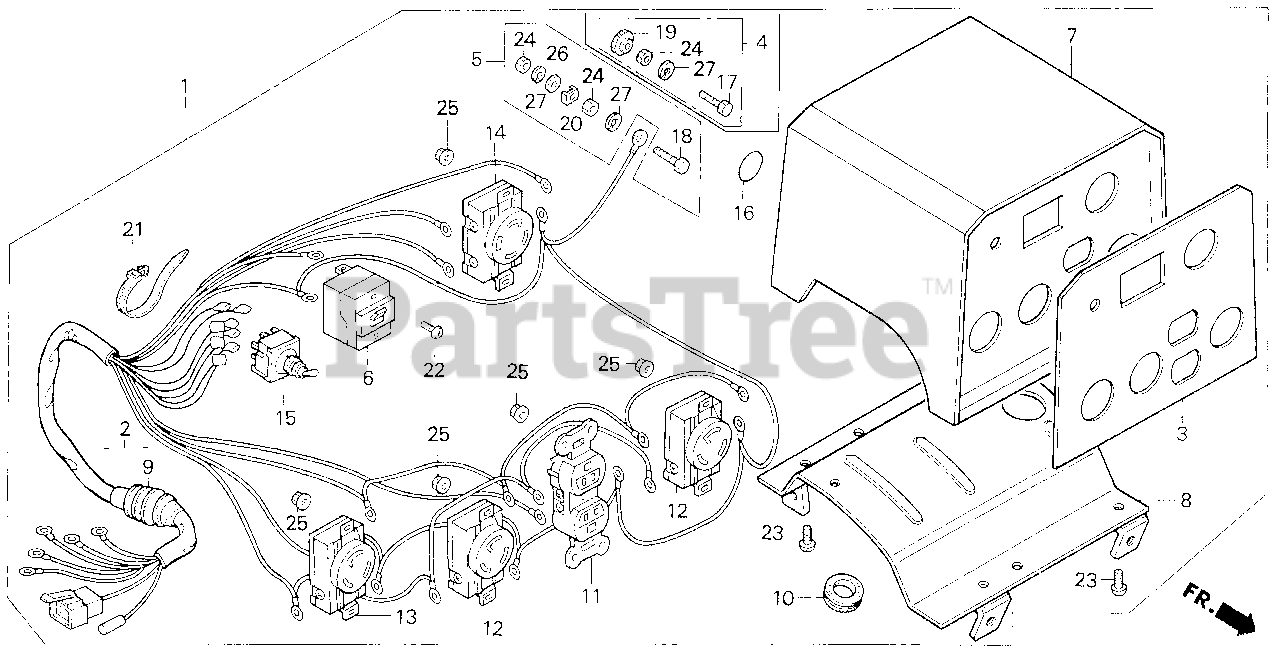

CONTROL BOX (EG3500X) Parts Diagram

  • Title

1

Honda 31400-ZB4-932ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

2

Honda 31404-ZB4-932

WIRE HARNESS ASSY.

$

$

Not available

3

Honda 31406-ZB4-930

MARK, SWITCH PANEL (NOT AVAILABLE)

Note: Use up to Frame SN 4011133.

$

$

Currently unavailable

3

Honda 31406-ZB4-931

PLATE, CONTROL INDICATION (NOT AVAILABLE)

Note: Use from Frame SN 4011134.

$

$

Currently unavailable

4

Honda 31428-ZB4-013

TERMINAL SET, GROUND

$12.99

$

Usually ships in 3-6 days

0

5

Honda 31428-899-840

TERMINAL SET, GROUND

Note: Use from Frame SN 4033263.

$25.99

$

Usually ships in 3-6 days

0

6

Honda 31430-ZB4-630

BREAKER, CIRCUIT (13A)

$308.99

$

Usually ships in 3-6 days

0

7

Honda 31450-ZB4-931ZB

SEE PART DETAILS - PRI; BOX, CONTROL *R280* (POWER RED)

$213.99

$

Usually ships in 3-6 days

0

8

Honda 31455-ZB4-900ZA

SEE PART DETAILS - PRI; PLATE (LOWER) *NH105* (MAT BLACK)

$

$

Not available

9

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

$15.99

$

Usually ships in 3-6 days

0

10

Honda 31482-ZB4-900

GROMMET, MAIN WIRE

$10.99

$

Usually ships in 3-6 days

0

11

Honda 32330-899-631

RECEPTACLE (20A/125V) (MATSUSHITA)

$76.99

$

Usually ships in 3-6 days

0

12

Honda 32331-899-630

RECEPTACLE (20A/125V) (NOT AVAILABLE)

$40.99

$

Usually ships in 3-6 days

0

13

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$50.99

$

In Stock, only 1 left!

0

14

Honda 32332-899-630

RECEPTACLE (20A-125/250V) (MATSUSHITA) (NOT AVAILABLE)

$

$

Not available

15

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$238.99

$

Usually ships in 3-6 days

0

16

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, Qty 5

0

17

Honda 90011-ZB4-000

BOLT, HEX. (6X22)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90011-899-840

BOLT, HEX. (6X28)

Note: Use from Frame SN 4033263.

$4.99

$

Usually ships in 3-6 days

0

19

Honda 90381-812-710

NUT, SPECIAL (6MM)

Note: Use up to Frame SN 4033262.

$2.99

$

In Stock, only 1 left!

0

20

Honda 90501-ZA7-640

RETAINER (6MM)

Note: Use from Frame SN 4033263.

$4.49

$

In Stock, only 1 left!

0

21

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$6.49

$

Usually ships in 3-6 days

0

22

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 7

0

23

Honda 93500-06010-0H

SCREW, PAN (6X10)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use up to Frame SN 4033262.

$2.49

$

Usually ships in 3-6 days

0

24

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use from Frame SN 4033263.

$2.49

$

Usually ships in 3-6 days

0

25

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 4 left!

0

26

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

Note: Use from Frame SN 4033263.

$0.99

$

In Stock, Qty 20+

0

27

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

Note: Use up to Frame SN 4033262.

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

Note: Use from Frame SN 4033263.

$1.99

$

Usually ships in 3-6 days

0
