EG2500X K1 A/C (EZCR) - Honda Generator, Made in Japan (SN: EZCR-1120001 - EZCR-1123343) RECOIL STARTER (3) Parts Diagram

Generator, Made in Japan

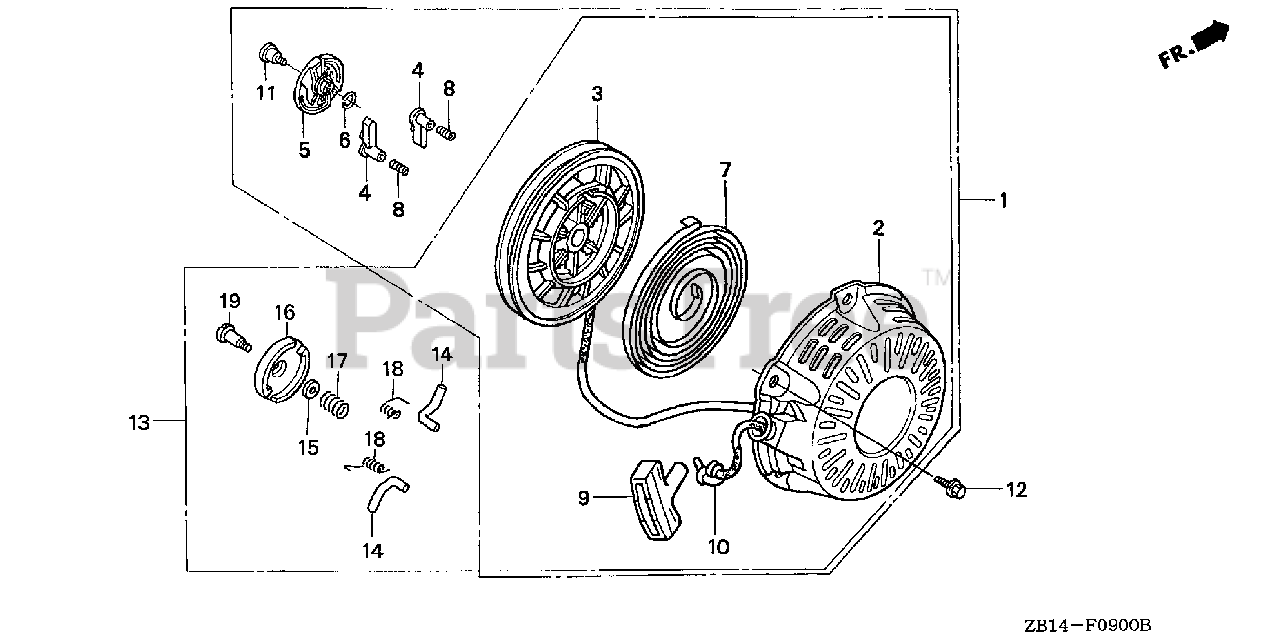

RECOIL STARTER (3) Parts Diagram

  • Title

1

Honda 28400-ZH8-013ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK) (ENGINE NO.)

Note: Use up to Frame SN 8805657.

$126.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZH8-003ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$144.99

$

Usually ships in 3-6 days

0

3

Honda 28420-ZH8-013

SEE PART DETAILS - PRI; REEL, RECOIL STARTER (NATURAL) (ENGINE NO.)

Note: Use up to Frame SN 8805657.

$44.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZH8-801

REEL, RECOIL STARTER (BLACK) (ENGINE NO.)

Note: Use from Frame SN 8805658.

$35.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-013

RATCHET, STARTER (ENGINE NO.)

Note: Use up to Frame SN 8805657.

$8.99

$

In Stock, only 1 left!

0

5

Honda 28433-ZH8-003

GUIDE, RATCHET (ENGINE NO.)

Note: Use up to Frame SN 8805657.

$12.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZH8-003

SPRING, FRICTION (ENGINE NO.)

Note: Use up to Frame SN 8805657.

$6.49

$

In Stock, only 1 left!

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$18.99

$

In Stock, only 4 left!

0

8

Honda 28443-ZH8-003

SPRING, RETURN (ENGINE NO.)

Note: Use up to Frame SN 8805657.

$5.99

$

In Stock, only 1 left!

0

9

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

$8.49

$

In Stock, Qty 8

0

10

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER

$12.99

$

In Stock, only 4 left!

0

11

Honda 90003-ZH8-003

SCREW, SETTING (ENGINE NO.)

Note: Use up to Frame SN 8805657.

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 11

0

13

Honda 28400-ZH8-023ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *NH1* (BLACK) (ENGINE NO.)

Note: Use from Frame SN 8805658.

$

$

Not available

14

Honda 28422-ZH8-801

RATCHET, STARTER (ENGINE NO.)

Note: Use from Frame SN 8805658.

$6.49

$

In Stock, Qty 6

0

15

Honda 28431-ZH8-801

PLATE, FRICTION (ENGINE NO.)

Note: Use from Frame SN 8805658.

$5.49

$

Usually ships in 3-6 days

0

16

Honda 28433-ZH8-801

GUIDE, RATCHET (ENGINE NO.)

Note: Use from Frame SN 8805658.

$8.99

$

Usually ships in 3-6 days

0

17

Honda 28441-ZH8-801

SPRING, FRICTION (ENGINE NO.)

Note: Use from Frame SN 8805658.

$4.49

$

Usually ships in 3-6 days

0

18

Honda 28443-ZH8-801

SPRING, RETURN (ENGINE NO.)

Note: Use from Frame SN 8805658.

$3.49

$

In Stock, only 1 left!

0

19

Honda 90003-ZH8-801

SCREW, SETTING (ENGINE NO.)

Note: Use from Frame SN 8805658.

$4.49

$

In Stock, only 2 left!

0
