EG2200X AR (GX140) - Honda Generator, Made in Japan (SN: GX140-1000001 - GX140-3263982) REAR HOUSING Parts Diagram

Generator, Made in Japan

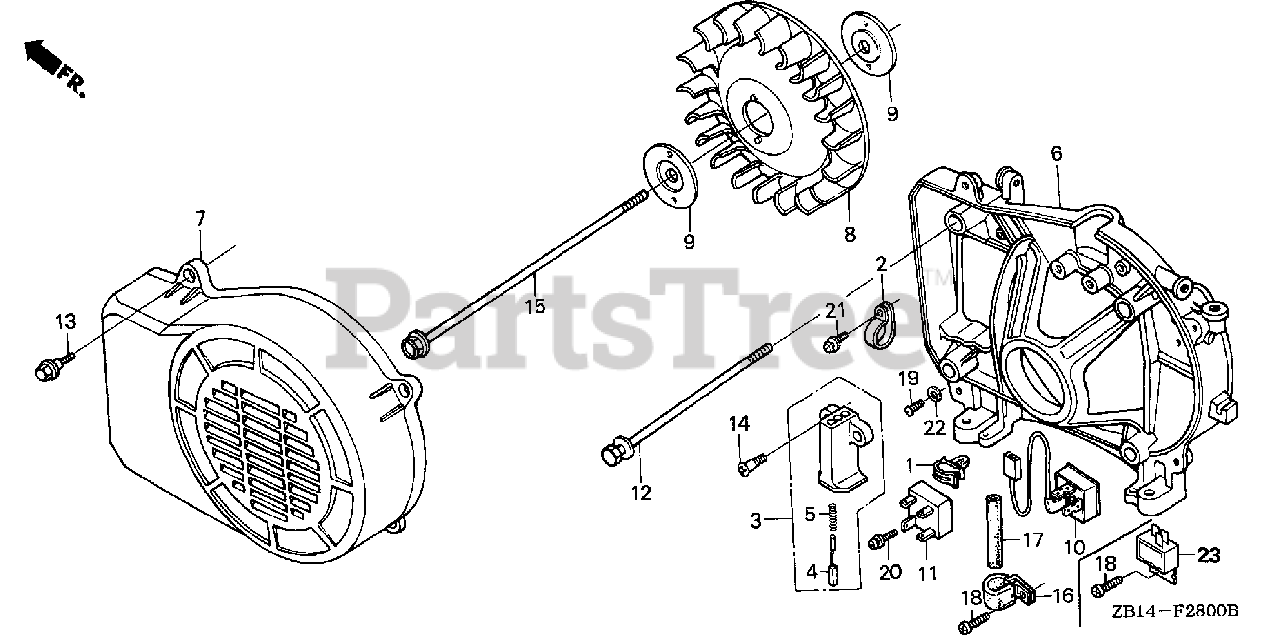

REAR HOUSING Parts Diagram

  • Title
2

Honda 30566-895-000

CLAMP C, CABLE

$4.99

$

Usually ships in 3-6 days

0

3

Honda 31160-ZA5-000

HOLDER ASSY., BRUSH

$78.99

$

In Stock, only 1 left!

0

$

$

Not available

5

Honda 31163-ZA5-300

SPRING, BRUSH

$2.49

$

Usually ships in 3-6 days

0

6

Honda 31170-ZB2-010

SEE PART DETAILS - SUP; HOUSING, RR.
(Superseded to 31170-ZB2-020)

Note: Use up to Frame SN 1700037.

$252.99

$

Usually ships in 3-6 days

0

6

Honda 31170-ZB2-010

SEE PART DETAILS - SUP; HOUSING, RR.
(Superseded to 31170-ZB2-020)

Note: Use from Frame SN 1700701.

$252.99

$

Usually ships in 3-6 days

0

6

Honda 31170-ZB2-020

SEE PART DETAILS - PRI; HOUSING, RR.

Note: Use up to Frame SN 1700037.

$252.99

$

Usually ships in 3-6 days

0

6

Honda 31170-ZB2-020

SEE PART DETAILS - PRI; HOUSING, RR.

Note: Use from Frame SN 1700701.

$252.99

$

Usually ships in 3-6 days

0

6

Honda 31170-ZB2-950

HOUSING, RR.

Note: Use from Frame SN 1700038 to 1700700.

$247.99

$

Usually ships in 3-6 days

0

7

Honda 31180-ZA5-000

COVER, GENERATOR END

$

$

Currently unavailable

8

Honda 31190-ZA5-000

FAN, COOLING

$

$

Not available

9

Honda 31191-ZA5-000

PLATE, FAN

$8.49

$

Usually ships in 3-6 days

0

10

Honda 31700-ZB3-700

DIODE, D.C.

$

$

Not available

12

Honda 90013-ZB3-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X137)

$9.99

$

In Stock, only 4 left!

0

13

Honda 90015-ZA5-000

BOLT, GENERATOR END COVER

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90018-ZA5-000

BOLT, STATOR COVER SETTING

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90021-ZB3-010

SEE PART DETAILS - PRI; BOLT, FLANGE (8X175)

$14.99

$

Usually ships in 3-6 days

0

16

Honda 91405-ZB3-700

CLIP, WIRE

$

$

Not available

17

Honda 91407-ZB3-700

TUBE, WIRE

$

$

Not available

18

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

19

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93891-04018-08

SCREW-WASHER (4X18)

$

$

Not available

21

Honda 93891-05012-00

SCREW-WASHER (5X12)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
