EG2200X AR (GX140) - Honda Generator, Made in Japan (SN: GX140-1000001 - GX140-3263982) CONTROL BOX (EG2200X) Parts Diagram

Generator, Made in Japan

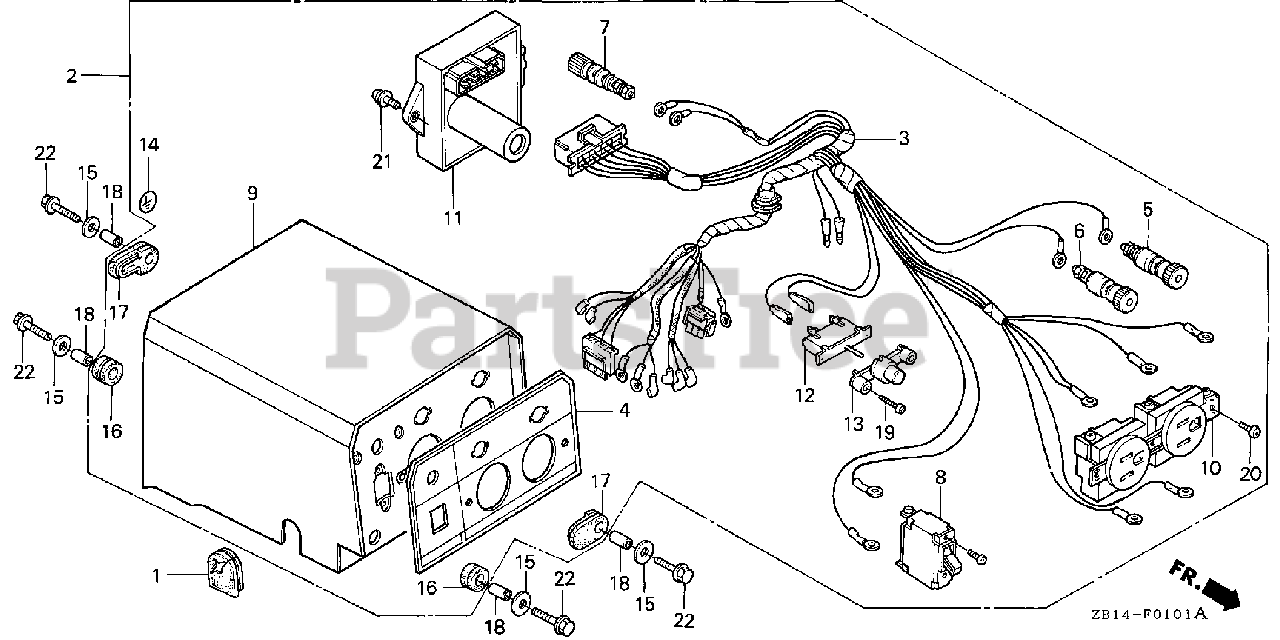

CONTROL BOX (EG2200X) Parts Diagram

  • Title

1

Honda 30564-ZA5-000

GROMMET, WIRE

$6.99

$

Usually ships in 3-6 days

0

2

Honda 31400-ZB3-832

BOX ASSY., CONTROL

Note: Use up to Frame SN 2313007.

$

$

Not available

2

Honda 31400-ZB3-832

BOX ASSY., CONTROL

Note: Use from Frame SN 2313008.

$

$

Not available

3

Honda 31404-ZB3-831

WIRE HARNESS ASSY.

$

$

Currently unavailable

4

Honda 31406-ZB3-830

MARK, SWITCH PANEL (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 31408-880-000

TERMINAL, D.C. OUTPUT (+)

$50.99

$

Usually ships in 3-6 days

0

6

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUTPUT (-)

$50.99

$

Usually ships in 3-6 days

0

7

Honda 31428-ZA5-003

TERMINAL ASSY., GROUND

$

$

Not available

8

Honda 31430-ZB3-630

BREAKER, CIRCUIT (17.5A)

$

$

Not available

9

Honda 31450-ZB3-830

BOX, CONTROL

$

$

Currently unavailable

10

Honda 32330-877-000

RECEPTACLE (15A/125V)

$88.99

$

Usually ships in 3-6 days

0

11

Honda 32350-ZB3-702

SEE PART DETAILS - SUP; REGULATOR UNIT, AUTOMATIC
(Superseded to 32350-ZB3-703)

$213.99

$

Usually ships in 3-6 days

0

11

Honda 32350-ZB3-703

SEE PART DETAILS - PRI; REGULATOR UNIT, AUTOMATIC

$213.99

$

Usually ships in 3-6 days

0

12

Honda 38240-898-000

PROTECTOR, CIRCUIT (D.C.)

$39.99

$

In Stock, only 4 left!

0

13

Honda 38250-898-000

LENS ASSY., PROTECTOR

$26.99

$

Usually ships in 3-6 days

0

14

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, Qty 5

0

15

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

16

Honda 90852-898-000

RUBBER, CONTROL BOX

$5.49

$

In Stock, only 2 left!

0

17

Honda 90853-ZB2-000

RUBBER, CONTROL BOX

$10.99

$

Usually ships in 3-6 days

0

18

Honda 91552-ZA5-000

COLLAR, CONTROL BOX (NA USE ALT:91552-898-000)

$

$

Currently unavailable

19

Honda 93500-03012-0A

SCREW, PAN (3X12)

$1.49

$

In Stock, Qty 6

0

20

Honda 93500-04006-0A

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93891-05012-00

SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, only 3 left!

0
