EG2200X A (GX140) - Honda Generator, Made in Japan (SN: GX140-1000001 - GX140-3263982) ROTOR + STATOR Parts Diagram

Generator, Made in Japan

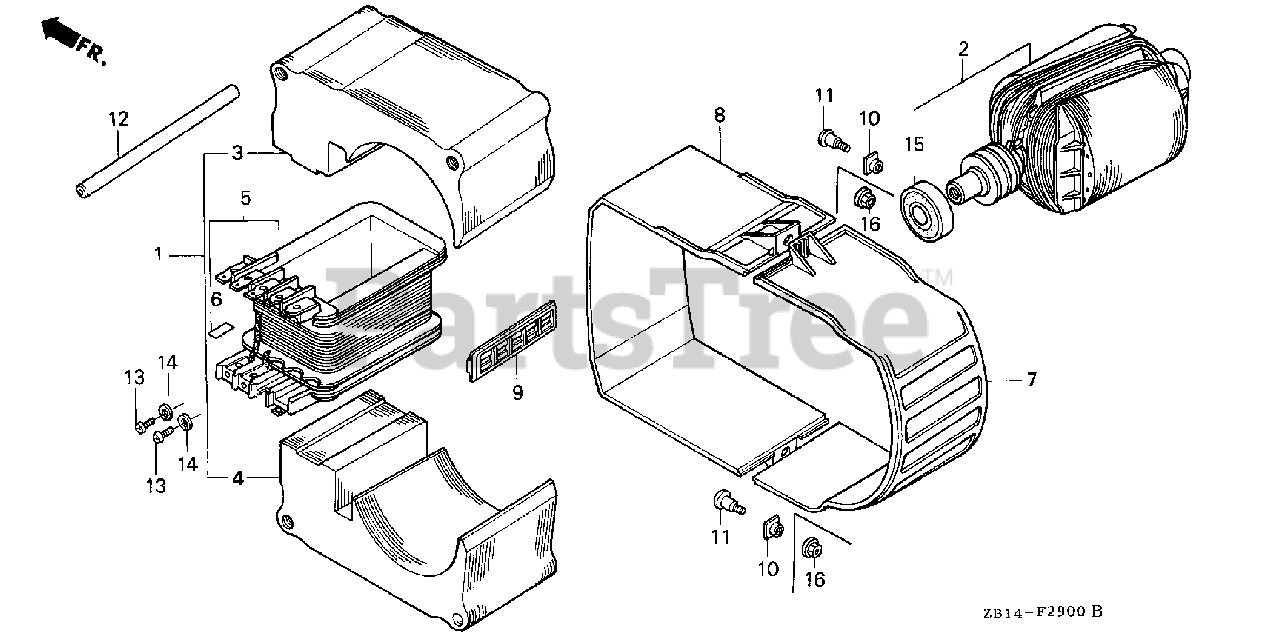

ROTOR + STATOR Parts Diagram

  • Title

1

Honda 311A3-ZB3-000

SEE PART DETAILS - PRI; CORE SET, STATOR

$

$

Not available

1

Honda 311A3-ZB3-610

SEE PART DETAILS - SUP; CORE SET, STATOR

Note: Use from Frame SN 1717219.

$

$

Currently unavailable

2

Honda 31130-ZS2-H62

SEE PART DETAILS - PRI; ROTOR (EZ-R)

$423.99

$

Usually ships in 3-6 days

0

5

Honda 31150-ZB3-631

SEE PART DETAILS - PRI; BOBBIN, STATOR COIL

$

$

Not available

6

Honda 31154-ZA5-830

MARK, WIRE COLOR

$1.49

$

Usually ships in 3-6 days

0

7

Honda 31181-ZB3-000

COVER, R. STATOR (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 31182-ZB3-000

COVER, L. STATOR

$29.99

$

Usually ships in 3-6 days

0

9

Honda 31184-ZB3-000

STIFFENER, STATOR (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 90016-ZA5-000

NUT, SPECIAL (5MM)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90018-ZA5-000

BOLT, STATOR COVER SETTING

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90701-ZB3-000

PIN, DOWEL (11X121)

$27.99

$

Usually ships in 3-6 days

0

13

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 91051-ZB3-003

BEARING ASSY. (6203)

Note: Use from Frame SN 1862233.

$21.99

$

Usually ships in 3-6 days

0

15

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

Note: Use up to Frame SN 1862232.

$22.99

$

In Stock, only 2 left!

0
