EG2200X A (GX140) - Honda Generator, Made in Japan (SN: GX140-1000001 - GX140-3263982) RECOIL STARTER (1) Parts Diagram

Generator, Made in Japan

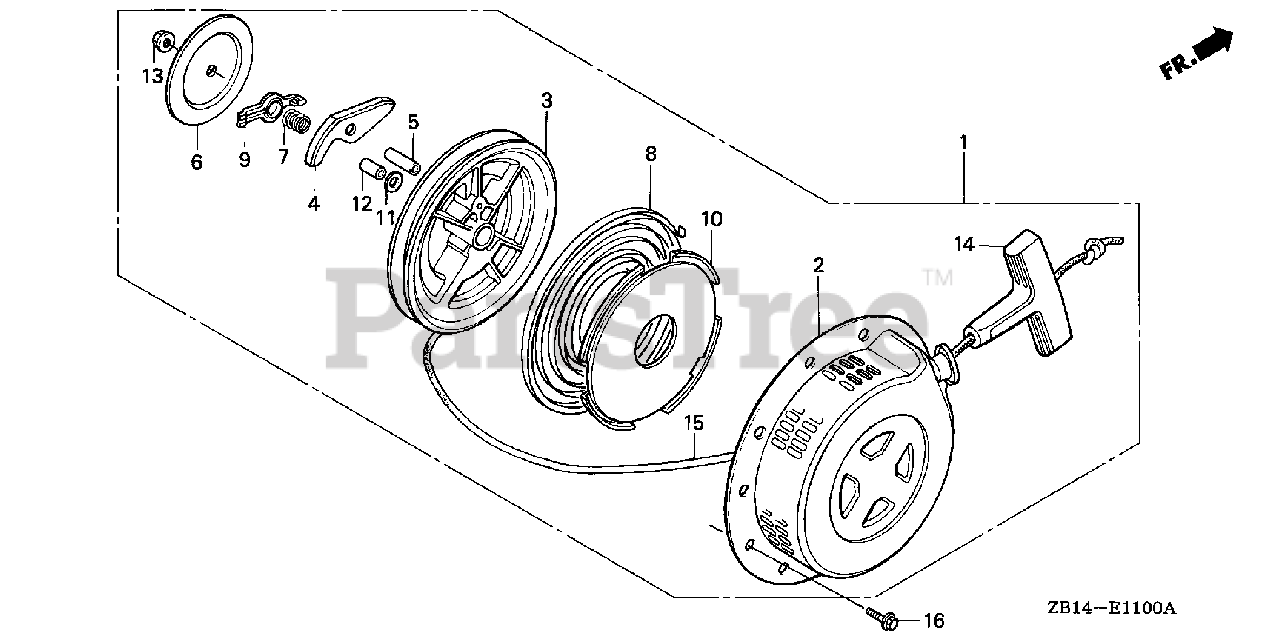

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZB2-000ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZB2-000ZH)

$97.99

$

In Stock, only 1 left!

0

1

Honda 28400-ZB2-000ZH

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$97.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZB2-000ZB

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Currently unavailable

3

Honda 28420-ZE1-003

PULLEY, RECOIL STARTER

$42.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE1-003

RATCHET, STARTER

$5.99

$

Usually ships in 3-6 days

0

5

Honda 28423-ZE1-003

PIN, STARTER RATCHET

$8.99

$

Usually ships in 3-6 days

0

6

Honda 28431-ZE1-003

PLATE, FRICTION

$6.49

$

Usually ships in 3-6 days

0

7

Honda 28441-ZE1-003

SPRING, FRICTION

$6.49

$

Usually ships in 3-6 days

0

8

Honda 28442-ZE1-003

SPRING, RECOIL STARTER

$21.99

$

In Stock, only 1 left!

0

9

Honda 28443-ZE1-003

GUIDE, RATCHET

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28445-ZE1-003

CASE, RECOIL STARTER SPRING

$15.99

$

Usually ships in 3-6 days

0

11

Honda 28446-ZE1-003

WASHER, STARTER

$5.49

$

Usually ships in 3-6 days

0

12

Honda 28447-ZE1-003

SHAFT, SUB

$5.99

$

Usually ships in 3-6 days

0

13

Honda 28448-ZE1-003

NUT

$

$

Not available

14

Honda 28461-ZE1-003

SEE PART DETAILS - SUP; KNOB, RECOIL STARTER
(Superseded to 28461-ZE1-013)

$8.49

$

In Stock, only 2 left!

0

15

Honda 28462-ZE1-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER

$8.99

$

In Stock, only 1 left!

0

16

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 20+

0
