EG2200X A (GX140) - Honda Generator, Made in Japan (SN: GX140-1000001 - GX140-3263982) FRAME Parts Diagram

Generator, Made in Japan

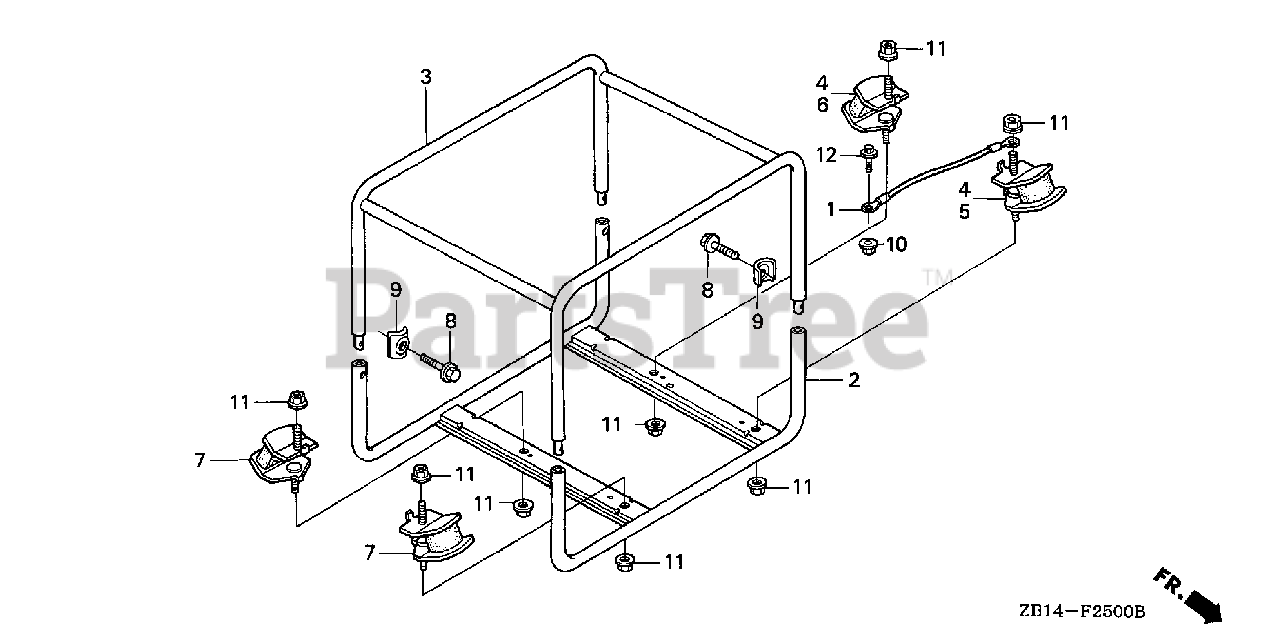

FRAME Parts Diagram

  • Title
1

Honda 32610-899-000

CABLE, GROUND

Note: Use from Frame SN 2217290.

$13.99

$

Usually ships in 3-6 days

0

2

Honda 50310-ZB2-800

FRAME (LOWER) (NOT AVAILABLE)

Note: Use up to Frame SN 2217289.

$

$

Currently unavailable

2

Honda 50310-ZB2-830

FRAME (LOWER) (NOT AVAILABLE)

Note: Use from Frame SN 2217290.

$

$

Currently unavailable

3

Honda 50350-ZB2-800

FRAME (UPPER)

$238.99

$

Usually ships in 3-6 days

0

4

Honda 68325-ZB2-003

RUBBER (LOWER)

$41.99

$

Usually ships in 3-6 days

0

7

Honda 68328-ZB2-000

RUBBER (LOWER)

$30.99

$

Usually ships in 3-6 days

0

8

Honda 90015-898-000

BOLT, FLANGE (8X20) (NOT AVAILABLE)

Note: Use up to Frame SN 2097759.

$2.99

$

Usually ships in 3-6 days

0

8

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

Note: Use from Frame SN 2762742.

$2.49

$

In Stock, Qty 7

0

8

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

Note: Use from Frame SN 2762742.

$2.49

$

In Stock, Qty 7

0

8

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

Note: Use from Frame SN 2097760 to 2762741.

$2.49

$

In Stock, only 3 left!

0

9

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 14

0

10

Honda 94050-06080

NUT, FLANGE (6MM)

Note: Use from Frame SN 2217290.

$0.99

$

In Stock, Qty 5

0

11

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use from Frame SN 2217290.

$1.99

$

In Stock, Qty 14

0
