EG2200X A (GX140) - Honda Generator, Made in Japan (SN: GX140-1000001 - GX140-3263982) CYLINDER Parts Diagram

Generator, Made in Japan

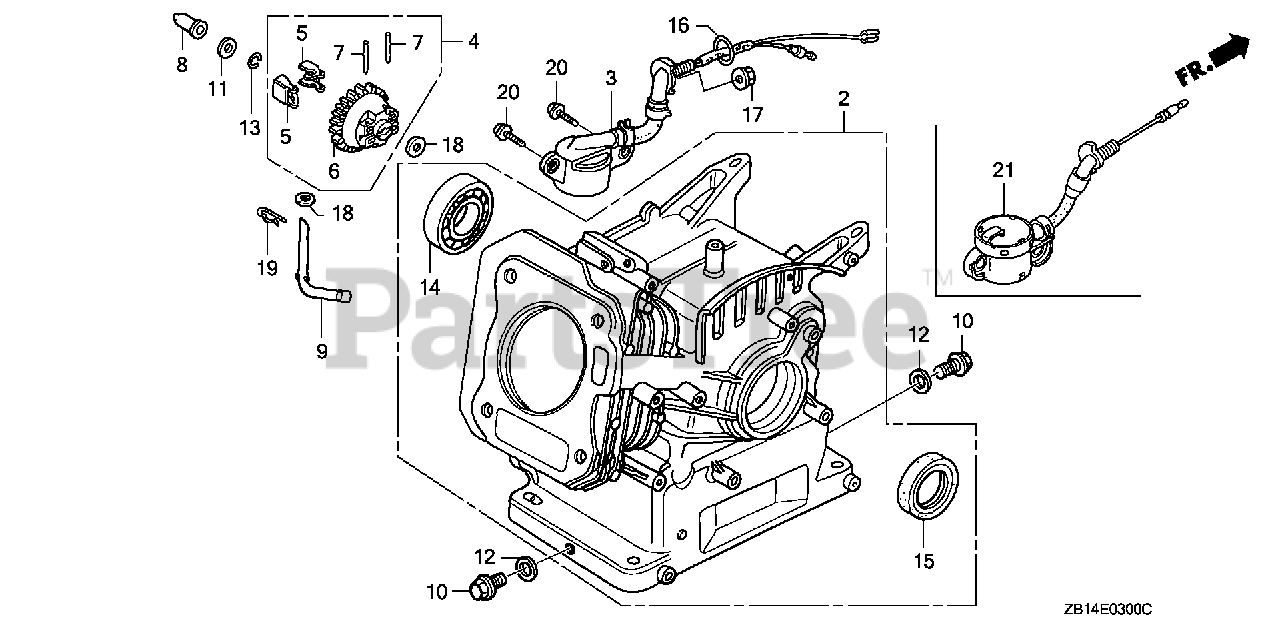

CYLINDER Parts Diagram

  • Title

2

Honda 120A0-ZE1-810

CYLINDER ASSY. (OIL ALERT)

$

$

Not available

3

Honda 15510-ZE1-023

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

$68.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-033

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

$68.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

$68.99

$

In Stock, Qty 9

0

4

Honda 16510-ZE1-000

GOVERNOR ASSY.

$17.99

$

In Stock, only 2 left!

0

5

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

$25.99

$

In Stock, only 1 left!

0

7

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

9

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

11

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

$2.49

$

In Stock, only 2 left!

0

11

Honda 90451-898-000

SEE PART DETAILS - SUP; WASHER, THRUST (6MM)

Note: Use up to Engine SN 1719421.

$

$

Currently unavailable

12

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

13

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER

Note: Use up to Engine SN 1728191.

$1.99

$

Usually ships in 3-6 days

0

14

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205TMB) (NTN)

Note: Use from Engine SN 3033316.

$25.99

$

In Stock, only 3 left!

0

14

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

Note: Use up to Engine SN 3033315.

$25.99

$

In Stock, only 1 left!

0

15

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 11

0

15

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

16

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

17

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
