EG1500 K4 A (G200) - Honda Generator, Made in Japan (SN: G200-1000107 - G200-9999999) ROTOR + FRAME BED Parts Diagram

Generator, Made in Japan

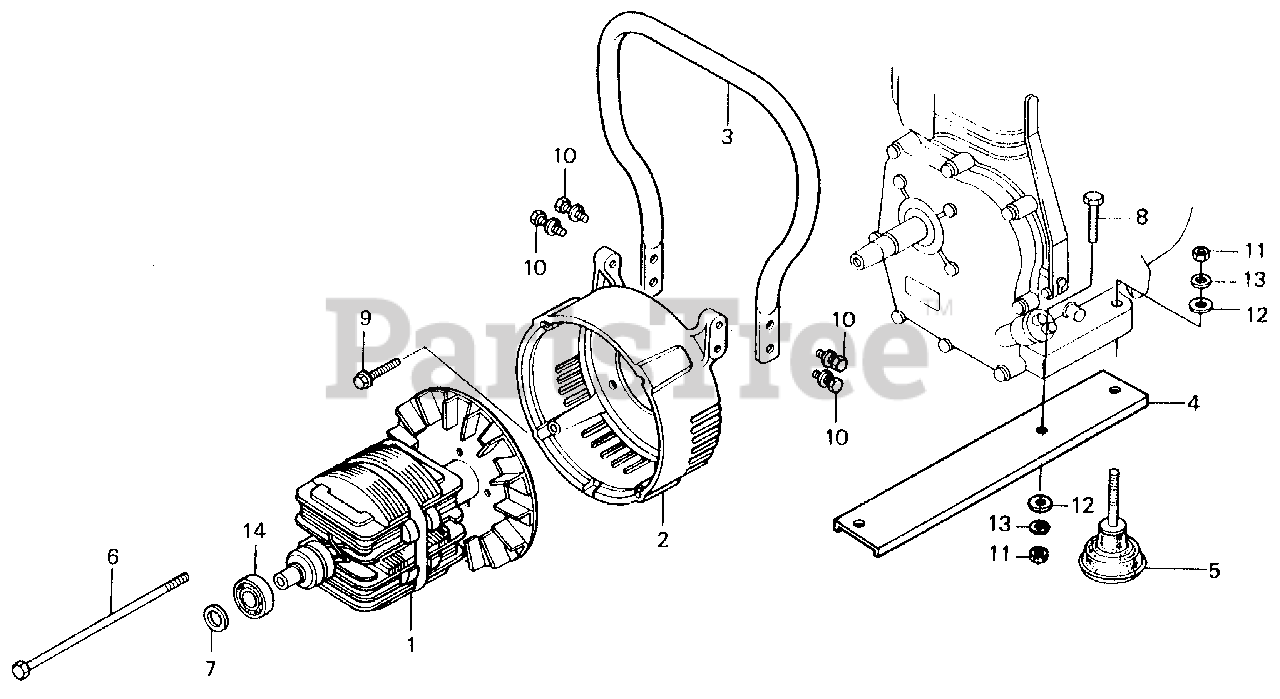

ROTOR + FRAME BED Parts Diagram

  • Title

1

Honda 31104-871-023

ROTOR

$

$

Not available

2

Honda 31109-871-003H

HOUSING, FR. *R8* (BRIGHT RED)

Note: Use up to Frame SN 1127336.

$

$

Not available

2

Honda 31109-871-013H

HOUSING, FR. *R8* (BRIGHT RED)

Note: Use from Frame SN 1127337 to 1391459.

$

$

Not available

2

Honda 31109-871-315H

HOUSING, FR. *R8* (BRIGHT RED)

Note: Use from Frame SN 1391460.

$

$

Not available

3

Honda 68110-871-000

HANDLE, CARRY (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 68301-871-000

BED, FRAME

$

$

Not available

5

Honda 68320-871-013

RUBBER (LOWER)

$

$

Not available

6

Honda 90021-871-000

BOLT, HEX. (5/16X160)

$

$

Not available

7

Honda 90430-657-000

WASHER (8MM)

$9.49

$

In Stock, only 1 left!

0

8

Honda 92101-08035-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X35)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 93481-08025-00

BOLT-WASHER (8X25) (SOURCE: VINTAGE PARTS INC.)

Note: Use up to Frame SN 1127336.

$

$

Currently unavailable

9

Honda 93481-08032-08

BOLT-WASHER (8X35) (NOT AVAILABLE)

Note: Use from Frame SN 1127337.

$

$

Currently unavailable

10

Honda 93492-08025-08

BOLT-WASHER (8X25) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 94001-08000-0S

NUT, HEX. (8MM)

Note: Use up to Frame SN 1588805.

$1.99

$

In Stock, Qty 10

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: Use from Frame SN 1588806.

$1.49

$

In Stock, Qty 20+

0

12

Honda 94101-08000

WASHER, PLAIN (8MM)

Note: Use up to Frame SN 1588805.

$1.49

$

In Stock, Qty 20+

0

13

Honda 94111-08000

WASHER, SPRING (8MM)

Note: Use up to Frame SN 1588805.

$1.49

$

Usually ships in 3-6 days

0

14

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0
