EG1500 K4 A (G200) - Honda Generator, Made in Japan (SN: G200-1000107 - G200-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

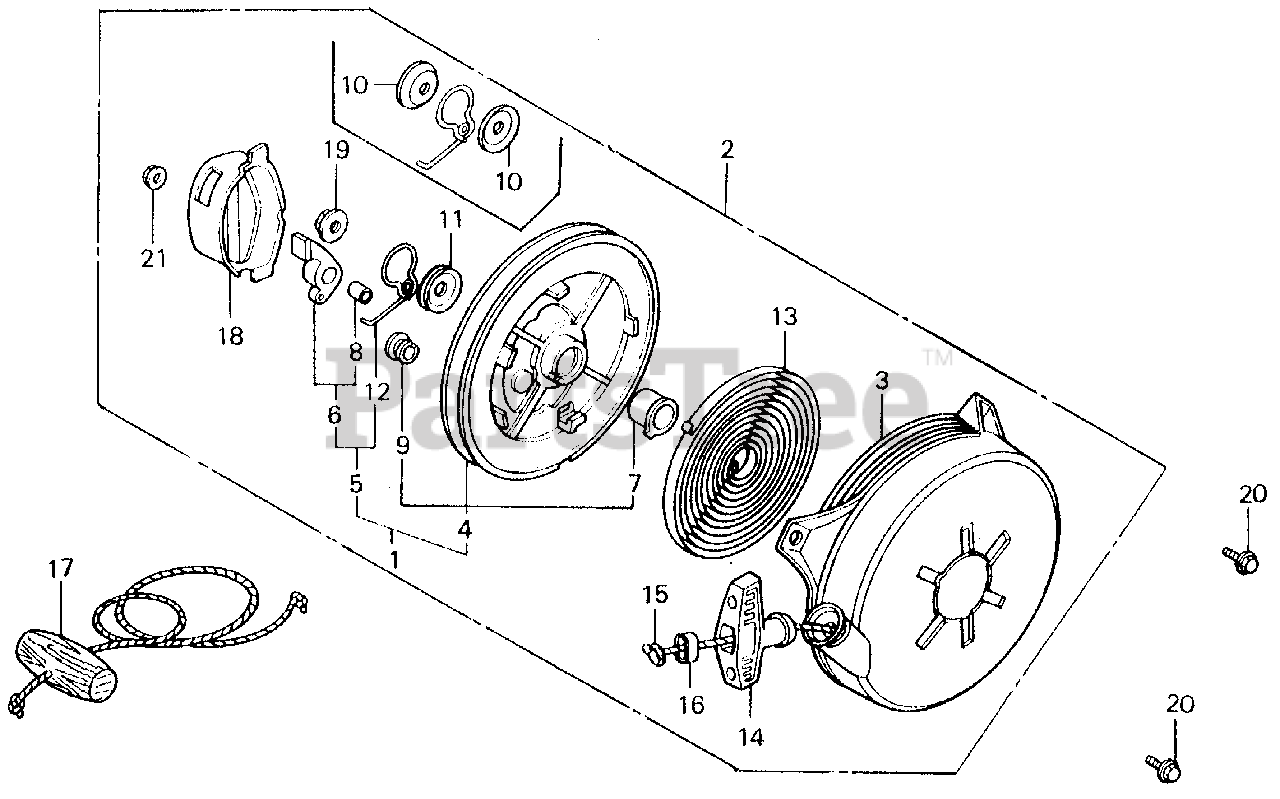

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28040-883-000

REEL, STARTER

Note: Use up to Engine SN 1533900.

$

$

Not available

2

Honda 28400-883-040ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 28400-883-040ZC

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-883-505)

$

$

Not available

3

Honda 28410-883-030H

SEE PART DETAILS - SUP; CASE, STARTER *R8* (BRIGHT RED)

$

$

Not available

3

Honda 28410-883-030ZB

SEE PART DETAILS - SUP; CASE, STARTER *R8* (BRIGHT RED)

$96.99

$

Usually ships in 3-6 days

0

4

Honda 28040-883-000

REEL, STARTER

Note: Use up to Engine SN 1533900.

$

$

Not available

4

Honda 28420-889-010

REEL, STARTER

Note: Use from Engine SN 1533901.

$38.99

$

Usually ships in 3-6 days

0

5

Honda 28421-883-315

SEE PART DETAILS - PRI; RATCHET KIT

Note: Use up to Engine SN 1132419.

$18.99

$

In Stock, only 1 left!

0

5

Honda 28421-883-315

SEE PART DETAILS - PRI; RATCHET KIT

Note: Use up to Engine SN 1533900.

$18.99

$

In Stock, only 1 left!

0

6

Honda 28421-883-315

SEE PART DETAILS - PRI; RATCHET KIT

Note: Use up to Engine SN 1132419.

$18.99

$

In Stock, only 1 left!

0

6

Honda 28422-883-020

RATCHET

Note: Use from Engine SN 1132420.

$8.99

$

Usually ships in 3-6 days

0

7

Honda 28424-883-000

BOSS, REEL

$6.49

$

Usually ships in 3-6 days

0

8

Honda 28425-883-300

BUSH, RATCHET

Note: Use up to Engine SN 1533900.

$

$

Not available

8

Honda 28425-889-300

BUSH, RATCHET

Note: Use from Engine SN 1533901.

$5.49

$

Usually ships in 3-6 days

0

9

Honda 28427-883-300

BUSH, REEL STARTER

Note: Use from Engine SN 1132420.

$

$

Not available

10

Honda 28431-883-000

PLATE, FRICTION

Note: Use up to Engine SN 1533900.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 28432-883-000

PLATE, FRICTION

Note: Use from Engine SN 1533901.

$5.99

$

Usually ships in 3-6 days

0

12

Honda 28421-883-315

SEE PART DETAILS - PRI; RATCHET KIT

Note: Use up to Engine SN 1132419.

$18.99

$

In Stock, only 1 left!

0

12

Honda 28441-883-010

SEE PART DETAILS - SUP; SPRING, FRICTION
(Superseded to 28441-883-020)

Note: Use from Engine SN 1132420 to 1533900.

$10.99

$

In Stock, only 1 left!

0

12

Honda 28441-883-020

SEE PART DETAILS - PRI; SPRING, FRICTION

Note: Use from Engine SN 1132420.

$10.99

$

In Stock, only 1 left!

0

13

Honda 28442-883-000

SPRING, RETURN

$22.99

$

Usually ships in 3-6 days

0

14

Honda 28461-883-000

GRIP, STARTER

$11.99

$

In Stock, only 1 left!

0

15

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55")

$12.99

$

In Stock, only 3 left!

0

16

Honda 28463-883-000

SUPPORT, GRIP

$4.49

$

Usually ships in 3-6 days

0

17

Honda 28470-816-000

ROPE, STARTER (#5X55") Use from Engine SN 1779881.

$10.99

$

In Stock, only 1 left!

0

18

Honda 28474-YA0-N40

SEE PART DETAILS - PRI; COVER, REEL STARTER

$12.99

$

Usually ships in 3-6 days

0

18

Honda 28474-883-010

SEE PART DETAILS - SUP; COVER, REEL STARTER
(Superseded to 28474-YA0-N40)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

$2.49

$

In Stock, Qty 5

0

20

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10)
(Superseded to 93401-06010-08)

$2.49

$

In Stock, Qty 5

0

21

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0
