EG1500 K4 A (G200) - Honda Generator, Made in Japan (SN: G200-1000107 - G200-9999999) MUFFLER Parts Diagram

Generator, Made in Japan

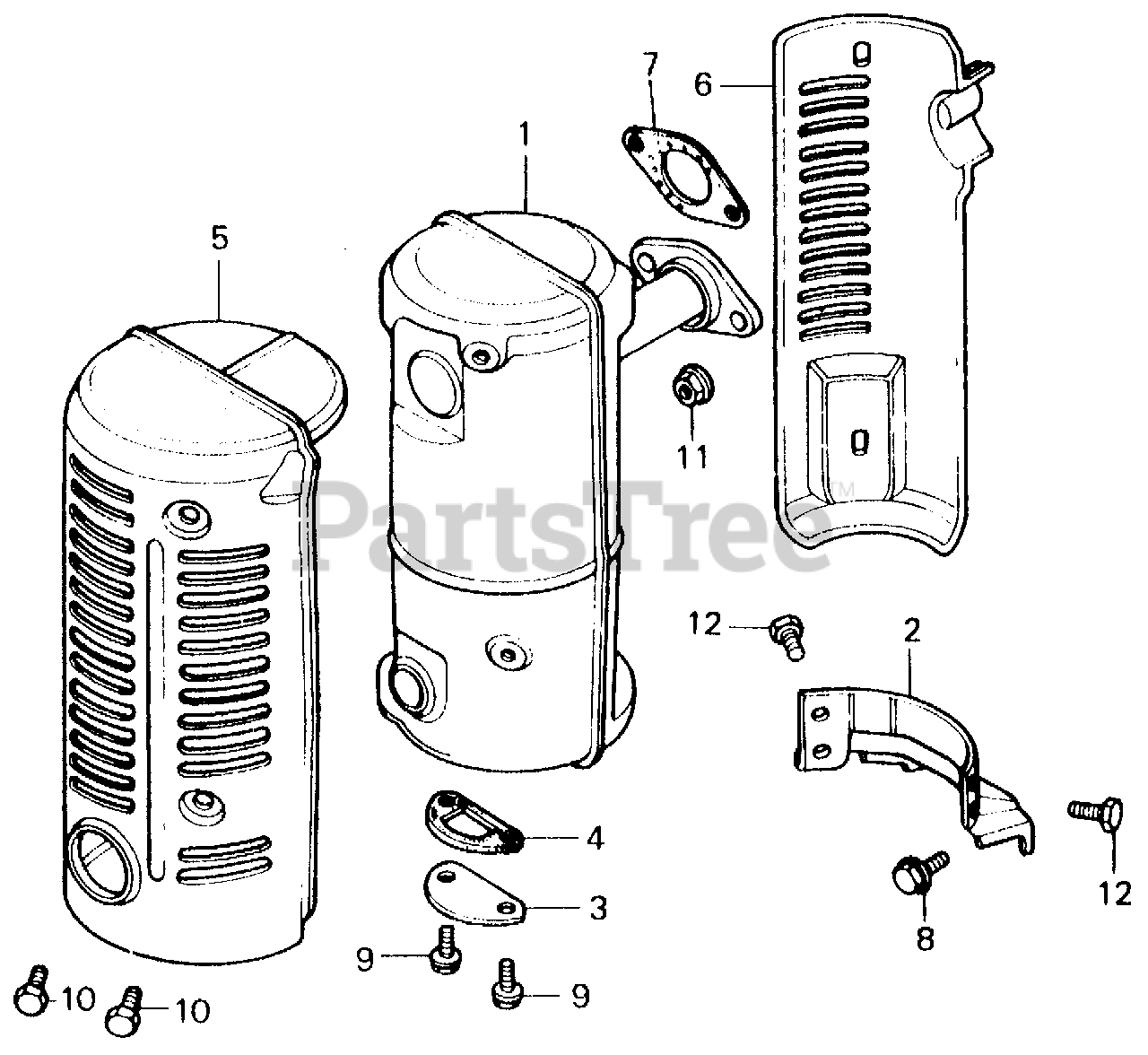

MUFFLER Parts Diagram

  • Title

1

Honda 18300-883-671

MUFFLER ASSY.

$

$

Not available

2

Honda 18315-883-672

STAY, MUFFLER

$

$

Not available

3

Honda 18316-883-670

LID, MUFFLER

$

$

Currently unavailable

4

Honda 18317-883-306

GASKET, MUFFLER LID

$3.99

$

Usually ships in 3-6 days

0

5

Honda 18320-883-670

PROTECTOR A, MUFFLER

$

$

Not available

6

Honda 18325-883-671

PROTECTOR B, MUFFLER

$

$

Not available

7

Honda 18381-883-800

GASKET, MUFFLER

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90031-883-000

BOLT, FLANGE (8X16)

$5.99

$

In Stock, only 1 left!

0

9

Honda 92101-06012-0B

BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 93101-06006-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X6)

$

$

Not available

11

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

12

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

12

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0
