EG1500 K4 A (G200) - Honda Generator, Made in Japan (SN: G200-1000107 - G200-9999999) FRAME + MOUNT RUBBER (1) Parts Diagram

Generator, Made in Japan

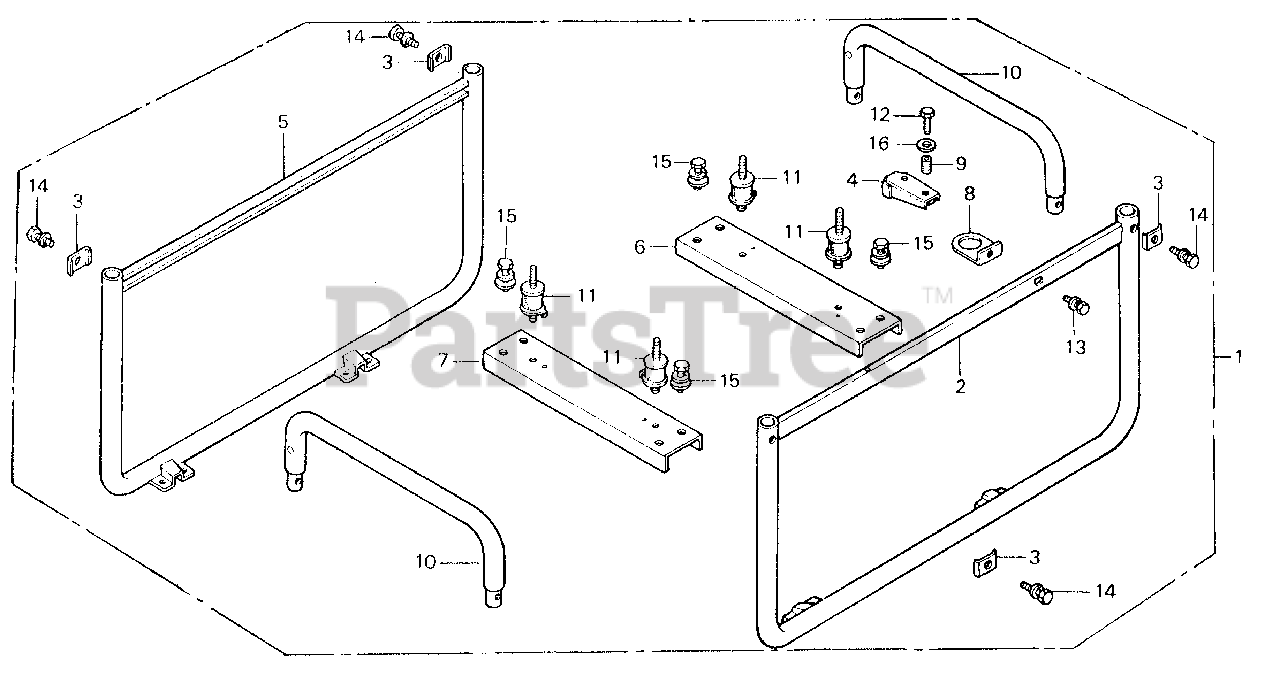

FRAME + MOUNT RUBBER (1) Parts Diagram

  • Title
1

Honda 06500-871-810

FRAME KIT (NOT AVAILABLE)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

2

Honda 50120-871-810

FRAME, FR. (N/A: SEE ASSEMBLY)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

3

Honda 50121-871-810

PLATE, JOINT

Note: Use up to Frame SN 1548922.

$

$

Not available

4

Honda 50123-871-810

STAY, STOPPER RUBBER (N/A: SEE ASSEMBLY)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

5

Honda 50130-871-810

FRAME, RR. (N/A: SEE ASSEMBLY)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

6

Honda 50311-871-810

PLATE, GENERATOR (LOWER) (N/A: SEE ASSEMBLY)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

7

Honda 50312-871-810

PLATE, ENGINE (LOWER) (N/A: SEE ASSEMBLY)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

8

Honda 50317-871-810

STOPPER, ENGINE (N/A: SEE ASSEMBLY)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

9

Honda 50318-839-000

RUBBER, STOPPER (NOT AVAILABLE)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

10

Honda 53120-871-810

HANDLEBAR (NOT AVAILABLE)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

11

Honda 68311-YB3-K80

RUBBER, ENGINE MOUNTING

Note: Use up to Frame SN 1548922.

$7.49

$

In Stock, only 4 left!

0

12

Honda 92101-08032-0B

BOLT, HEX. (8X32)

Note: Use up to Frame SN 1548922.

$3.49

$

Usually ships in 3-6 days

0

13

Honda 93412-06012-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X12)

Note: Use up to Frame SN 1548922.

$

$

Currently unavailable

14

Honda 93412-08016-08

BOLT-WASHER (8X16)

Note: Use up to Frame SN 1548922.

$2.99

$

Usually ships in 3-6 days

0

15

Honda 93413-08016-08

BOLT-WASHER (8X16)

Note: Use up to Frame SN 1548922.

$1.99

$

Usually ships in 3-6 days

0

16

Honda 94101-08000

WASHER, PLAIN (8MM)

Note: Use up to Frame SN 1548922.

$1.49

$

In Stock, Qty 20+

0
