EG1500 K4 A (G200) - Honda Generator, Made in Japan (SN: G200-1000107 - G200-9999999) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

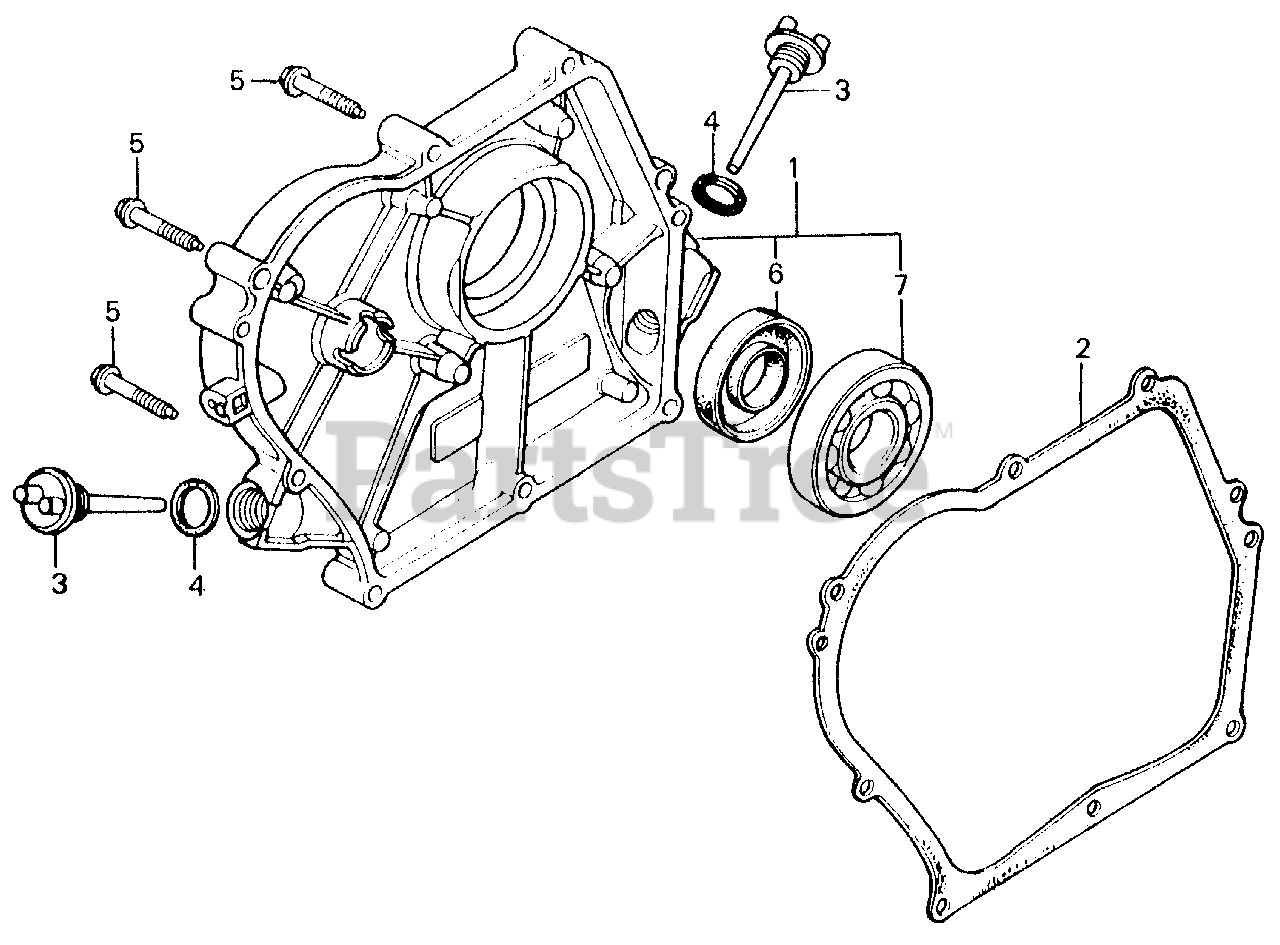

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-883-020

COVER ASSY., CRANKCASE (S-TYPE)

Note: Use up to Engine SN 1122620.

$

$

Not available

1

Honda 11300-883-742

COVER ASSY., CRANKCASE (HQ-TYPE)

Note: Use from Engine SN 1122621.

$

$

Not available

2

Honda 11381-883-800

GASKET, COVER

$13.99

$

Usually ships in 3-6 days

0

3

Honda 15620-883-010

CAP, OIL

$8.99

$

Usually ships in 3-6 days

0

4

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: Use from Engine SN 1569188.

$5.99

$

In Stock, Qty 5

0

5

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

6

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 11

0

6

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

7

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0
