EG1500 K4 A (G200) - Honda Generator, Made in Japan (SN: G200-1000107 - G200-9999999) CONTROL BOX Parts Diagram

Generator, Made in Japan

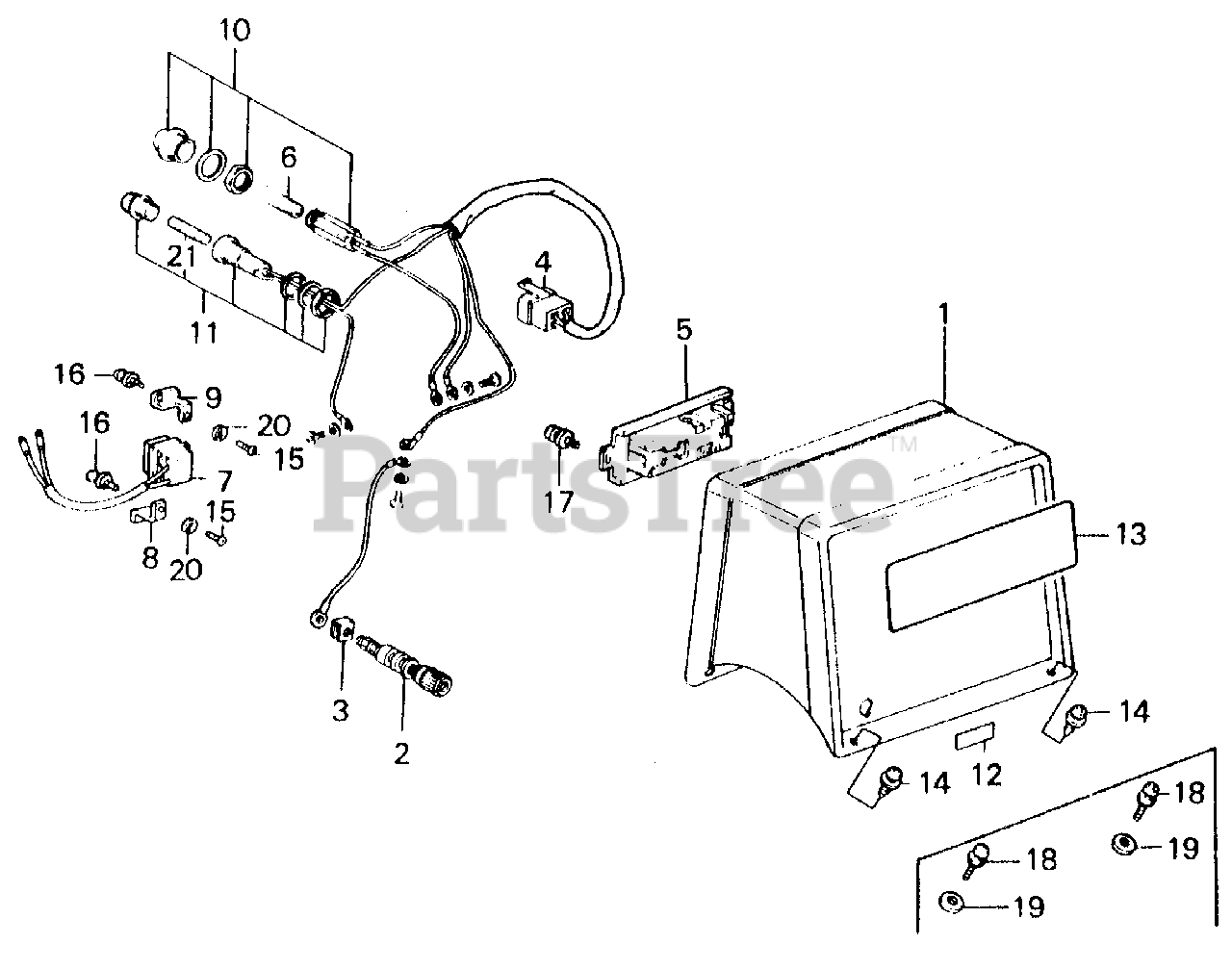

CONTROL BOX Parts Diagram

  • Title

1

Honda 31402-871-671H

BOX, CONTROL *R8* (BRIGHT RED)

$

$

Not available

2

Honda 31428-815-158

SEE PART DETAILS - SUP; TERMINAL ASSY., GROUND

Note: Use up to Frame SN 1391459.

$

$

Currently unavailable

2

Honda 31428-880-000

SEE PART DETAILS - PRI; TERMINAL ASSY., GROUND (NOT AVAILABLE)

Note: Use from Frame SN 1391460.

$

$

Currently unavailable

3

Honda 31429-893-003

PLATE, GROUND

$

$

Not available

4

Honda 32114-086-010

CONNECTOR, MALE (4 POLE)

$4.99

$

Usually ships in 3-6 days

0

5

Honda 32330-839-158

SEE PART DETAILS - SUP; RECEPTACLE (15A 125V)

Note: Use up to Frame SN 1506168.

$

$

Currently unavailable

5

Honda 32333-880-680

SEE PART DETAILS - PRI; RECEPTACLE (15A-125V)

$84.99

$

Usually ships in 3-6 days

0

6

Honda 34909-880-000

BULB (24V2W)

$9.49

$

Usually ships in 3-6 days

0

7

Honda 37500-871-153

METER, FREQUENCY

$

$

Not available

8

Honda 37501-880-000

HOLDER A, FREQUENCY METER

$

$

Not available

9

Honda 37502-880-000

HOLDER B, FREQUENCY METER

$

$

Not available

10

Honda 37561-868-158

SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 38211-868-158

HOLDER ASSY., FUSE

$

$

Currently unavailable

12

Honda 87534-880-000

SEE PART DETAILS - SUP; MARK, GROUND

$

$

Currently unavailable

13

Honda 87551-871-670

PLATE, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

Note: Use from Frame SN 1391460.

$2.99

$

Usually ships in 3-6 days

0

15

Honda 93500-03008-0H

SCREW, PAN (3X8)

$0.99

$

In Stock, Qty 8

0

16

Honda 93892-04010-08

SCREW-WASHER (4X10)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93892-04012-08

SCREW-WASHER (4X12)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 93892-05016-08

SCREW-WASHER (5X16)

Note: Use up to Frame SN 1391459.

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94101-05800

WASHER, PLAIN (5MM)

Note: Use up to Frame SN 1391459.

$1.49

$

In Stock, only 2 left!

0

20

Honda 94111-03800

WASHER, SPRING (3MM)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 38201-880-000

SEE PART DETAILS - PRI; FUSE (15A)

$4.49

$

Usually ships in 3-6 days

0
