EG1500 K3 A (G42) - Honda Generator, Made in Japan (SN: G42-2000001 - G42-2193508) EG1500 FAN COVER + GOVERNOR + TOOLS K3 Parts Diagram

Generator, Made in Japan

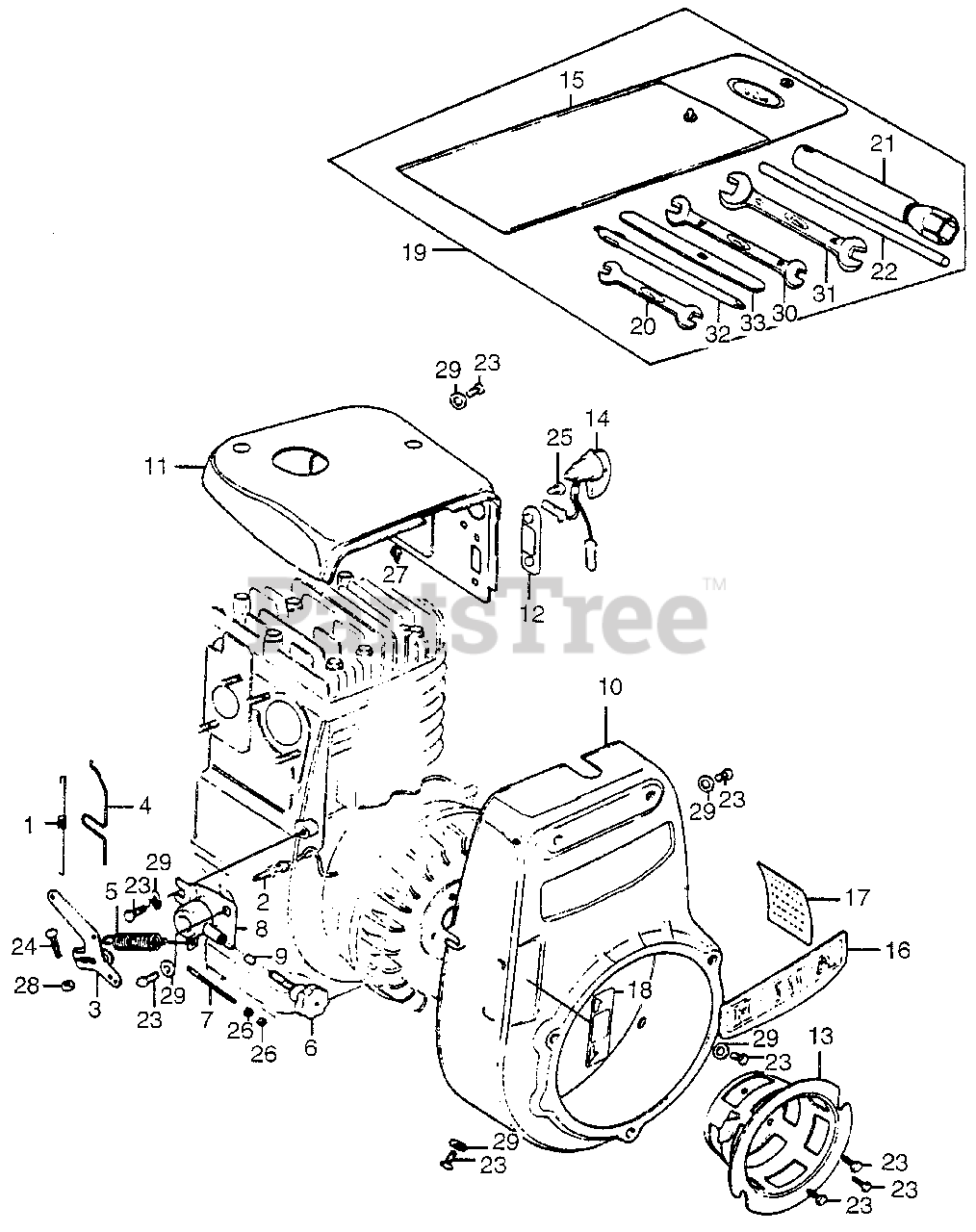

EG1500 FAN COVER + GOVERNOR + TOOLS K3 Parts Diagram

  • Title

1

Honda 16501-865-750

SPRING, THROTTLE RETURN (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16535-822-010

SHAFT, GOVERNOR ARM

$

$

Currently unavailable

3

Honda 16541-822-000

ARM, GOVERNOR

$

$

Not available

4

Honda 16545-822-000

ROD, GOVERNOR

$

$

Not available

5

Honda 16551-865-750

SPRING, GOVERNOR

$

$

Not available

6

Honda 16561-865-000

SCREW, GOVERNOR ADJUST (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16564-822-020

BOLT, SPRING ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16570-865-000

LEVER, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16574-822-000

BUSHING, CONTROL

$

$

Not available

10

Honda 19600-865-010H

COVER, FAN *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 19611-865-661H

COVER, SIDE *R8* (BRIGHT RED)

$

$

Not available

12

Honda 19901-807-000

DEFENDER, SIDE COVER

$

$

Not available

13

Honda 28430-865-660

PULLEY, STARTER (NOT AVAILABLE)

$

$

Not available

14

Honda 36100-865-003

SWITCH ASSY., ENGINE STOP (NOT AVAILABLE)

$

$

Not available

15

Honda 89101-ME5-670

BAG, TOOL

$8.99

$

In Stock, only 1 left!

0

16

Honda 87101-865-000

EMBLEM (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 87515-865-660

MARK, DIPSTICK OIL (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 87531-865-750

PLATE, THROTTLE

$

$

Not available

19

Honda 89000-871-000

TOOL ASSY.

Note: Use up to Engine SN 2051368.

$19.99

$

Usually ships in 3-6 days

0

19

Honda 89000-875-000

TOOL KIT

Note: Use from Engine SN 2051369.

$11.99

$

Usually ships in 3-6 days

0

20

Honda 89215-700-000

WRENCH (8X9)

Note: Use up to Engine SN 2051368.

$6.99

$

Usually ships in 3-6 days

0

21

Honda 89216-829-010

WRENCH, SPARK PLUG (NOT AVAILABLE)

$4.99

$

Usually ships in 3-6 days

0

22

Honda 89219-805-000

HANDLE, BOX WRENCH

$3.99

$

Usually ships in 3-6 days

0

23

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

25

Honda 93500-05008-0H

SCREW, PAN (5X8)

Note: Use from Engine SN 2049679.

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93500-05010-0A

SCREW, PAN (5X10)

Note: Use up to Engine SN 2049678.

$1.49

$

In Stock, Qty 8

0

26

Honda 94001-04000-0S

NUT, HEX. (4MM)

$1.49

$

In Stock, only 1 left!

0

27

Honda 94001-05000-0S

NUT, HEX. (5MM)

Note: Use up to Engine SN 2049678.

$2.49

$

Usually ships in 3-6 days

0

27

Honda 94001-050800S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)
(Superseded to 94001-05080-0S)

Note: Use from Engine SN 2049679.

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

28

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

29

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

30

Honda 99001-10120

WRENCH (10X12) (OPEN END)

$7.49

$

Usually ships in 3-6 days

0

31

Honda 99001-14170

WRENCH (14X17) (OPEN END)

$11.99

$

Usually ships in 3-6 days

0

32

Honda 99003-10000

SCREWDRIVER 1, PHILLIPS (NO.2)

Note: Use up to Engine SN 2051368.

$5.49

$

Usually ships in 3-6 days

0

33

Honda 99003-40000

LEVER, TIRE

Note: Use up to Engine SN 2051368.

$1.99

$

In Stock, Qty 5

0
