EG1500 K3 A (G42) - Honda Generator, Made in Japan (SN: G42-2000001 - G42-2193508) EG1500 CONTROL BOX + GENERATOR K3 Parts Diagram

Generator, Made in Japan

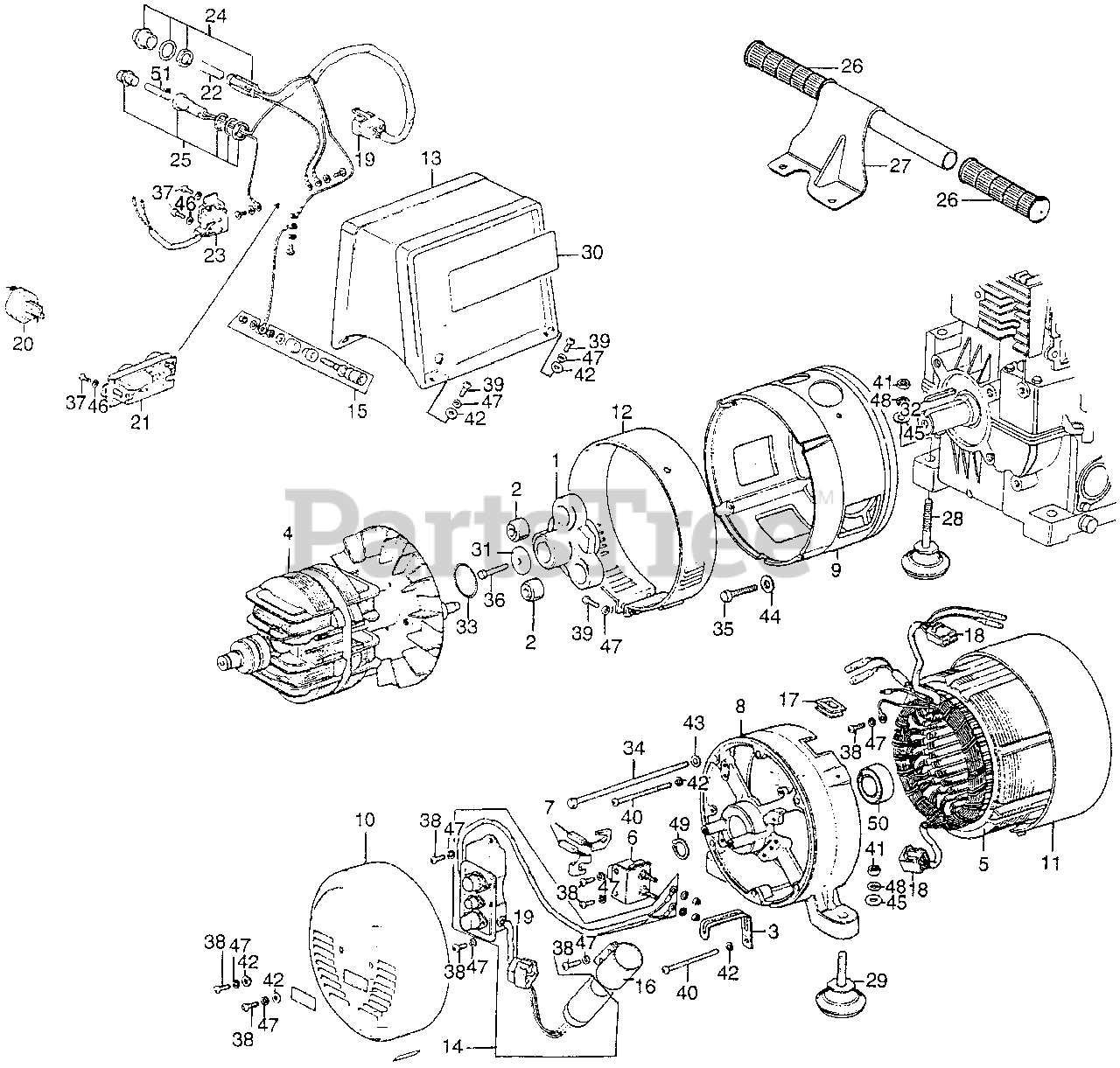

EG1500 CONTROL BOX + GENERATOR K3 Parts Diagram

  • Title

1

Honda 13341-871-158

FLANGE, COUPLING

$

$

Not available

2

Honda 13345-842-010

RUBBER, COUPLING

$

$

Not available

3

Honda 30564-871-000

CLAMP A, WIRE
(Superseded to 30564-871-003)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 31104-871-158

ROTOR

$

$

Not available

5

Honda 31105-871-671

STATOR ASSY.

$

$

Not available

6

Honda 31106-868-158

HOLDER, BRUSH

$64.99

$

Usually ships in 3-6 days

0

7

Honda 31107-868-158

BRUSH

$23.99

$

Usually ships in 3-6 days

0

8

Honda 31108-871-158H

HOUSING, RR. *R8* (BRIGHT RED)

$

$

Not available

9

Honda 31109-871-158H

HOUSING, FR. *R8* (BRIGHT RED)

$

$

Not available

10

Honda 31113-871-158H

COVER, GENERATOR END *R8* (BRIGHT RED)

$

$

Not available

11

Honda 31127-871-158H

COVER, STATOR *R8* (BRIGHT RED)

$

$

Not available

12

Honda 31181-871-158H

COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

13

Honda 31402-871-671H

BOX, CONTROL *R8* (BRIGHT RED)

$

$

Not available

14

Honda 31410-871-315

REGULATOR ASSY., AUTOMATIC VOLTAGE (NOT AVAILABLE)

$

$

Not available

15

Honda 31428-880-000

SEE PART DETAILS - PRI; TERMINAL ASSY., GROUND (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 31430-842-158

HOLDER B

$

$

Not available

17

Honda 31472-871-158

GROMMET

$

$

Not available

18

Honda 32111-086-010

CONNECTOR, FEMALE (4 POLE)

$

$

Currently unavailable

19

Honda 32114-086-010

CONNECTOR, MALE (4 POLE)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 32310-812-640

PLUG ASSY., RECEPTACLE

$8.99

$

Usually ships in 3-6 days

0

21

Honda 32333-880-680

SEE PART DETAILS - PRI; RECEPTACLE (15A-125V)

$84.99

$

Usually ships in 3-6 days

0

22

Honda 34909-880-000

BULB (24V2W)

$9.49

$

Usually ships in 3-6 days

0

23

Honda 37500-871-153

METER, FREQUENCY

$

$

Not available

24

Honda 37561-868-158

SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 38211-868-158

HOLDER ASSY., FUSE

$

$

Currently unavailable

26

Honda 95011-12200

SEE PART DETAILS - PRI; GRIP B, L. HANDLEBAR

$8.99

$

Usually ships in 3-6 days

0

27

Honda 68110-865-741

HANDLE, CARRYING

$

$

Not available

28

Honda 68310-871-000

RUBBER (LOWER) (NOT AVAILABLE)

$

$

Not available

29

Honda 68311-871-000

RUBBER (LOWER) (NOT AVAILABLE)

$

$

Not available

30

Honda 87551-871-670

PLATE, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

31

Honda 90473-842-000

WASHER (8MM)

$2.49

$

In Stock, only 4 left!

0

32

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

$9.99

$

Usually ships in 3-6 days

0

33

Honda 91301-428-003

O-RING (35.5X3) (NOK)

$2.99

$

In Stock, only 1 left!

0

34

Honda 92000-06142-0H

BOLT, HEX. (6X142) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

35

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

36

Honda 92101-08032-0B

BOLT, HEX. (8X32)

$3.49

$

Usually ships in 3-6 days

0

37

Honda 93500-04010-0H

SCREW, PAN (4X10)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 93500-05010-0H

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 93500-05016-0H

SCREW, PAN (5X16)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 93500-05055-0H

SCREW, PAN (5X55) (NOT AVAILABLE)

$

$

Currently unavailable

41

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

42

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

43

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

44

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

45

Honda 94102-10000

WASHER, PLAIN (10MM)

$0.99

$

In Stock, only 1 left!

0

46

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

47

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

48

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0

49

Honda 94510-17000

CIRCLIP (OUTER) (17MM)

$1.99

$

Usually ships in 3-6 days

0

50

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0

51

Honda 98200-11500

FUSE A (15A)

$1.49

$

Usually ships in 3-6 days

0
