EG1500 K3 A (G42) - Honda Generator, Made in Japan (SN: G42-2000001 - G42-2193508) EG1500 CARBURETOR K3 Parts Diagram

Generator, Made in Japan

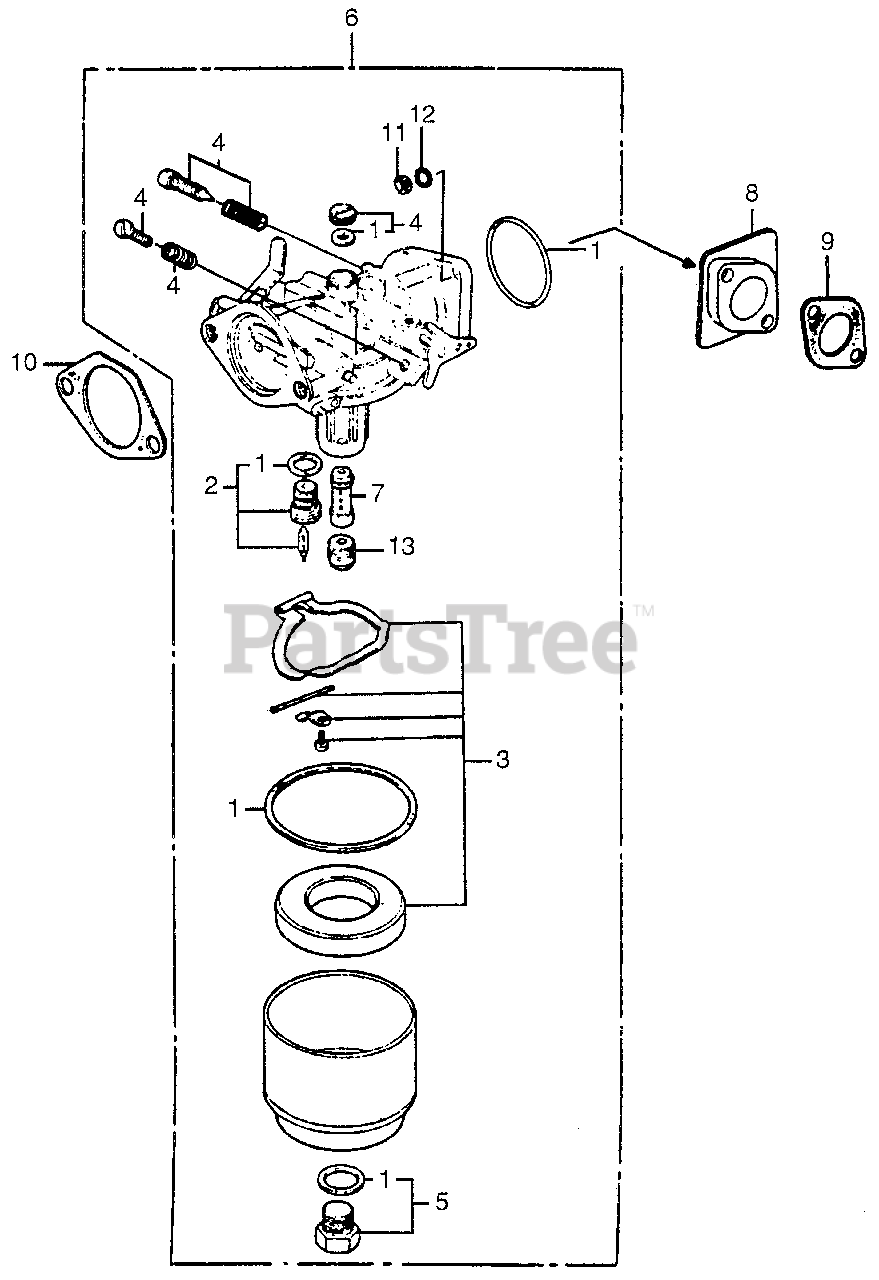

EG1500 CARBURETOR K3 Parts Diagram

  • Title

1

Honda 16010-848-505

GASKET SET

$

$

Not available

2

Honda 16011-051-004

SEE PART DETAILS - PRI; VALVE SET, FLOAT

Note: Use up to Engine SN 2108368.

$22.99

$

Usually ships in 3-6 days

0

2

Honda 16011-865-014

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-866-004)

Note: Use from Engine SN 2108369.

$22.99

$

Usually ships in 3-6 days

0

3

Honda 16013-124-014

SEE PART DETAILS - PRI; FLOAT SET

$

$

Not available

4

Honda 16016-848-004

SCREW SET A (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16028-848-004

SCREW SET (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16100-865-701

CARBURETOR (N/A: SEE COMPONENTS)

$

$

Currently unavailable

7

Honda 16166-865-004

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16211-865-781

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16229-822-010

GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16269-822-000

GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

11

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

12

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

13

Honda 99114-077-0780

JET, MAIN (#78) (NOT AVAILABLE)

$

$

Not available

13

Honda 99114-077-0800

JET, MAIN (#80)

$

$

Currently unavailable
