EG1500 K3 A (G42) - Honda Generator, Made in Japan (SN: G42-2000001 - G42-2193508) CRANKSHAFT + PISTON Parts Diagram

Generator, Made in Japan

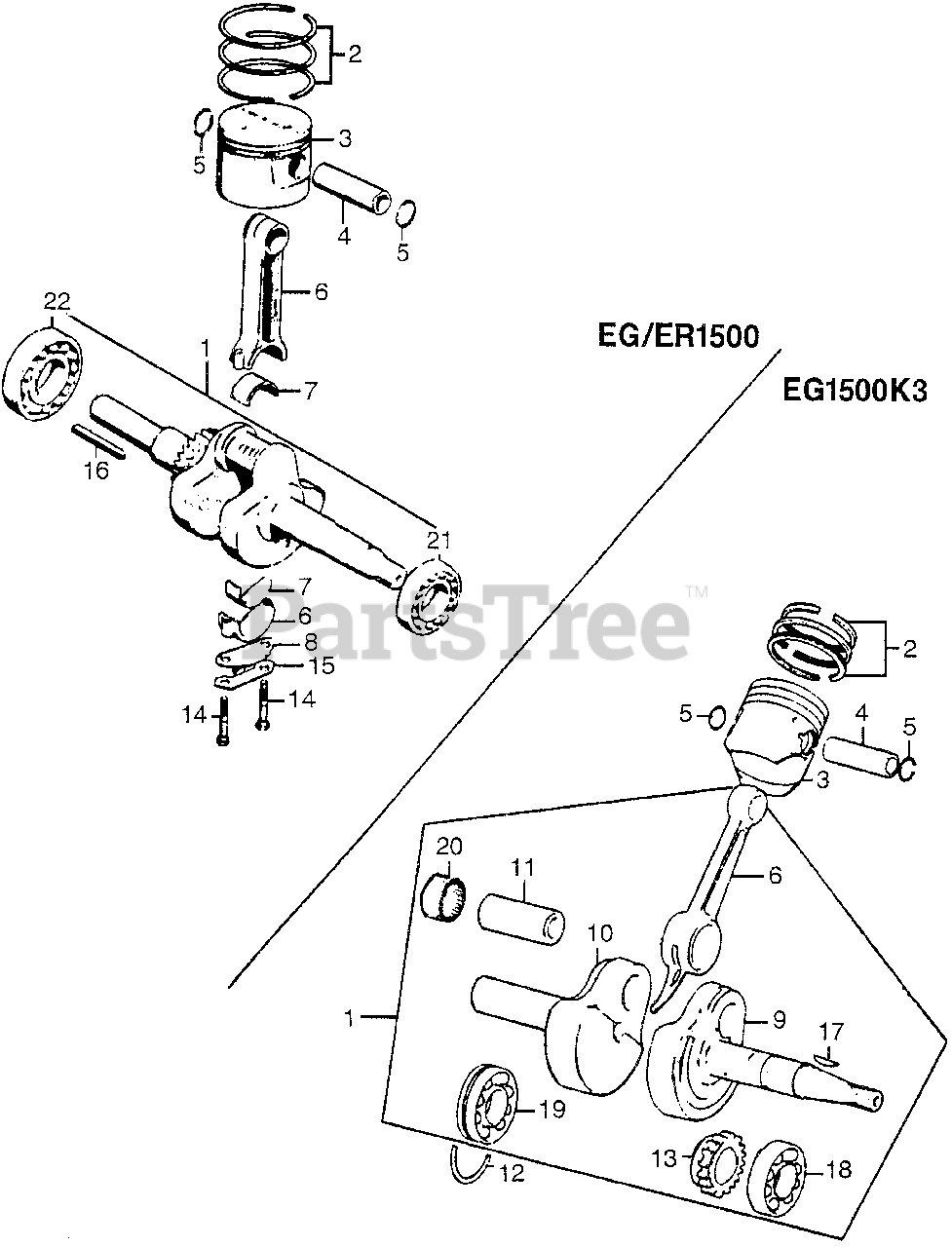

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13000-822-030

CRANKSHAFT ASSY.

$

$

Not available

2

Honda 13011-805-000

RING SET, PISTON (STD)

$

$

Not available

2

Honda 13021-805-000

RING SET, PISTON (OS 0.25)

$

$

Not available

2

Honda 13031-805-000

RING SET, PISTON (OS 0.50)

$

$

Not available

2

Honda 13041-805-000

RING SET, PISTON (0.75)

$

$

Not available

3

Honda 13101-822-000

PISTON (STD) (NOT AVAILABLE)

$44.99

$

Usually ships in 3-6 days

0

3

Honda 13102-822-000

PISTON (OS 0.25)

$

$

Not available

3

Honda 13103-822-000

PISTON (OS 0.50)

$41.99

$

Usually ships in 3-6 days

0

3

Honda 13104-822-000

PISTON (0.75)

$

$

Currently unavailable

4

Honda 13111-805-000

PIN, PISTON

$

$

Not available

5

Honda 94601-18000

CLIP, PISTON PIN (18MM)

$1.49

$

Usually ships in 3-6 days

0

6

Honda 13201-822-000

ROD, CONNECTING

$

$

Not available

9

Honda 13311-822-020

CRANKSHAFT, R.

$

$

Not available

10

Honda 13321-805-020

CRANKSHAFT, L.

$

$

Not available

11

Honda 13381-822-000

PIN, CRANKSHAFT

$

$

Not available

12

Honda 13491-701-000

RING, BALL BEARING SET (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 14311-865-633

GEAR, TIMING

$

$

Not available

17

Honda 90743-822-010

KEY, WOODRUFF (NOT AVAILABLE)

$

$

Not available

18

Honda 91001-822-000

BEARING, BALL (6304S) (NOT AVAILABLE)

$

$

Not available

19

Honda 91002-805-000

BEARING, RADIAL BALL (6206SHS) (NOT AVAILABLE)

$

$

Not available

20

Honda 91101-805-000

ROLLER, ROD (2.48X18.8)

$3.49

$

Usually ships in 3-6 days

0
