EG1500 A (G41) - Honda Generator, Made in Japan (SN: G41-1018501 - G41-1071999) EG1500 CONTROL BOX + GENERATOR Parts Diagram

Generator, Made in Japan

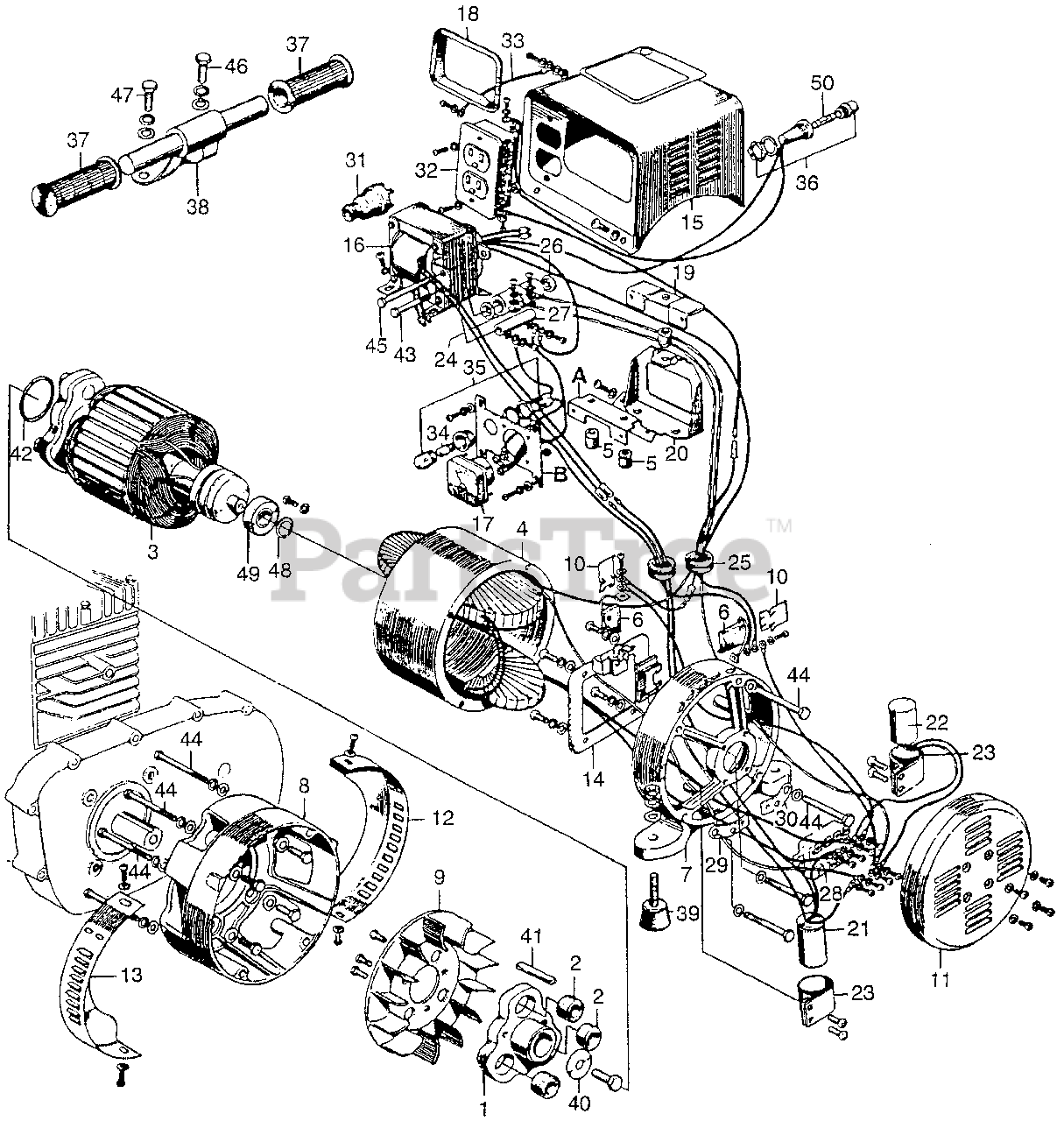

EG1500 CONTROL BOX + GENERATOR Parts Diagram

  • Title

1

Honda 13341-842-000

FLANGE, COUPLING A

$

$

Not available

2

Honda 13345-842-010

RUBBER, COUPLING

$

$

Not available

3

Honda 31104-842-672

ROTOR ASSY.

$

$

Not available

4

Honda 31105-851-158H

STATOR ASSY. *R8* (BRIGHT RED)

$

$

Not available

5

Honda 31107-830-168

RUBBER, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31107-842-168

BRUSH (NOT AVAILABLE)

$

$

Not available

7

Honda 31108-851-158

COVER, END

$

$

Not available

8

Honda 31109-851-158

COVER, FR.

$

$

Not available

9

Honda 31111-842-158

FAN, GENERATOR

$

$

Not available

10

Honda 31112-842-168

SPRING, BRUSH (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 31113-851-158H

COVER, CLEANER *R8* (BRIGHT RED)

$

$

Not available

12

Honda 31181-854-158H

PROTECTOR A, GENERATOR FAN *R8* (BRIGHT RED)

$

$

Not available

13

Honda 31182-854-158H

PROTECTOR B, GENERATOR FAN *R8* (BRIGHT RED)

$

$

Not available

14

Honda 31206-842-168

PLATE ASSY., RIG

$

$

Not available

15

Honda 31402-851-158H

PANEL, CONTROL *R8* (BRIGHT RED)

$

$

Not available

16

Honda 31403-851-671

TRANSFORMER, CURRENT

$

$

Not available

17

Honda 31411-846-158

VOLTMETER

$

$

Not available

18

Honda 31412-846-158

DAMPER

$

$

Not available

19

Honda 31420-842-158

PANEL, METER

$

$

Not available

20

Honda 31421-842-158

BASE, MOUNT

$

$

Not available

21

Honda 31426-842-158

CONDENSER A

$

$

Not available

22

Honda 31429-842-158

CONDENSER B

$

$

Not available

23

Honda 31430-842-158

HOLDER B

$

$

Not available

24

Honda 31452-851-671

RESISTOR, RF

$

$

Not available

25

Honda 31472-842-158

GROMMET, WIRE

$

$

Not available

26

Honda 31475-842-158

WASHER, RESISTOR

$

$

Not available

27

Honda 31478-851-158

RESISTOR, RP

$

$

Not available

28

Honda 31517-842-158

STACK, DIODE (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 31518-842-158

HOLDER, DIODE A

$

$

Not available

30

Honda 31519-842-158

HOLDER, DIODE B

$

$

Not available

31

Honda 32310-812-640

PLUG ASSY., RECEPTACLE

$8.99

$

Usually ships in 3-6 days

0

32

Honda 32330-846-158

RECEPTACLE

$

$

Not available

33

Honda 32601-842-158

WIRE, GROUND

$

$

Not available

34

Honda 34909-880-000

BULB (24V2W)

$8.49

$

Usually ships in 3-6 days

0

35

Honda 37561-815-158

SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)

$

$

Not available

36

Honda 38211-842-168

HOLDER, FUSE (NOT AVAILABLE)

$

$

Currently unavailable

37

Honda 95011-12200

SEE PART DETAILS - PRI; GRIP B, L. HANDLEBAR

$7.99

$

Usually ships in 3-6 days

0

38

Honda 68110-848-940

HANDLE, CARRYING

$

$

Not available

39

Honda 68311-842-000

RUBBER, GENERATOR (LOWER) (NOT AVAILABLE)

$

$

Not available

40

Honda 90473-842-000

WASHER (8MM)

$1.99

$

In Stock, only 4 left!

0

41

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

$9.49

$

Usually ships in 3-6 days

0

42

Honda 91301-428-003

O-RING (35.5X3) (NOK)

$2.99

$

In Stock, only 1 left!

0

43

Honda 92000-05055-0A

BOLT, HEX. (5X55) (NOT AVAILABLE)

$

$

Currently unavailable

44

Honda 92101-06055-0A

BOLT, HEX. (6X55)

$2.99

$

Usually ships in 3-6 days

0

45

Honda 92000-06085

BOLT, HEX. (6X82) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

46

Honda 92101-08014-0A

BOLT, HEX. (8X14)

$2.49

$

Usually ships in 3-6 days

0

47

Honda 92101-08022-0A

BOLT, HEX. (8X22)

$

$

Currently unavailable

48

Honda 94510-17000

CIRCLIP (OUTER) (17MM)

$1.99

$

Usually ships in 3-6 days

0

49

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0

50

Honda 98200-11500

FUSE A (15A)

$1.49

$

Usually ships in 3-6 days

0
