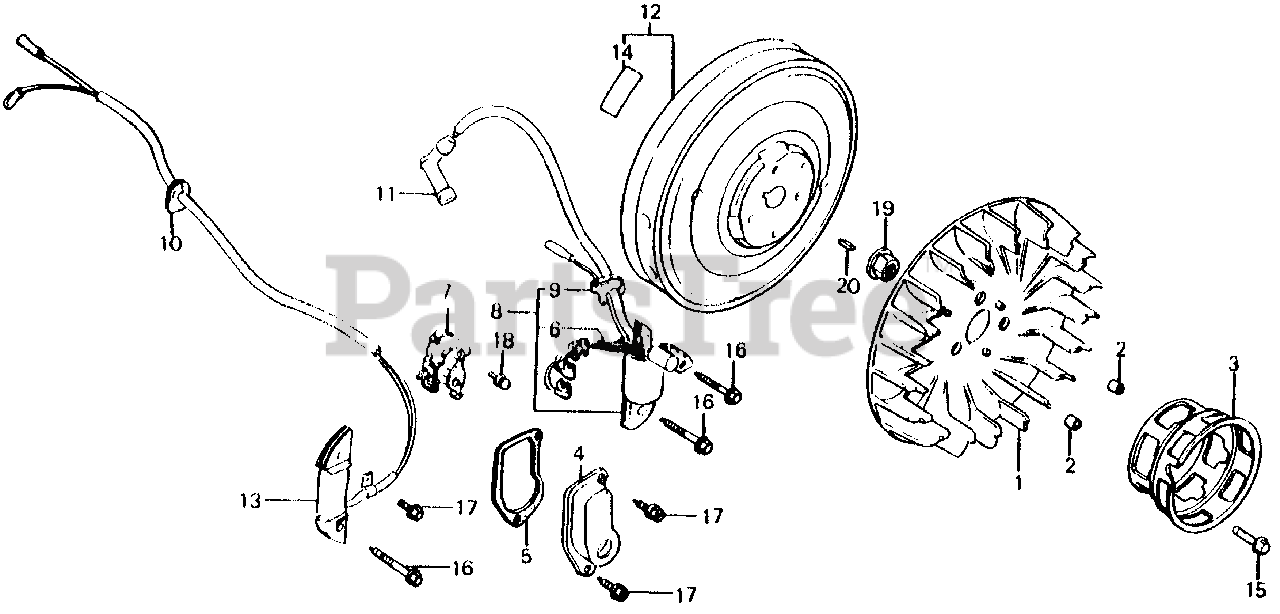

EG1400Z A (GE150) - Honda Generator, Made in Japan (SN: GE150-1000001 - GE150-9999999) FLYWHEEL + POINTS Parts Diagram

Generator, Made in Japan

FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19511-887-020

SEE PART DETAILS - SUP; FAN, COOLING

$

$

Not available

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-ZA3-000

PULLEY, STARTER

$

$

Not available

4

Honda 30211-883-000

COVER, POINTS

$

$

Not available

5

Honda 30215-883-306

GASKET, POINT COVER

$

$

Not available

6

Honda 30251-883-003

CONDENSER

$22.99

$

In Stock, only 1 left!

0

7

Honda 30280-883-005

POINTS ASSY.

$35.99

$

Usually ships in 3-6 days

0

8

Honda 30560-ZA3-003

COIL ASSY., IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 30563-883-770

GROMMET, WIRE

$

$

Currently unavailable

10

Honda 30564-ZA5-000

GROMMET, WIRE

$6.99

$

Usually ships in 3-6 days

0

11

Honda 30700-865-013

CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

12

Honda 31100-887-770

FLYWHEEL (POINT)

$

$

Not available

13

Honda 31511-ZA5-003

COIL ASSY., BACK-UP

$

$

Not available

14

Honda 87541-896-000

MARK, FLYWHEEL CAUTION

$

$

Not available

15

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

16

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

17

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$7.99

$

In Stock, only 1 left!

0

20

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18)

$1.99

$

In Stock, Qty 12

0
